Antec Flux Pro Noctua Edition

非常静音的电脑机箱

屡获殊荣的型号

以其卓越的通风性能而出名

非常静音的 Noctua 版

升级为 NF-A14x25 G2 和 NF-A12x25 G2 风扇

Noctua 标志性配色

独特的棕色面板和金属网孔设计

概述
规格参数
功能特性
评论
下载
购买
Key specifications
Dimensions
245x546x530 mm
Motherboard form factors
STX, Mini-ITX, µATX, ATX, E-ATX
Max. CPU cooler height
190 mm
Max. PSU length without HDD
470 mm
Max. video card (GPU) length
455 mm
Weight (with fans)
13.75 kg
Fan configuration
  • 3x NF-A14x25 G2 PWM (front intake)
  • 2x NF-A12x25 G2 PWM (PSU shroud intake)
  • 1x NF-A14x25 G2 PWM (rear exhaust)
Supported radiator sizes
  • Front: 120/​140/​240/​280/​360/​420 mm
  • Top: 120/​140/​240/​280/​360/​420 mm
  • Rear: 120/​140 mm
  • Bottom: 120/​240 mm
  • PSU cover: 120/​240/​360 mm
Colour
Black, Brown
Warranty
6 years
供货清单
  • 安泰克（Antec）Flux Pro Noctua版机箱
  • NA-FH1 风扇集线集
  • 4x NA-EC1 30cm 延长线
  • 2x NA-EC3 60cm 延长线
  • 2x NF-A14x25 G2 PWM PPA
  • 2x NF-A14x25 G2 PWM PPB
  • 1x NF-A12x25 G2 PWM PPA
  • 1x NF-A12x25 G2 PWM PPB
  • 36x NA-AV4 防振支架
  • 36x NM-SFS1 风扇螺丝
  • 1x NP-KC1 钥匙扣
信息图

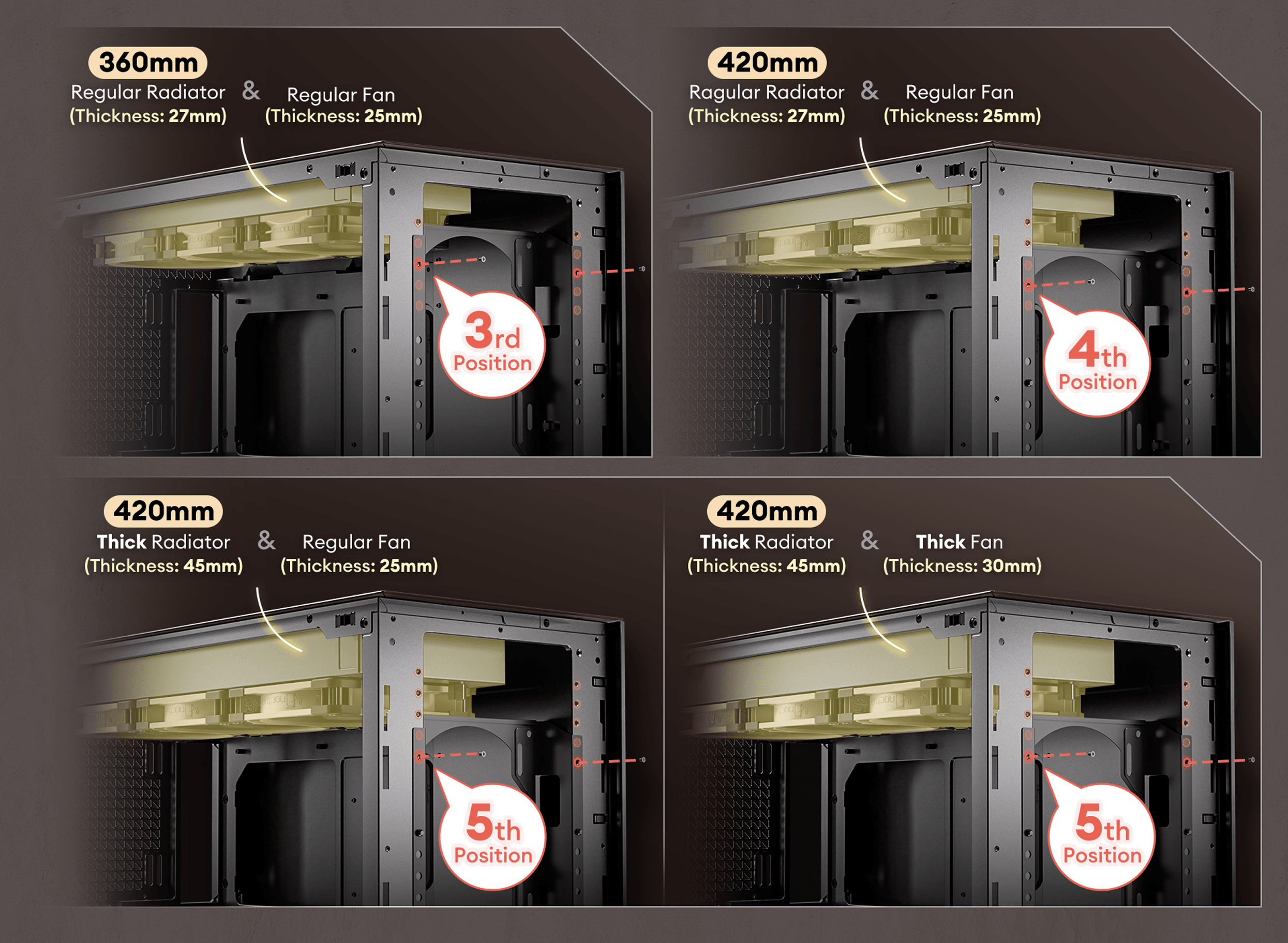

Four-panel clearance diagram for the Antec Flux Pro showing radiator and fan thickness combinations and the required mounting positions. A 360mm radiator with 27mm thickness and 25mm fans uses the 3rd position. A 420mm radiator with 27mm thickness and 25mm fans uses the 4th position. A 420mm radiator with 45mm thickness and 25mm fans uses the 5th position. A 420mm radiator with 45mm thickness and 30mm fans also uses the 5th position.

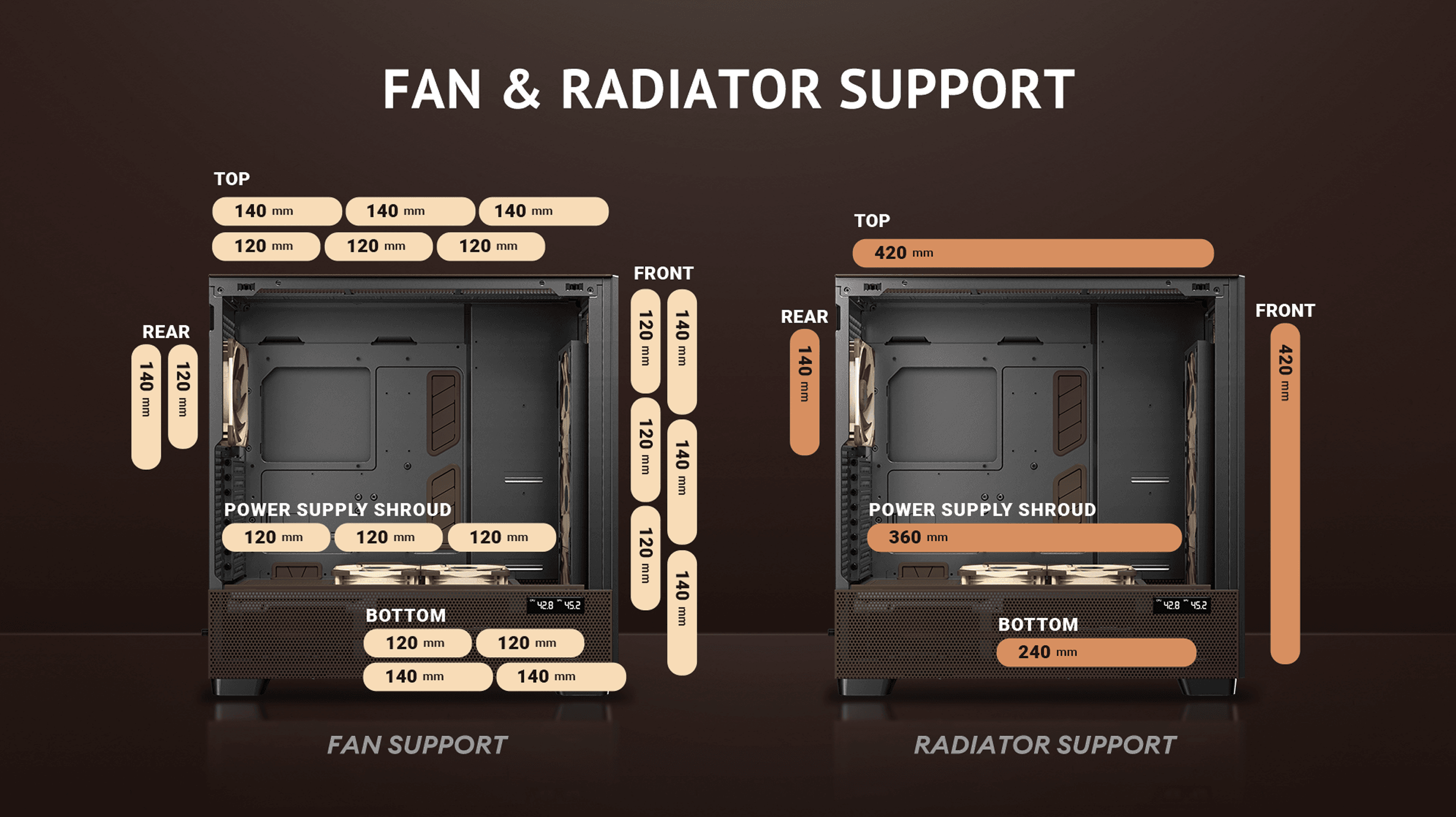

Interior view diagram of the Antec Flux Pro PC case showing fan and radiator support by mounting position. Fan support: top supports 3x140mm or 3x120mm, front supports 3x140mm or 3x120mm, rear supports 1x140mm or 1x120mm, power supply shroud supports 3x120mm, and bottom supports 2x140mm or 2x120mm. Radiator support: top supports up to 420mm, front up to 420mm, rear 140mm, power supply shroud 360mm, and bottom 240mm.

扩展规格

Dimensions & weight
Form factor
Full tower
Volume
70.77 l
Width
245 mm
Height (with feet)
546 mm
Height (without feet)
523 mm
Depth
530 mm
Dimensions
245x546x530 mm
Weight (with fans)
13.75 kg
Weight (without fans)
12.46 kg
Materials
Frame
  • Steel 1 mm
Side panel
  • Tempered glass 4 mm
  • Mesh 1 mm
Front panel
  • FSC certified walnut wood
  • Steel mesh
  • Plastic
Grommets
  • Silicone
Compatibility & clearance
Max. CPU cooler height
190 mm
CPU cooler compatibility
Max. video card (GPU) length
455 mm
Motherboard form factors
STX, Mini-ITX, µATX, ATX, E-ATX
Max. motherboard width
285 mm
Max. PSU length with HDD
300 mm
Max. PSU length without HDD
470 mm
Max. PSU length @ 90° rotated
180 mm
Cable routing space
32.5 mm
Features
Dust filter
Display with Antec iUnity
Reverse connector motherboard support
Vertical GPU mounting
Removable fan/radiator brackets
Cable management ties
Modular hard drive cages
Drive bays & PCI slots
PCI slots
8
Combined 3.5" / 2.5” drive bays
4
Dedicated 2.5" drive bays
2
I/O panel
Connectors
  • 1x USB-C 3.1 (10 Gbit/s)
  • 2x USB-A 3.0 (5 Gbit/s)
  • 3.5 mm headphone/mic combo jack
Buttons
  • Power button
  • Reset button
  • Temperature & display switch
Radiator support
Radiator support
Interior view diagram of the Antec Flux Pro PC case showing fan and radiator support by mounting position. Fan support: top supports 3x140mm or 3x120mm, front supports 3x140mm or 3x120mm, rear supports 1x140mm or 1x120mm, power supply shroud supports 3x120mm, and bottom supports 2x140mm or 2x120mm. Radiator support: top supports up to 420mm, front up to 420mm, rear 140mm, power supply shroud 360mm, and bottom 240mm.
360/420 mm compatibility details
Four-panel clearance diagram for the Antec Flux Pro showing radiator and fan thickness combinations and the required mounting positions. A 360mm radiator with 27mm thickness and 25mm fans uses the 3rd position. A 420mm radiator with 27mm thickness and 25mm fans uses the 4th position. A 420mm radiator with 45mm thickness and 25mm fans uses the 5th position. A 420mm radiator with 45mm thickness and 30mm fans also uses the 5th position.
Front mounted
120 mm, 140 mm, 240 mm, 280 mm, 360 mm, 420 mm
Max. front mounted radiator stack thickness
90 mm
Top mounted
120 mm, 140 mm, 240 mm, 280 mm, 360 mm, 420 mm
Max. top mounted radiator stack thickness
75 mm
Rear mounted
120 mm, 140 mm
Bottom mounted
120 mm, 240 mm
PSU cover mounted
120 mm, 240 mm, 360 mm
Fan support
Fan configuration
  • 3x NF-A14x25 G2 PWM (front intake)
  • 2x NF-A12x25 G2 PWM (PSU shroud intake)
  • 1x NF-A14x25 G2 PWM (rear exhaust)
Fan support
Interior view diagram of the Antec Flux Pro PC case showing fan and radiator support by mounting position. Fan support: top supports 3x140mm or 3x120mm, front supports 3x140mm or 3x120mm, rear supports 1x140mm or 1x120mm, power supply shroud supports 3x120mm, and bottom supports 2x140mm or 2x120mm. Radiator support: top supports up to 420mm, front up to 420mm, rear 140mm, power supply shroud 360mm, and bottom 240mm.
Front
3x 140 mm, 3x 120 mm
Top
3x 140 mm, 3x 120 mm
Rear
1x 140 mm, 1x 120 mm
Bottom
2x 140 mm, 2x 120 mm
PSU cover
3x 120 mm
Fan: NF-A14x25 G2 PWM
Size (Form factor)
140 x 140 x 25 mm (square)
Speed range
0 – 1500 rpm
Airflow (max.)
155.6 m³/h (91.58 CFM)
Acoustical noise (max.)
24.8 dB(A)
Static pressure (max.)
2.56 mm H₂O
Rated voltage
12 V
Connector
4-pin
Colour
Brown
Warranty
6 years
Fan: NF-A12x25 G2 PWM
Size (Form factor)
120 x 120 x 25 mm (square)
Speed range
0 – 1800 rpm
Airflow (max.)
107.3 m³/h (63.15 CFM)
Acoustical noise (max.)
22.5 dB(A)
Static pressure (max.)
3.14 mm H₂O
Rated voltage
12 V
Connector
4-pin
Colour
Brown
Warranty
6 years
Fan hub: NA-FH1
Colour
Black
Input connector
S-ATA, 4-pin PWM
Fan connector
4-pin PWM
Max. power via S-ATA input
54 W
Max. power via 4-pin PWM input
24 W
Operating voltage
5 - 12 V
Size

93 x 43 x 12.5 mm

Weight
31 g
Fan compatibility

All Noctua 12V and 5V fans, many third party fans

Warranty
6 years
Logistical specifications
Packaging dimensions
640 x 352 x 653 mm
Packaging weight (including product)
17.7 kg
EAN
9010018900330
UPC
841501190339
