What pin configuration do Noctua fans use?

Can Noctua fans be used with only + and GND connected?

All Noctua fans can also be used when only + and GND are connected. The fan will then run at full speed.
Please note that modifications to our fans such as cutting the cables of a fan can void the fan’s warranty. This also includes out-of-specification use, such as reverse voltage. Further information on this is available in our warranty terms and conditions.

What pin-configuration do Noctua products use?

All Noctua 24V, 12V and 5V fans, fan controllers, cables and other accessories such as Low-Noise Adaptors use the same standard pin-assignment that has been specified by Intel and AMD.

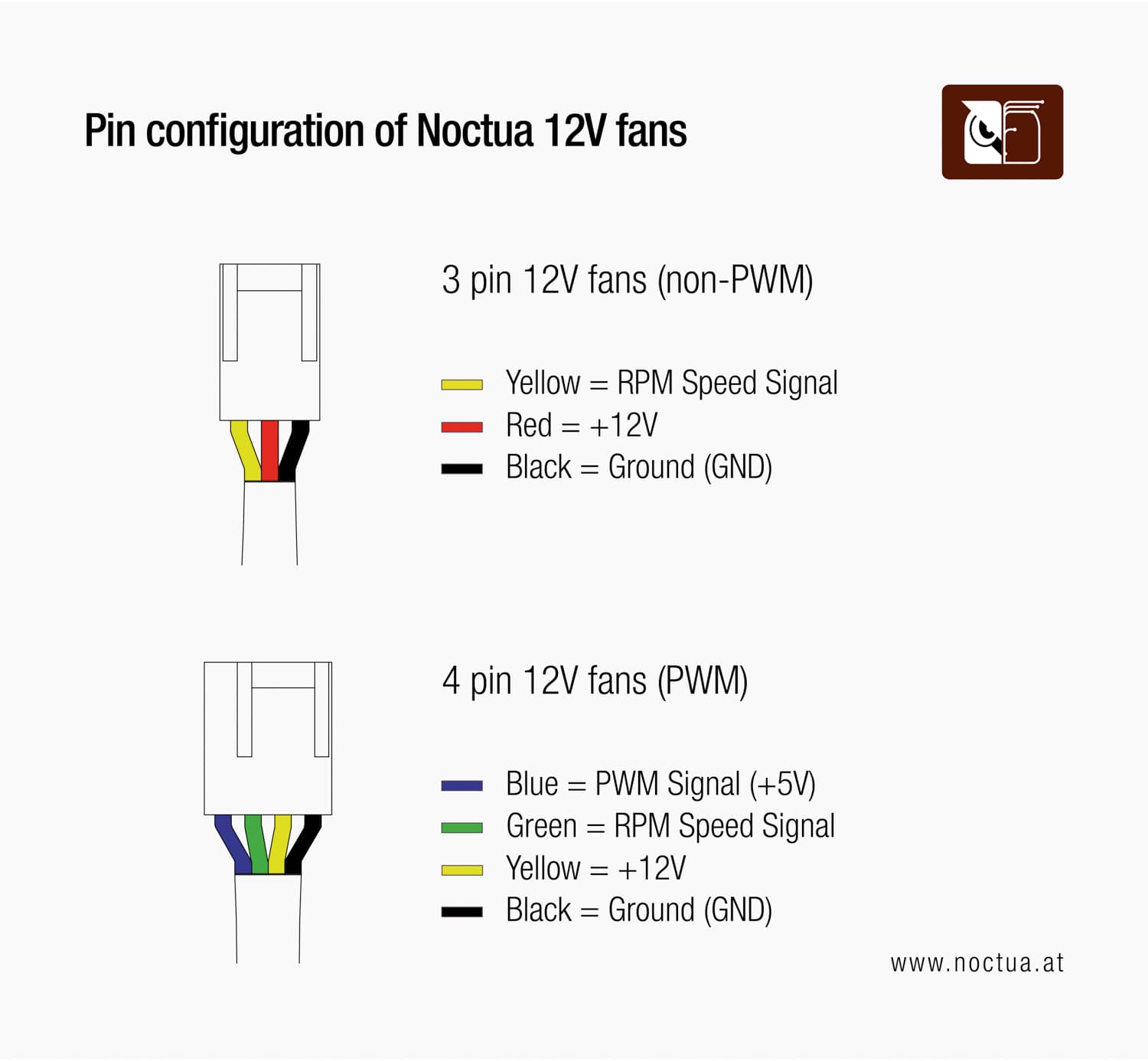

Illustration of the pin configuration with the following text.: 3 pin 12V fans (non-PWM): Yellow = RPM Speed Signal, Red = +12V, Black = Ground (GND); 4 pin 12V fans (PWM): Blue = PWM Signal (+5V), Green = RPM Speed Signal; Yellow = +12V, Black = Ground (GND)

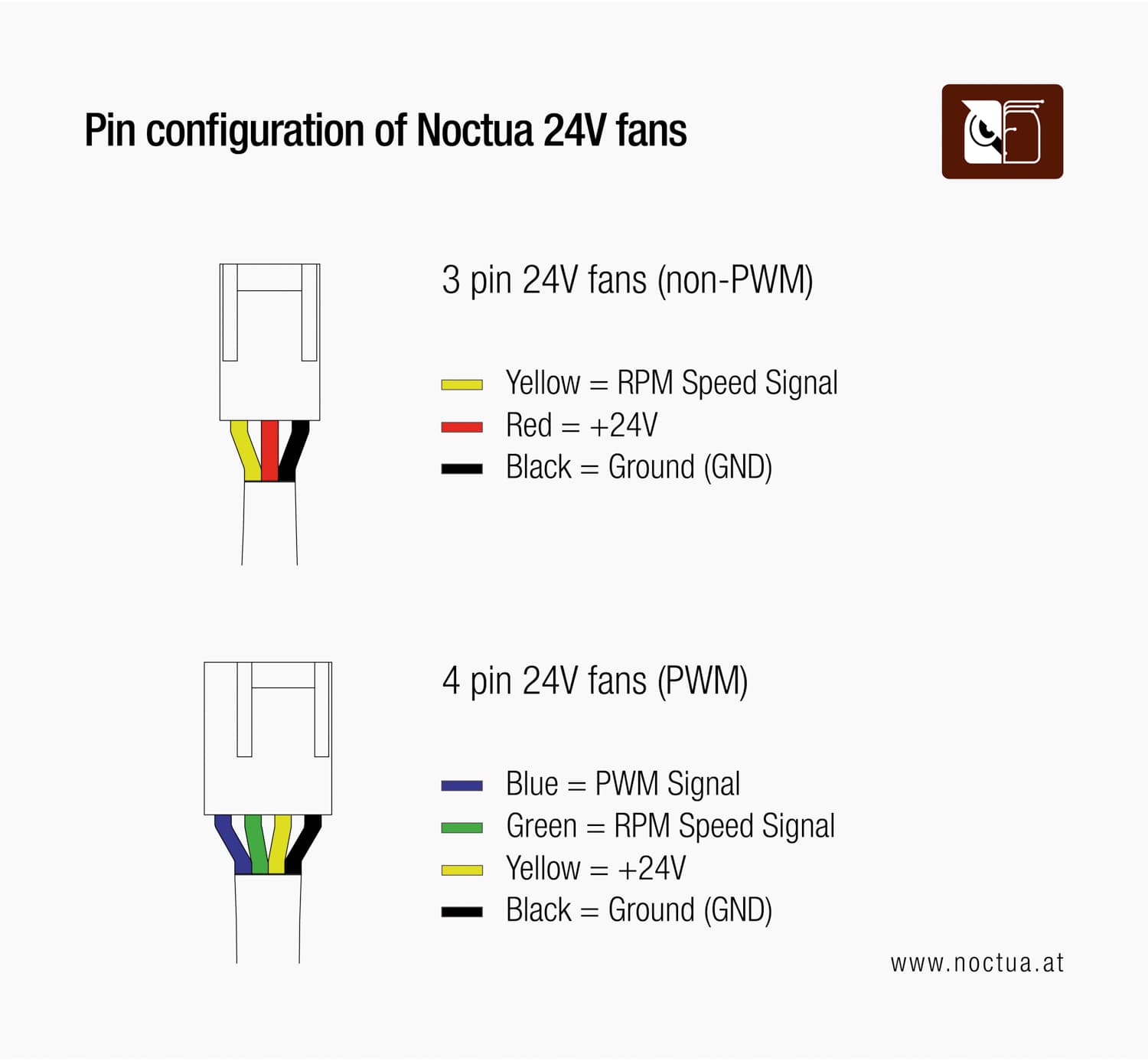

Diagram showing the pin configuration for Noctua 24V fans. The 3-pin fan has yellow (RPM speed signal), red (+24V), and black (ground) wires. The 4-pin PWM fan has blue (PWM signal), green (RPM speed signal), yellow (+24V), and black (ground) wires.

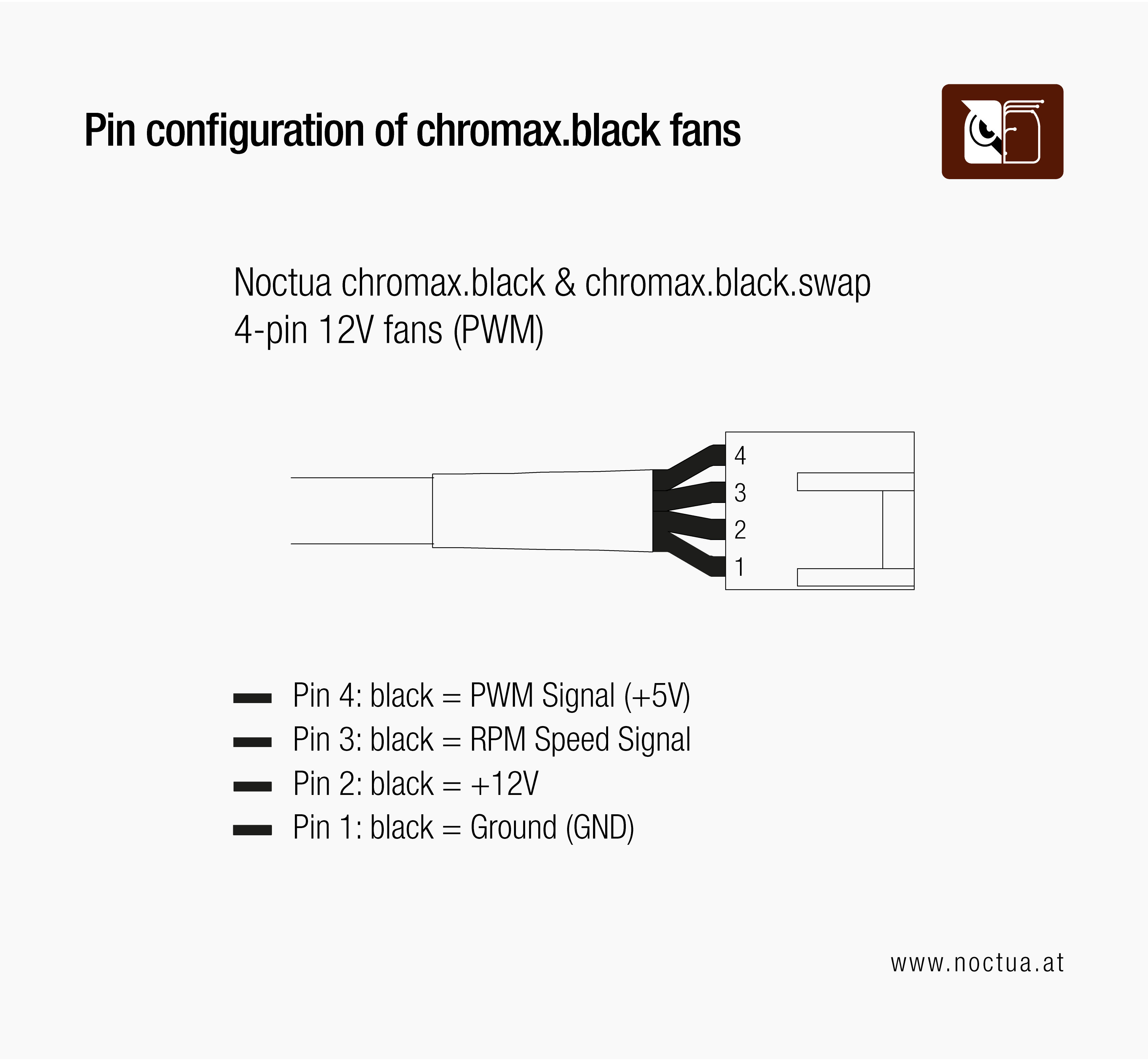

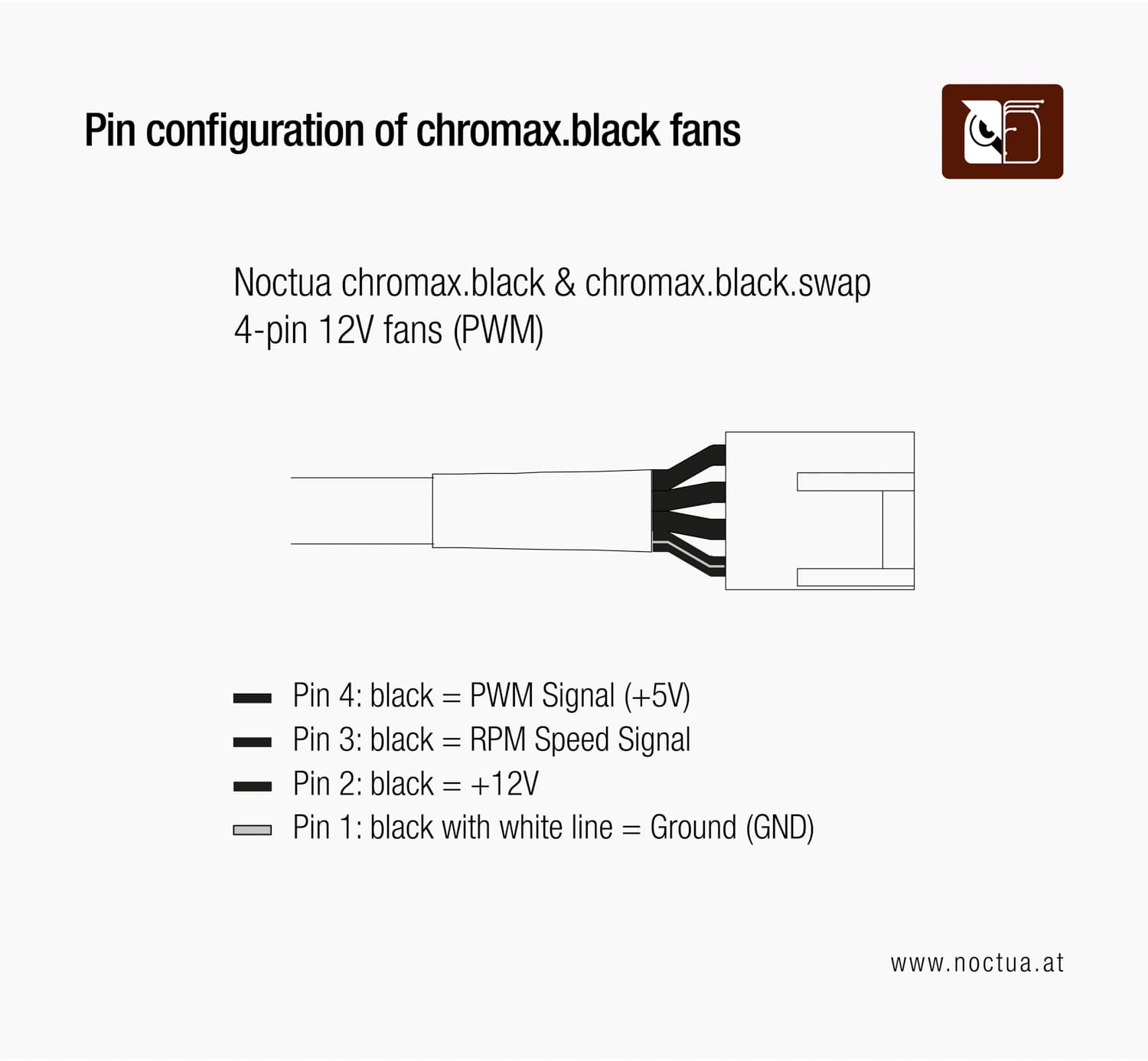

Diagram showing the pin configuration for Noctua chromax.black and chromax.black.swap 4-pin 12V PWM fans. All wires are black, with functions distinguished by position: Pin 4 = PWM signal (+5V), Pin 3 = RPM speed signal, Pin 2 = +12V, and Pin 1 = ground (black wire with white line).

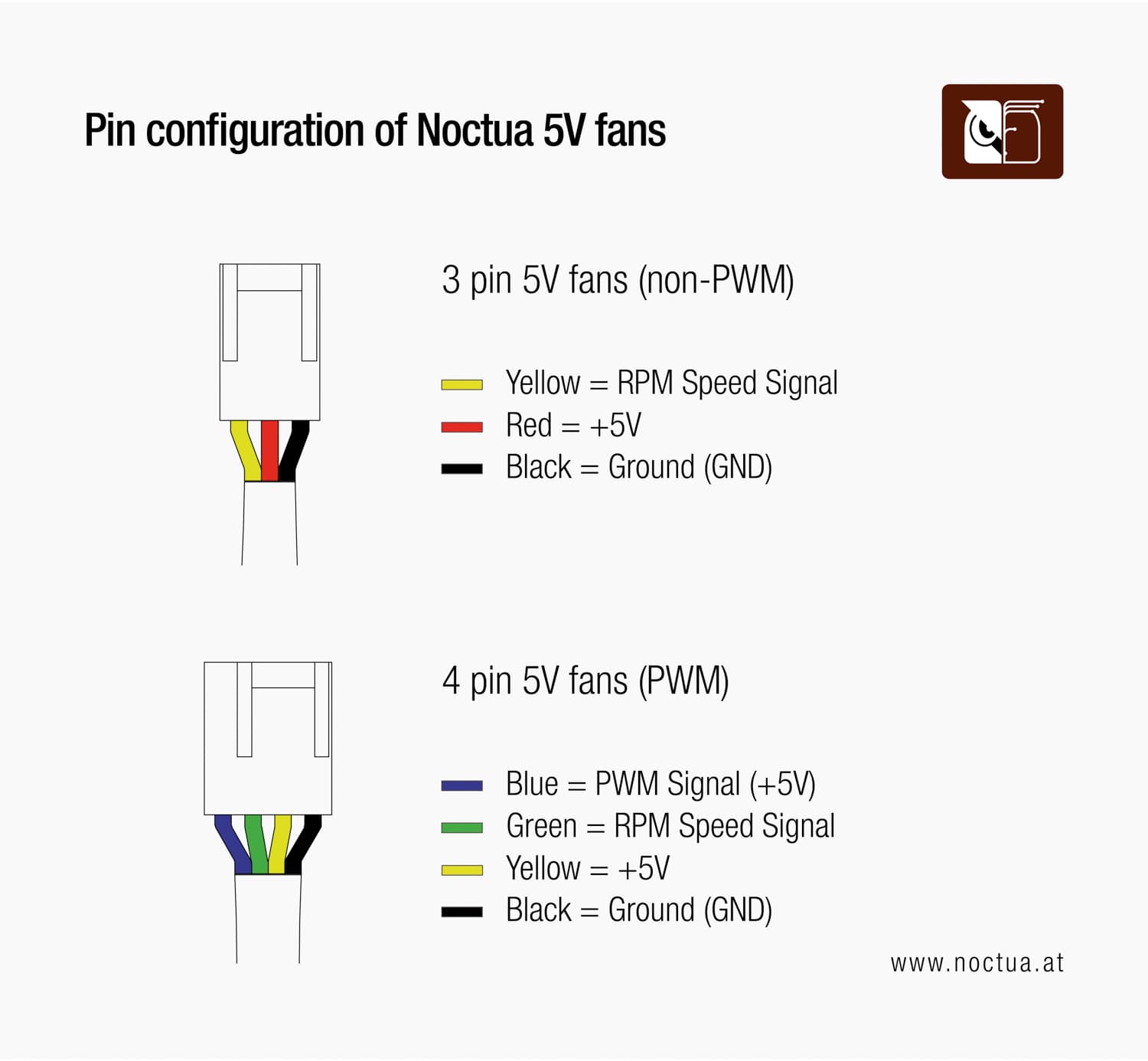

Diagram showing the pin configuration for Noctua 5V fans. The 3-pin fan uses yellow (RPM signal), red (+5V), and black (ground) wires. The 4-pin PWM fan uses blue (PWM signal), green (RPM speed signal), yellow (+5V), and black (ground) wires.

If you are looking for information regarding the implementation of PWM (Pulse Width Modulation) speed control in Noctua 4-pin PWM fans, please see our PWM specification white paper.
