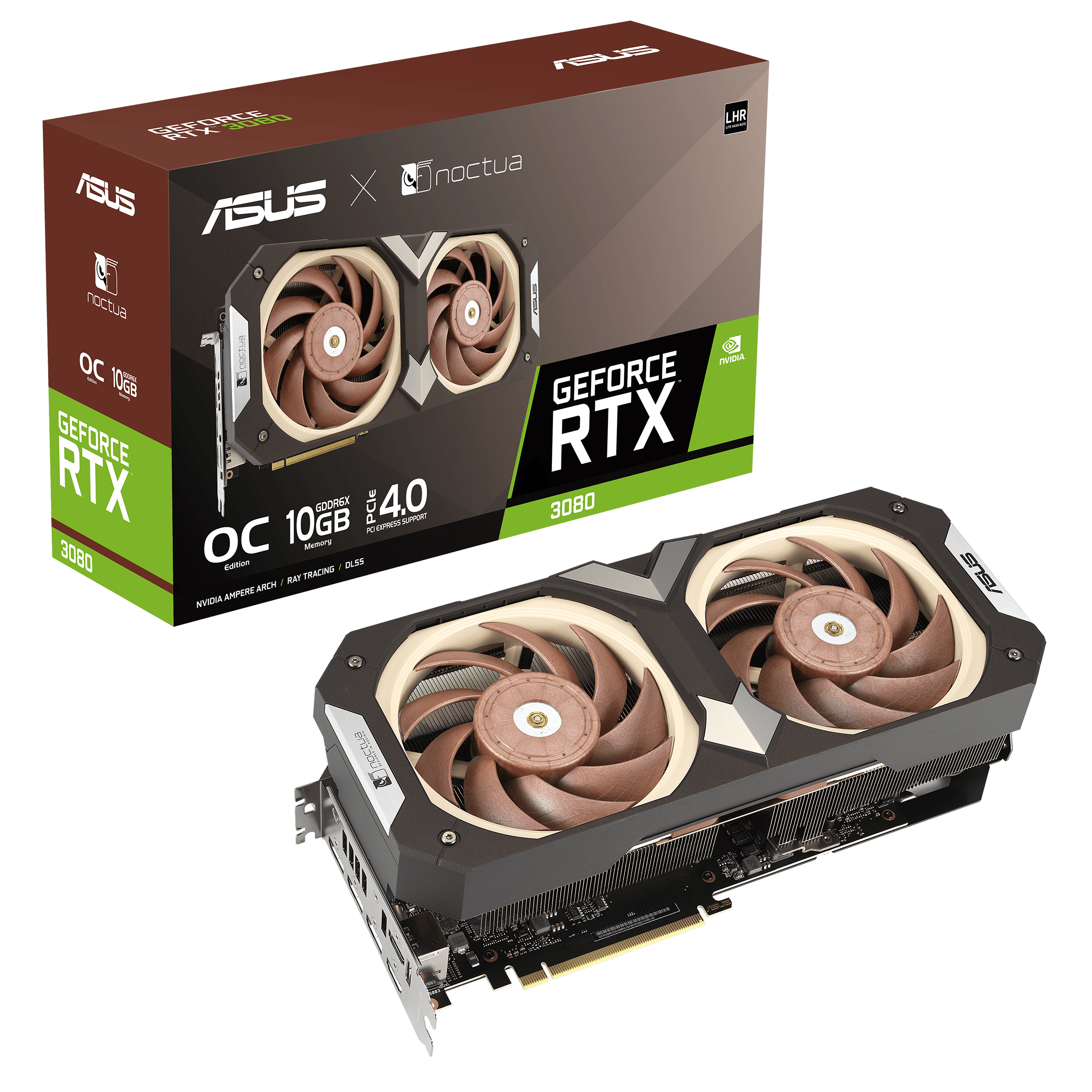

ASUS GeForce RTX 3080 Noctua Edition

Graphics card

Improved thermals and acoustics

The Noctua Edition is the quietest graphics card in its class

Custom heatsink design

Tailor-made for the performance characteristics of the NF-A12x25 fans

Dual NF-A12x25 PWM fans

Deliver exceptional cooling and low noise

Overview
Specifications
Reviews
Key specifications
NVIDIA GPU model name
NVIDIA GeForce RTX 3080
Memory
10 GB GDDR6X, 320 bit, 1188 MHz, 760 Gbps
Clock speeds
1440 - 1815 MHz
Dimensions
310 x 144.8 x 87.5 mm
Fan configuration
2x NF-A12x25 PWM
0 dB(A) mode up until
50 °C
Power connection
2x 8-pin PCIe
Output connectors
2x HDMI 2.1, 3x DisplayPort 1.4a
Interface
PCIe 4.0 x16
Total height
5 slot
Warranty
3 years
Scope of delivery

Extended specifications

GPU specifications
NVIDIA GPU model name
NVIDIA GeForce RTX 3080
Memory capacity
10 GB
Memory type
GDDR6X
Memory bus
320 bit
TDP/TGP
320 W
Architecture
Ampere
Chip name
GA102 (GA102-200-KD-A1)
CUDA cores
8704
TMUs
272
ROPs
96
Raytracing cores
68 cores
Tensor cores
272 cores
L2 cache
5 MiB
Chip manufacturing node
Samsung 8nm
Chip size
628 mm²
Transistors
28.3 billion
Raytracing
2nd gen NVIDIA RTX
NVIDIA Tensor
3rd gen, 238 TOPS
HDCP version
2.3
API support
DirectX 12 Ultimate (12_2), CUDA 8.6, Vulkan 1.3, OpenCL 3.0, OpenGL 4.6, Shader Model 6.7
Transcoding-Engine
1x NVENC (7th Gen, max. Sessions: 8), 1x NVDEC (5th Gen)
Encoding
  • H.264 (YUV 4:2:0 /​ YUV 4:4:4 /​ Lossless)
  • H.265 (4K YUV 4:2:0 /​ 4K YUV 4:4:4 /​ 4K Lossless /​ 8K /​ HEVC 10bit support /​ HEVC B Frame support)
Decoding
  • AV1 (8bit /​ 10bit)
  • H.264 (8bit 4:2:0)
  • H.265 (8bit 4:2:0 /​ 10bit 4:2:0 /​ 12bit 4:2:0 /​ 8bit 4:4:4 /​ 10bit 4:4:4 /​ 12bit 4:4:4)
  • VP8
  • VP9 (8bit /​ 10bit /​ 12bit)
  • VC-1
  • MPEG-1
  • MPEG-2
Max. resolution
7680 x 4320 px
Maximum display support
4
Fan: NF-A12x25 PWM
Size (Form factor)
120 x 120 x 25 mm (square)
Speed range
0 – 2000 rpm
Airflow (max.)
102.1 m³/h (60.09 CFM)
Acoustical noise (max.)
22.6 dB(A)
Static pressure (max.)
2.34 mm H₂O
Rated voltage
12 V
Input power (typical)
1.2 W
Connector
4-pin
Colour
Brown
Warranty
6 years
Performance specifications
Base clock speeds
1440 MHz
Turbo clock speeds (Base profile)
1785 MHz
Turbo clock speeds (OC profile)
1815 MHz
Memory frequency
1188 MHz
Memory speed
760 Gbps
AI-computing power (dense)
238 TOPS (FP16)
AI-computing power (sparse)
476 TOPS (FP16)
GPU-computing power
31.60 TFLOPS (FP16), 31.60 TFLOPS (FP32), 0.49 TFLOPS (FP64)
0 dB(A) mode up until
50 °C
Mechanical specifications
Power connection
2x 8-pin PCIe
Output connectors
2x HDMI 2.1, 3x DisplayPort 1.4a
Interface
PCIe 4.0 x16
Dimensions
310 x 144.8 x 87.5 mm
Total height
5 slot
Fan configuration
2x NF-A12x25 PWM
Logistical specifications
EAN
4711081800729
UPC
195553800730
