Discontinued

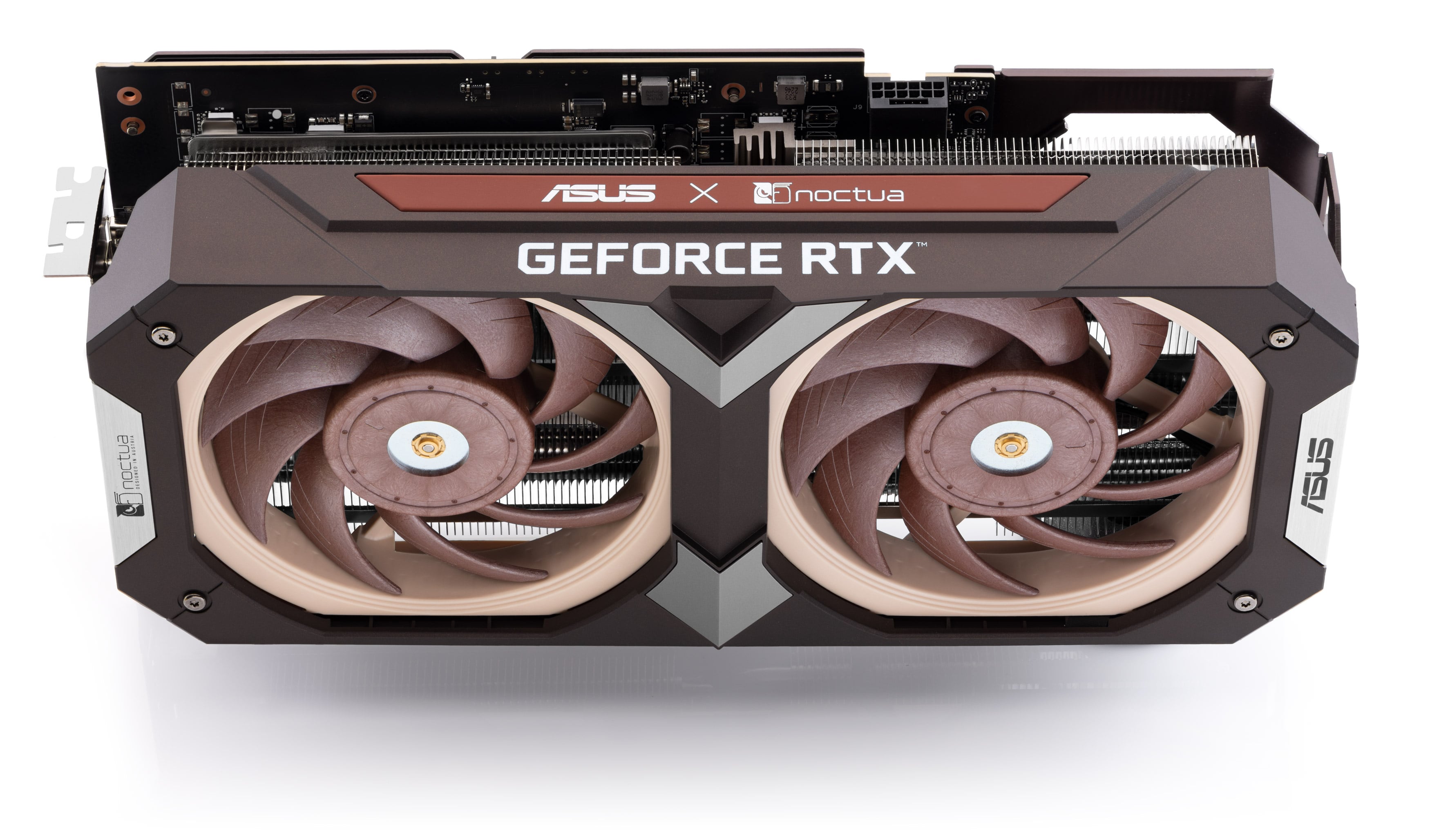

ASUS GeForce RTX 4080 Noctua Edition

Graphics card

Improved thermals and acoustics

The Noctua Edition is the quietest graphics card in its class

Tailor-made heatsink

Optimized vapour chamber efficiently wicks heat into a large fin array

Dual NF-A12x25 PWM fans

Deliver exceptional cooling and low noise

Overview
Specifications
Reviews
Buy
Key specifications
NVIDIA GPU model name
NVIDIA GeForce RTX 4080
Memory
16 GB GDDR6X, 256 bit, 1400 MHz, 717 Gbps
Clock speeds
2205 - 2625 MHz
Dimensions
310 x 144.8 x 87.5 mm
Fan configuration
2x NF-A12x25 PWM
0 dB(A) mode up until
50 °C
Power connection
1x 12VHPWR (with adaptor: 3x 8-Pin PCIe)
Output connectors
2x HDMI 2.1a, 3x DisplayPort 1.4a
Interface
PCIe 4.0 x16
Total height
5 slot
Warranty
3 years
Scope of delivery

Extended specifications

GPU specifications
NVIDIA GPU model name
NVIDIA GeForce RTX 4080
Memory capacity
16 GB
Memory type
GDDR6X
Memory bus
256 bit
TDP/TGP
320 W
Architecture
Ada Lovelace
Chip name
AD103 (AD103-300-A1/​AD103-301-A1)
CUDA cores
9728
TMUs
304
ROPs
112
Raytracing cores
76 cores
Tensor cores
304 cores
L2 cache
64 MiB
Chip manufacturing node
TSMC N5P [NVIDIA 4N]
Chip size
379 mm²
Transistors
45.9 billion
Raytracing
3rd gen NVIDIA RTX
NVIDIA Tensor
4th gen, 390 TOPS
HDCP version
2.3
API support
DirectX 12 Ultimate (12_2), CUDA 8.9, Vulkan 1.3, OpenCL 3.0, OpenGL 4.6, Shader Model 6.7
Transcoding-Engine
2x NVENC (8th Gen, max. Sessions: 8), 1x NVDEC (5th Gen)
Encoding
  • AV1 (YUV 4:2:0)
  • H.264 (YUV 4:2:0 /​ YUV 4:4:4 /​ Lossless)
  • H.265 (4K YUV 4:2:0 /​ 4K YUV 4:4:4 /​ 4K Lossless /​ 8K /​ HEVC 10bit support /​ HEVC B Frame support)
Decoding
  • AV1 (8bit /​ 10bit)
  • H.264 (8bit 4:2:0)
  • H.265 (8bit 4:2:0 /​ 10bit 4:2:0 /​ 12bit 4:2:0 /​ 8bit 4:4:4 /​ 10bit 4:4:4 /​ 12bit 4:4:4)
  • VP8
  • VP9 (8bit /​ 10bit /​ 12bit)
  • VC-1
  • MPEG-1
  • MPEG-2
Max. resolution
7680 x 4320 px
Maximum display support
4
Fan: NF-A12x25 PWM
Size (Form factor)
120 x 120 x 25 mm (square)
Speed range
0 – 2000 rpm
Airflow (max.)
102.1 m³/h (60.09 CFM)
Acoustical noise (max.)
22.6 dB(A)
Static pressure (max.)
2.34 mm H₂O
Rated voltage
12 V
Input power (typical)
1.2 W
Connector
4-pin
Colour
Brown
Warranty
6 years
Performance specifications
Base clock speeds
2205 MHz
Turbo clock speeds (Base profile)
2595 MHz
Turbo clock speeds (OC profile)
2625 MHz
Memory frequency
1400 MHz
Memory speed
717 Gbps
AI-computing power (dense)
780 TOPS (FP8), 390 TOPS (FP16)
AI-computing power (sparse)
1560 TOPS (FP8), 780 TOPS (FP16)
GPU-computing power
51.07 TFLOPS (FP16), 51.07 TFLOPS (FP32), 0.80 TFLOPS (FP64)
0 dB(A) mode up until
50 °C
Mechanical specifications
Power connection
1x 12VHPWR (with adaptor: 3x 8-Pin PCIe)
Output connectors
2x HDMI 2.1a, 3x DisplayPort 1.4a
Interface
PCIe 4.0 x16
Dimensions
310 x 144.8 x 87.5 mm
Total height
5 slot
Fan configuration
2x NF-A12x25 PWM
Logistical specifications
EAN
4711387113226
