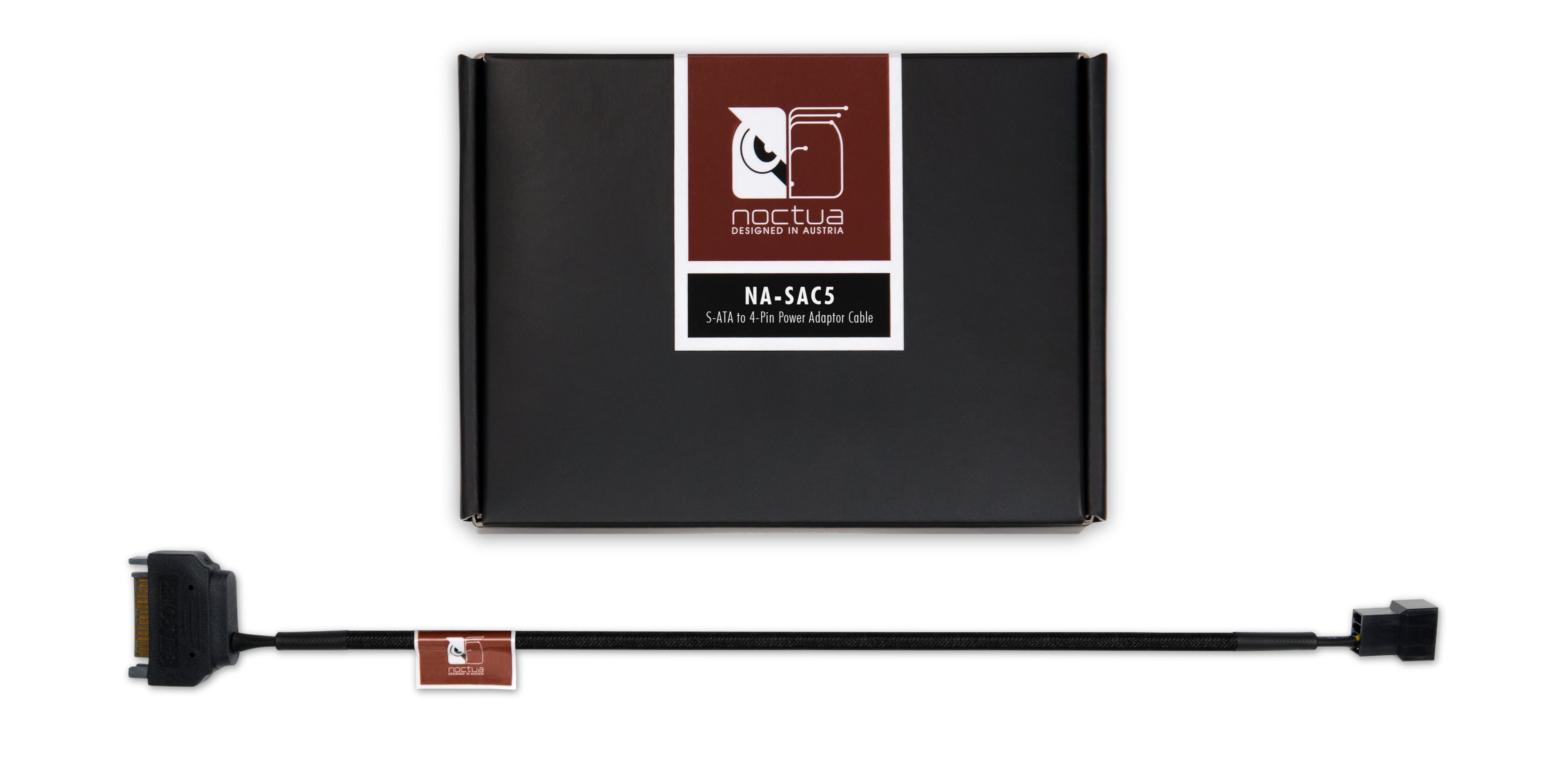

NA-SAC5

Adaptor cable

S-ATA to 4-pin power adaptor

To power fans directly from the power supply’s S-ATA connectors

4-pin connector

Supports both 3-pin and 4-pin PWM fans

High-quality black sleeving

Highly resistant against mechanical wear, heat and flames (UL 94 V-0 classification)

Key specifications
Fan connector
4-pin PWM
Pin configuration
Illustration of the pin configuration with the following text.: 3 pin 12V fans (non-PWM): Yellow = RPM Speed Signal, Red = +12V, Black = Ground (GND); 4 pin 12V fans (PWM): Blue = PWM Signal (+5V), Green = RPM Speed Signal; Yellow = +12V, Black = Ground (GND)
Input connector
S-ATA
Cable length
262 mm
Colour
Black
Warranty
6 years
Scope of delivery
  • 1x NA-AC5 S-ATA to 4-pin power adaptor cable for fans

Extended specifications

Logistical specifications
Packaging dimensions
150 x 111 x 29 mm
Packaging weight (including product)
57 g
EAN
9010018200263
UPC
841501120268
Packaging unit
40 pcs
Packaging unit dimensions
320 x 320 x 240 mm
Packaging unit weight
2.95 kg
