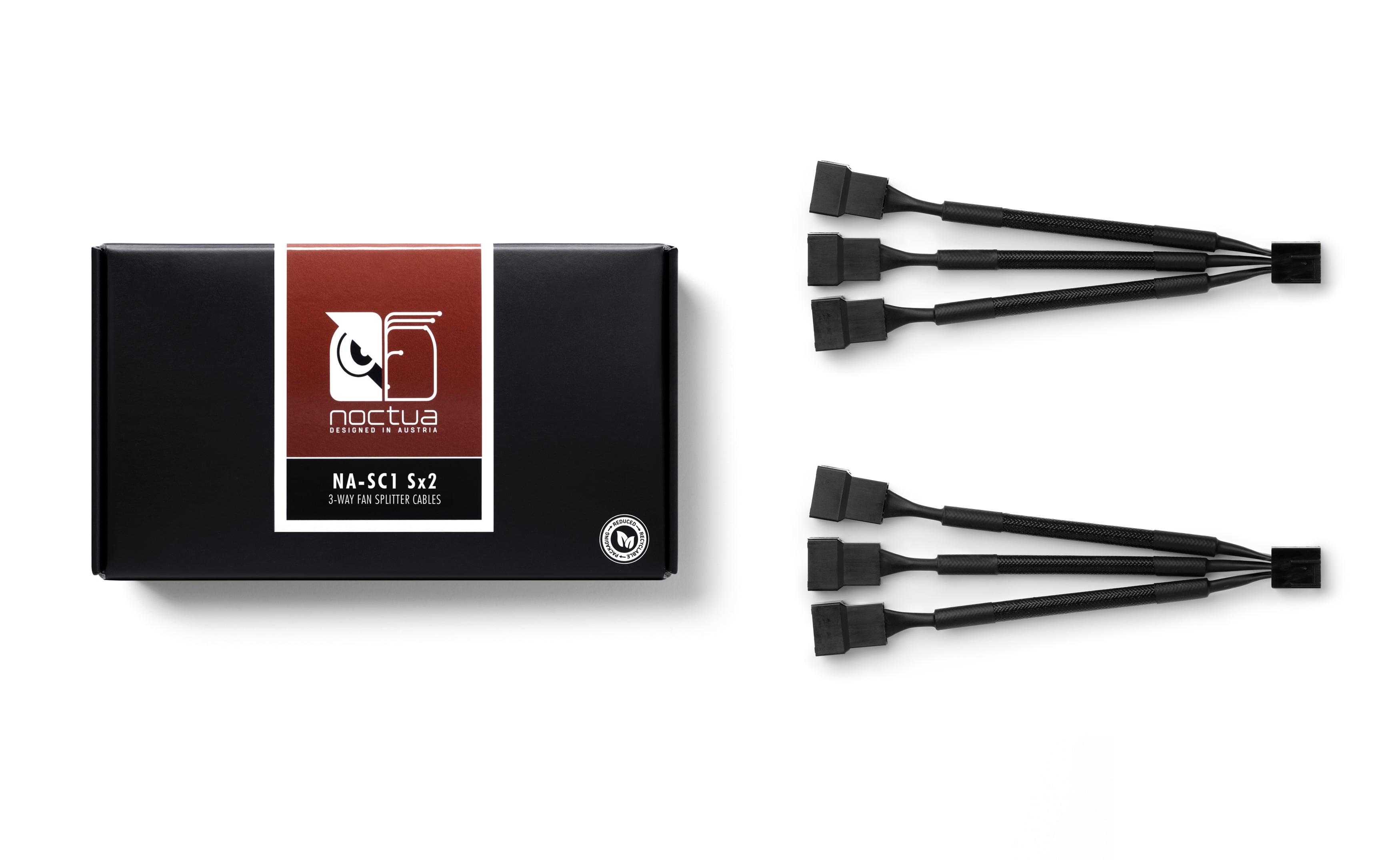

NA-SC1 Sx2

3-way fan splitter cables

3-way splitters

For powering and speed-controlling three fans through a single fan header

4-pin connector

Supports both 3-pin and 4-pin PWM fans

PWM control and RPM monitoring

Forwards the PWM signal for speed control to all 3 output connectors

Ensure combined fan power draw stays within the limit specified in your motherboard manual.
Overview
Specifications
Features
Downloads
Buy
Key specifications
Fan connector
4-pin PWM
Pin configuration
Illustration of the pin configuration with the following text.: 3 pin 12V fans (non-PWM): Yellow = RPM Speed Signal, Red = +12V, Black = Ground (GND); 4 pin 12V fans (PWM): Blue = PWM Signal (+5V), Green = RPM Speed Signal; Yellow = +12V, Black = Ground (GND)
Cable length
102 mm
Colour
Black
Warranty
6 years
Scope of delivery
  • 2x NA-SC1 3-way splitter cable

Extended specifications

Logistical specifications
Packaging dimensions
16 x 140 x 81.3 mm
Packaging weight (including product)
435 g
EAN
9010018201727
UPC
841501121722
Packaging unit
80 pcs
Packaging unit dimensions
200 x 384 x 303 mm
Packaging unit weight
4.2 kg
