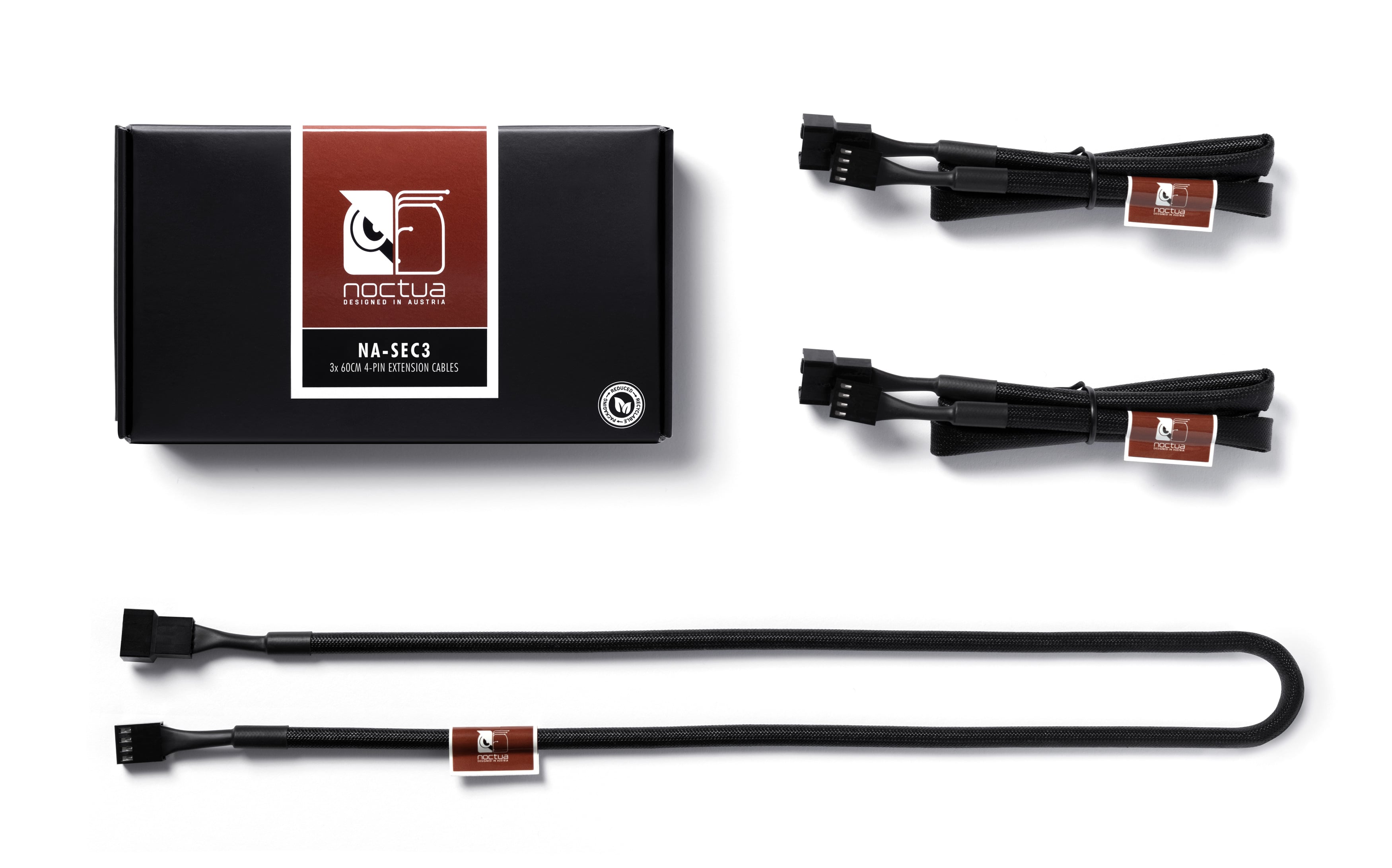

NA-SEC3

Extension cables

60cm reach

Ideal for use in large PC cases

4-pin connector

Supports both 3-pin and 4-pin PWM fans

High-quality black sleeving

Highly resistant against mechanical wear, heat and flames (UL 94 V-0 classification)

Connector:

4-pin3-pin

Length:

30 cm60 cm
Overview
Specifications
Features
Downloads
Buy
Key specifications
Fan connector
4-pin PWM
Pin configuration
Illustration of the pin configuration with the following text.: 3 pin 12V fans (non-PWM): Yellow = RPM Speed Signal, Red = +12V, Black = Ground (GND); 4 pin 12V fans (PWM): Blue = PWM Signal (+5V), Green = RPM Speed Signal; Yellow = +12V, Black = Ground (GND)
Cable length
600 mm
Colour
Black
Warranty
6 years
Scope of delivery
  • 3x NA-EC3, 60cm extension cables

Extended specifications

Logistical specifications
Packaging dimensions
140 x 81.3 x 16 mm
Packaging weight (including product)
69 g
EAN
9010018201130
UPC
841501121135
Packaging unit
80 pcs
Packaging unit dimensions
384 x 302 x 200 mm
Packaging unit weight
6.2 kg
