Discontinued
NC-U6

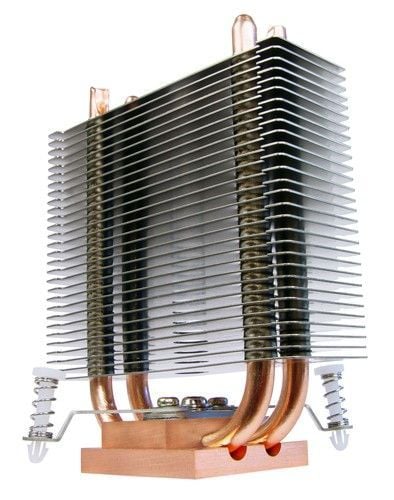

Motherboard chipset cooler
2 Dual-Heatpipes
For optimal heat absorption
Soldered joints
To ensure optimal heat transfer
Easy installation
On Intel and AMD motherboards
Key specifications
Total height | 85 mm |
Colour | Silver |
Width | 70 mm |
Depth | 23.5 mm |
Weight | 130 g |
Fin Count | 29 |
Interface heatpipes/heatsink fins | Soldered |
Warranty | 6 years |
Scope of delivery
- NC-U6
- Mounting Parts
- Thermal Paste
- Installation Manual
Extended specifications
Mechanical specifications
Height | 85 mm |
Width | 70 mm |
Depth | 23.5 mm |
Weight | 130 g |
Material: heatsink base | Copper |
Material: heatsink fins | Aluminium |
Material: heatpipes | Copper |
Interface heatpipes/heatsink fins | Soldered |

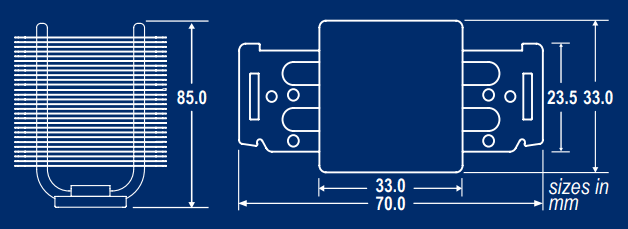

Measurements & clearance |  |
Number of heatpipes | 2 |
Heatpipe diameter | 6 mm |
Fin count | 29 |
Rack unit compatibility | 2U, 3U, 4U, 5U |
Logistical specifications
EAN | 4716123312390 |
Packaging unit | 60 pcs |
