Key specifications
Socket compatibility | AM5, AM4, LGA1700, LGA1851, LGA1156, LGA1155, LGA1150, LGA1151, LGA1200 |
Total height | 168 mm |
Fan configuration | 2x 140x140x25mm (round) |
NSPR | 183 |
Colour | Black |
Warranty | 6 years |

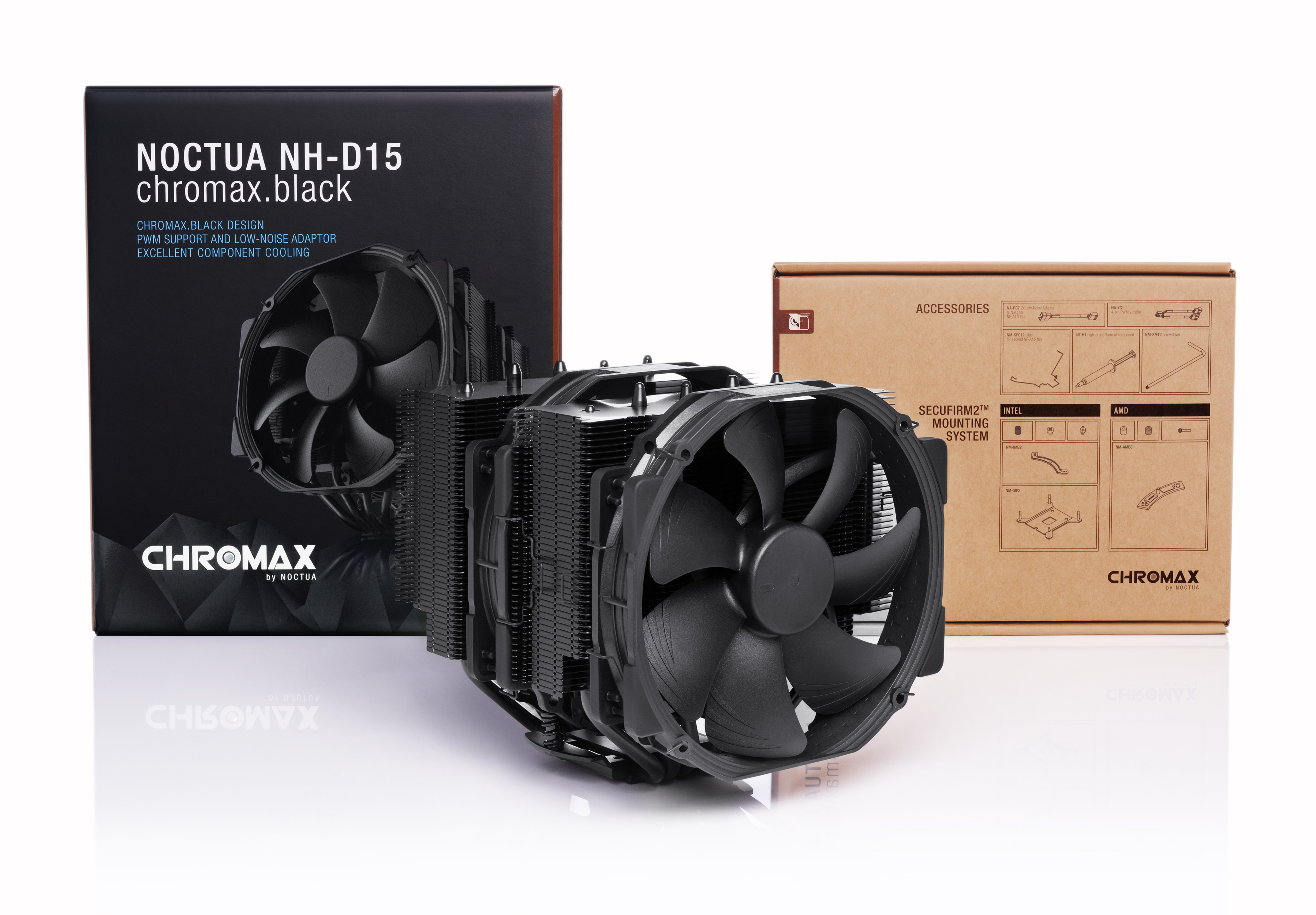

Scope of delivery

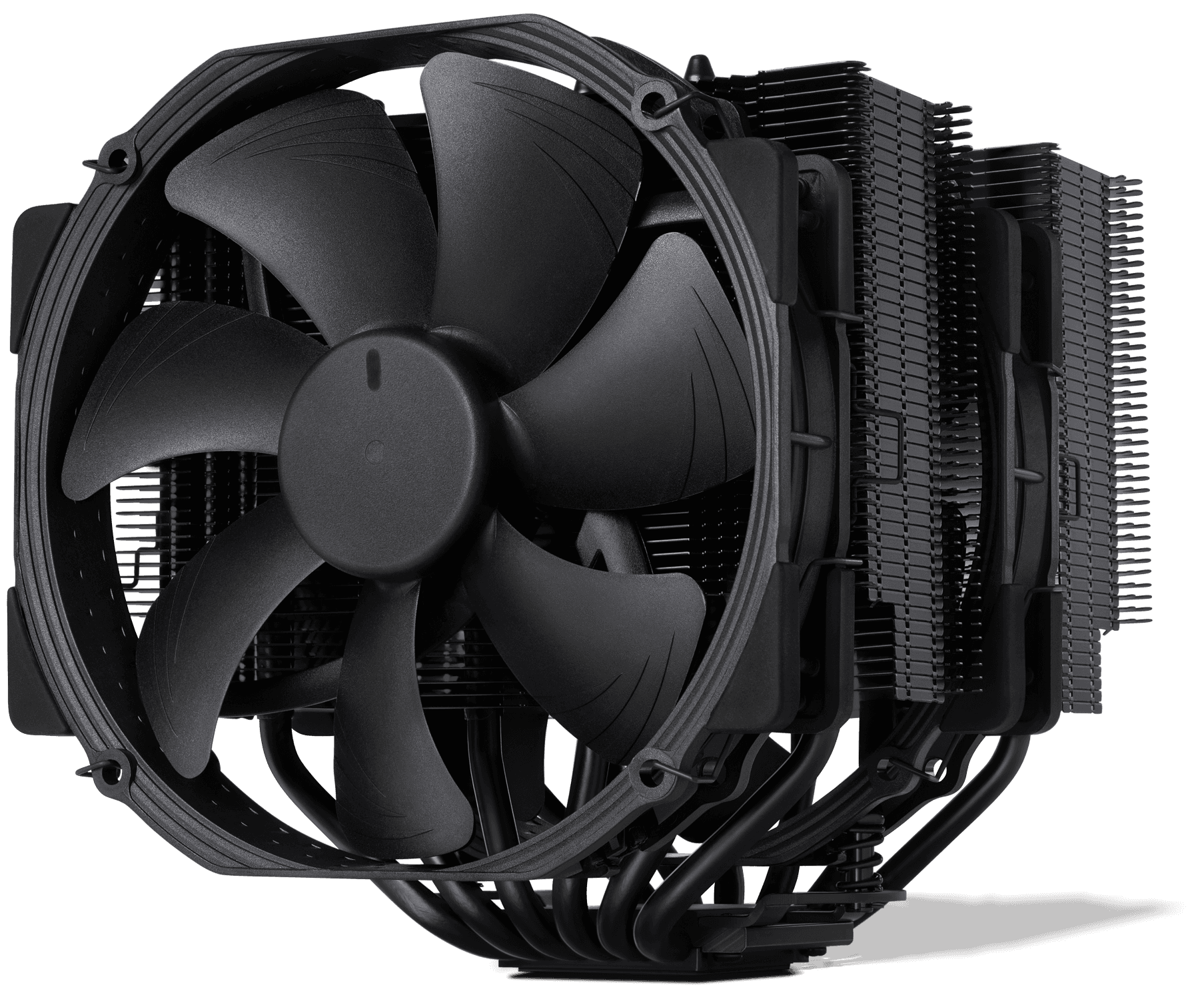

- Black NH-D15 heatsink
- 2x NF-A15 HS-PWM chromax.black premium fan
- 2x NA-RC7 Low-Noise Adaptor (L.N.A.)
- NA-YC1 4-pin PWM splitter cable
- NT-H1 high-grade thermal compound
- Black SecuFirm2™ mounting kit
- Noctua metal case-badge
Infographics
Extended specifications
Fan: NF-A15 HS-PWM chromax.black
Size (Form factor) | 140 x 150 x 25 mm (round) |
Speed range | 0 – 1500 rpm |
Airflow (max.) | 140.2 m³/h (82.52 CFM) |
Acoustical noise (max.) | 24.6 dB(A) |
Static pressure (max.) | 2.08 mm H₂O |
Rated voltage | 12 V |
Input power (typical) | 1.19 W |
Connector | 4-pin |
Colour | Black |
Warranty | 6 years |
Mechanical specifications
Height with fan(s) | 168 mm |
Height without fan(s) | 160 mm |
Width with fan(s) | 150 mm |
Width without fan(s) | 150 mm |
Depth with fan(s) | 161 mm |
Depth without fan(s) | 135 mm |
Weight with fan(s) | 1320 g |
Weight without fan(s) | 980 g |
Material: heatsink base | Copper, nickel plated |
Material: heatsink fins | Aluminium, nickel plated |
Material: heatpipes | Copper, nickel plated |
Interface heatpipes/heatsink fins | Soldered |
Measurements & clearance | |
Colour | Black |
Number of heatpipes | 6 |
Heatpipe diameter | 6 mm |
Fin count | 45 |
Mounting hole pitch | 83 mm |
Rack unit compatibility | 5U |
Base size | 38 x 40 mm |
Performance specifications
NSPR | 183 |
Logistical specifications
Packaging dimensions | 166 x 237 x 219 mm |
Packaging weight (including product) | 2254 g |
EAN | 9010018000184 |
UPC | 841501100185 |
Packaging unit | 8 pcs |
Packaging unit dimensions | 516 x 462 x 358 mm |
Packaging unit weight | 19.4 kg |
