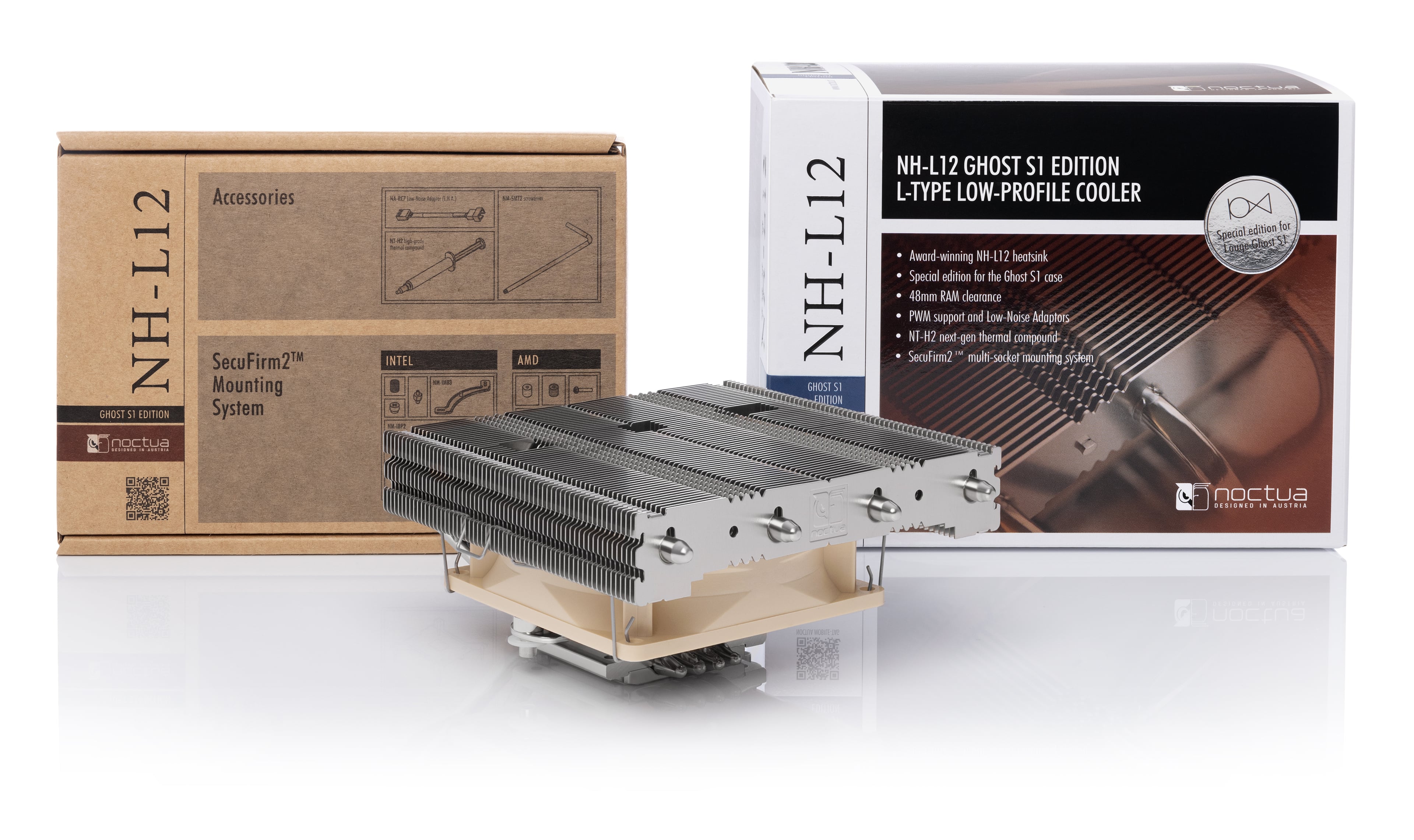

NH-L12 Ghost S1 Edition
Low-profile cooler for Louqe Ghost S1
Award-winning NH-L12 heatsink
with a compact low-profile design
Proven NF-B9 92mm fan
Full performance under load, virtually silent at idle!
Special edition for the Ghost S1 case
Revised design with a single 92mm fan
Key specifications
Socket compatibility | AM5, AM4, LGA1700, LGA1851, LGA1156, LGA1155, LGA1150, LGA1151, LGA1200 |
Total height | 66 mm |
Fan configuration | 1x 92x92x25mm |
NSPR | 78 |
Colour | Brown |
Warranty | 6 years |
Scope of delivery
- NF-B9 PWM premium fan
- NA-RC7 Low-Noise Adaptor (L.N.A.)
- NT-H2 high-grade thermal compound
- SecuFirm2™ mounting kit
- Noctua metal case-badge
Extended specifications
Fan: NF-B9 PWM
Size (Form factor) | 92 x 92 x 25 mm |
Speed range | 0 – 1600 rpm |
Airflow (max.) | 64.3 m³/h (37.85 CFM) |
Acoustical noise (max.) | 17.6 dB(A) |
Static pressure (max.) | 1.61 mm H₂O |
Rated voltage | 12 V |
Connector | 4-pin |
Colour | Brown |
Warranty | 6 years |
Mechanical specifications
Height with fan(s) | 66 mm |
Height without fan(s) | 66 mm |
Width with fan(s) | 128 mm |
Width without fan(s) | 128 mm |
Depth with fan(s) | 150 mm |
Depth without fan(s) | 150 mm |
Weight with fan(s) | 500 g |
Weight without fan(s) | 410 g |
Material: heatsink base | Copper, nickel plated |
Material: heatsink fins | Aluminium, nickel plated |
Material: heatpipes | Copper, nickel plated |
Interface heatpipes/heatsink fins | Soldered |
Colour | Brown |
Number of heatpipes | 4 |
Heatpipe diameter | 6 mm |
Fin count | 60 |
Mounting hole pitch | 78 mm |
Rack unit compatibility | 3U, 4U, 5U, 2U |
Base size | 38 x 40 mm |
Performance specifications
NSPR | 78 |
Logistical specifications
Packaging dimensions | 146 x 192 x 141 mm |
Packaging weight (including product) | 1062 g |
EAN | 9010018000221 |
UPC | 841501100222 |
Packaging unit | 8 pcs |
Packaging unit dimensions | 333 x 411 x 314 mm |
Packaging unit weight | 9.3 kg |
