Discontinued

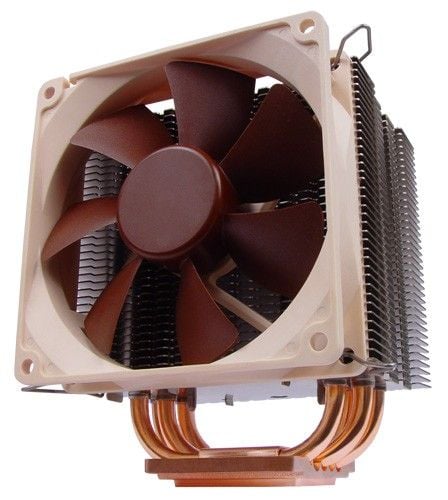

NH-U9F
U-Type CPU cooler
NH-U9 series
Classic 92mm tower size
Noctua 92mm fan
With Low-Noise Adaptors
Included thermal compound
Proven TIM solution
Key specifications
Socket compatibility | 754, 939, 940, AM2, AM2+, AM3, AM3+, FM1, FM2, FM2+, F, LGA775 |
Total height | 128 mm |
Fan configuration | 1x 92x92x25mm |
Colour | Brown |
Warranty | 6 years |
Scope of delivery
- NH-U9F heatsink
- NF-9-1600
- NM-SMT1 mounting tool
- NA-RC2 Ultra-Low-Noise Adaptor (U.L.N.A.)
- NA-RC1 Low-Noise Adaptor (L.N.A.)
- thermal paste
- anti-vibration strips
Extended specifications
Fan: NF-9-1600
Size (Form factor) | 92 x 92 x 25 mm |
Speed range | 0 – 1600 rpm |
Airflow (max.) | 58 m³/h (34.14 CFM) |
Acoustical noise (max.) | 18 dB(A) |
Rated voltage | 12 V |
Connector | 3-pin |
Colour | Brown |
Warranty | 6 years |
Mechanical specifications
Height with fan(s) | 128 mm |
Height without fan(s) | 128 mm |
Width with fan(s) | 95 mm |
Width without fan(s) | 95 mm |
Depth with fan(s) | 95 mm |
Depth without fan(s) | 70 mm |
Weight with fan(s) | 660 g |
Material: heatsink base | Copper |
Material: heatsink fins | Aluminium |
Material: heatpipes | Copper |
Interface heatpipes/heatsink fins | Soldered |
Colour | Brown |
Number of heatpipes | 4 |
Heatpipe diameter | 6 mm |
Fin count | 37 |
Mounting hole pitch | 83 mm |
Rack unit compatibility | 5U, 4U |
Base size | 38 x 40 mm |
Logistical specifications
Packaging unit | 18 pcs |
