Seasonic PRIME TX-1600 Noctua Edition

Power supply

Ultra-quiet Noctua edition

With Cybenetics Lambda A++ sound level rating

Renowned NF-A12x25 120mm fan

Runs ~8-10dB(A) quieter than the regular model's fan

Titanium level energy efficiency

Reduces waste heat and power consumption

Key specifications

Form factor	ATX / EPS
Dimensions	210 x 150 x 86 mm
Max. combined power	1600W (+12V), 125W (3.3V+5V), 6W (-12V), 15W (5Vsb)
Connectors	1x 20/24-pin (MB) 2x 12V-2x6 (12+4 Pins to 12+4 Pins) 3x 4/8-pin ATX12V 6x 6/8-pin PCIe 18x S-ATA 3x P-ATA (IDE)
ATX specification	ATX 3.1 & PCIe 5.1
Average efficiency	94 %
80 PLUS	80 PLUS Titanium
Cybenetics	ETA-Titanium (115V / 230V), Lambda A++ (115V / 230V))
Protection features	OCP (Overcurrent protection) OPP (Over Power protection) OTP (Over temperature protection) OVP (Overvoltage protection) SCP (Short-circuits protection) UVP (Undervoltage protection)
Warranty	12 years

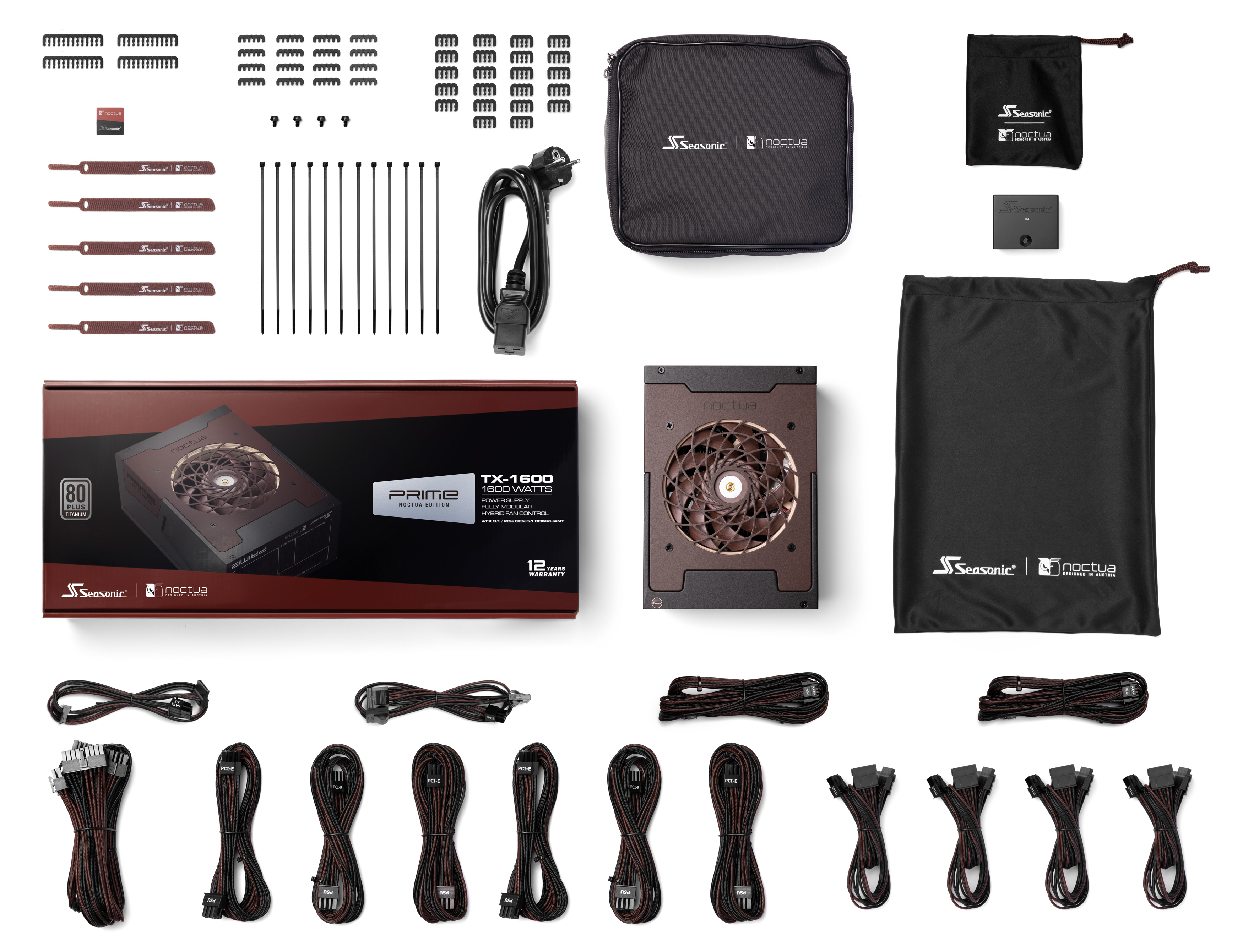

Scope of delivery

PRIME TX-1600 Noctua Edition power supply
Modular cables in Noctua Brown colour scheme

Infographics

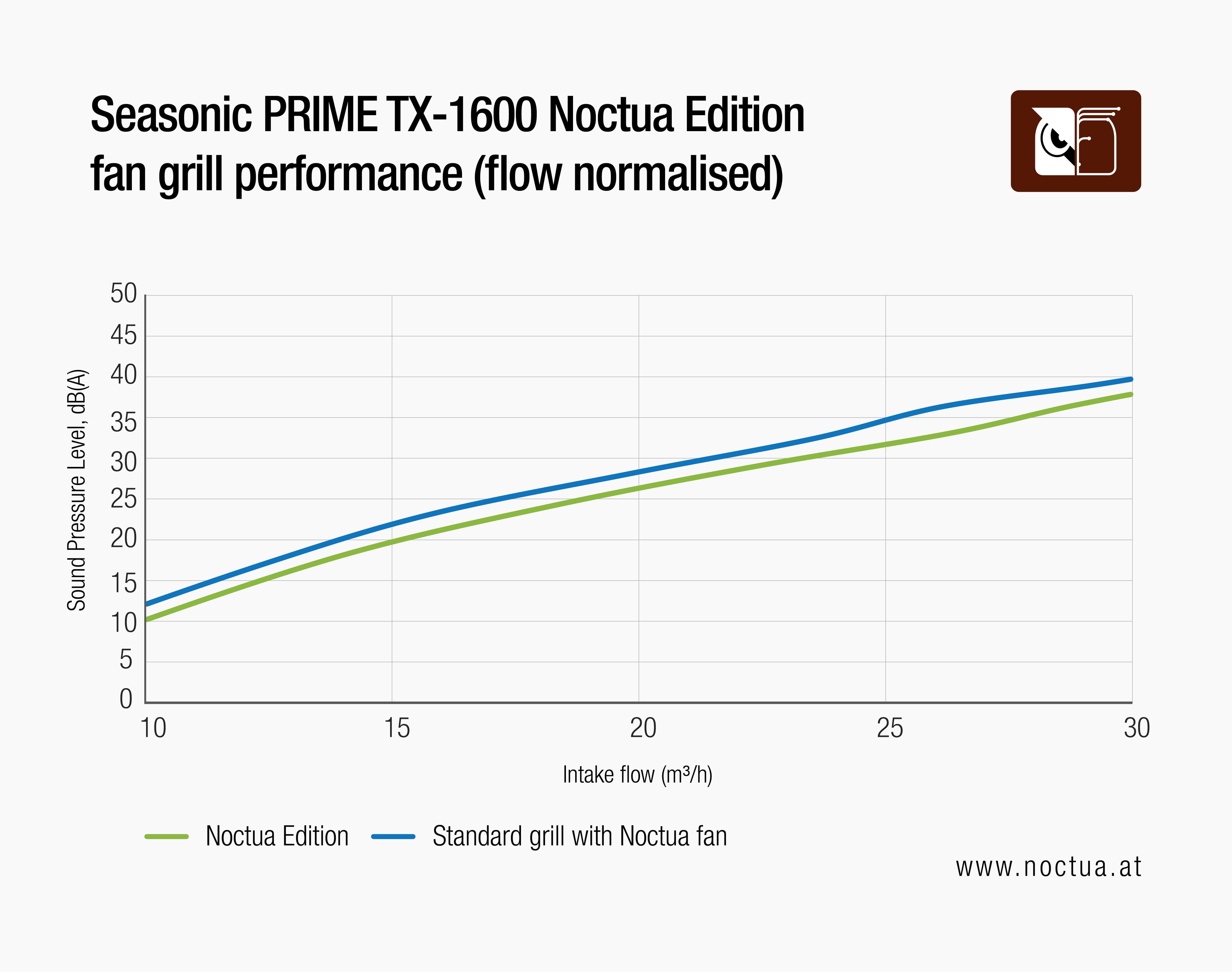

Graph comparing the better performing Noctua Edition fan grill vs. standard grill performance (flow normalized) on Seasonic PRIME TX-1600 PSU.

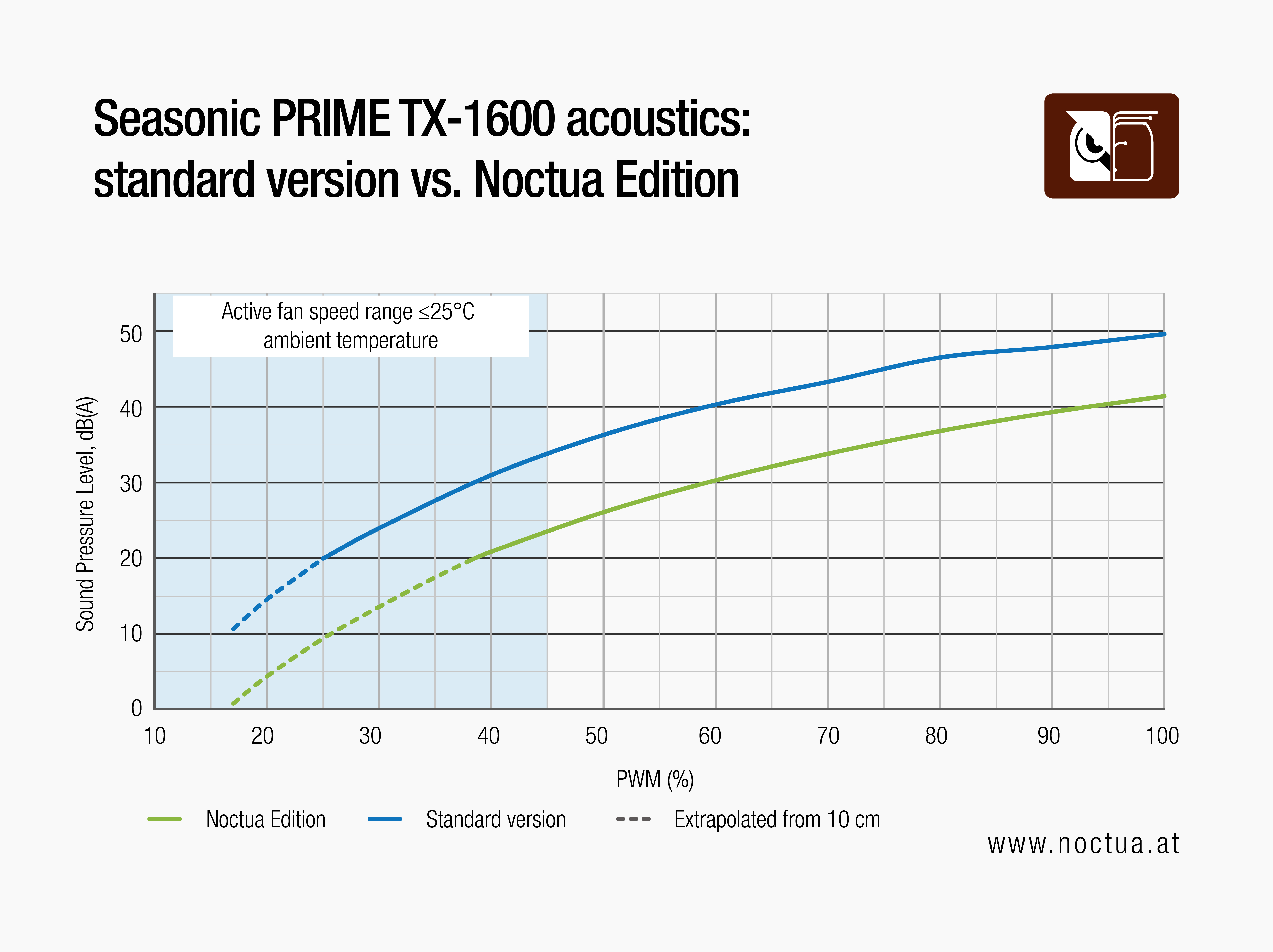

Graph comparing acoustics of Seasonic PRIME TX-1600 PSU: standard version vs. Noctua Edition, showing lower noise achieved with NF-A12x25 and custom fan grill.

Extended specifications

Fan: NF-A12x25 HS-PWM

Size (Form factor)	120 x 120 x 25 mm (square)
Speed range	0 – 2400 rpm
Airflow (max.)	117.6 m³/h (69.22 CFM)
Acoustical noise (max.)	28.8 dB(A)
Static pressure (max.)	3.28 mm H₂O
Rated voltage	12 V
Connector	4-pin
Colour	Brown
Warranty	6 years

Mechanical specifications

Form factor	ATX / EPS
Dimensions	210 x 150 x 86 mm
Connectors	1x 20/24-pin (MB) 2x 12V-2x6 (12+4 Pins to 12+4 Pins) 3x 4/8-pin ATX12V 6x 6/8-pin PCIe 18x S-ATA 3x P-ATA (IDE)
Cable management	fully modular
Cable type	Individually Sleeved Black and Brown Cables

Electrical specifications

Input voltage range	100~240 V AC
Input frequency	50-60 Hz
Input current range	10~15A
Max. combined power	1600W (+12V), 125W (3.3V+5V), 6W (-12V), 15W (5Vsb)
Average efficiency	94 %

Safety, compliance & environmental specifications

ATX specification	ATX 3.1 & PCIe 5.1
80 PLUS	80 PLUS Titanium
Cybenetics	ETA-Titanium (115V / 230V), Lambda A++ (115V / 230V))
Operating temperature	0-50 °C
MTBF @ 25 °C, excl. fan	> 100,000 h
Protection features	OCP (Overcurrent protection) OPP (Over Power protection) OTP (Over temperature protection) OVP (Overvoltage protection) SCP (Short-circuits protection) UVP (Undervoltage protection)
Safety and EMC	cTÜVus, TÜV, CB, CCC, BSMI, CE, FCC, UKCA
Environmental compliance	REACH, RoHS, Energy Star, ErP Lot 6, WEEE

Logistical specifications

Packaging dimensions	125 x 450 x 195 mm
Packaging weight (including product)	7860 g
EAN	AU: 9010018900279 EU & ROW: 9010018900248 JP: 9010018900262 no-cord: 9010018900224 UK: 9010018900255 US: 9010018900231
UPC	AU: 841501190278 EU & ROW: 841501190247 JP: 841501190261 no-cord: 841501190223 UK: 841501190254 US: 841501190230
Packaging unit	4 pcs
Packaging unit dimensions	480 x 545 x 215 mm
Packaging unit weight	25.29 kg
