NA-FC1
Fan controller
PWM based control
Compact PWM-controller for up to three 4-pin fans
Manual control mode
Manually set a PWM duty cycle via the speed control dial
“No stop” mode
Prevents the fan from falling below 300rpm to avoid BIOS errors
Key specifications
Colour | Black |
Fan connector | 4-pin PWM |
Max. power | 36 W |
Voltage range | 5~12 V |
Max. current | 3 A |
Size | 21 x 25 x 48 mm |
Weight | 15 g |
Fan compatibility | all Noctua 12V PWM and 5V PWM fans, many third party PWM fans (Make sure to use the correct power source, i.e. 5V for 5V fans, 12V for 12V fans). |
Warranty | 6 years |

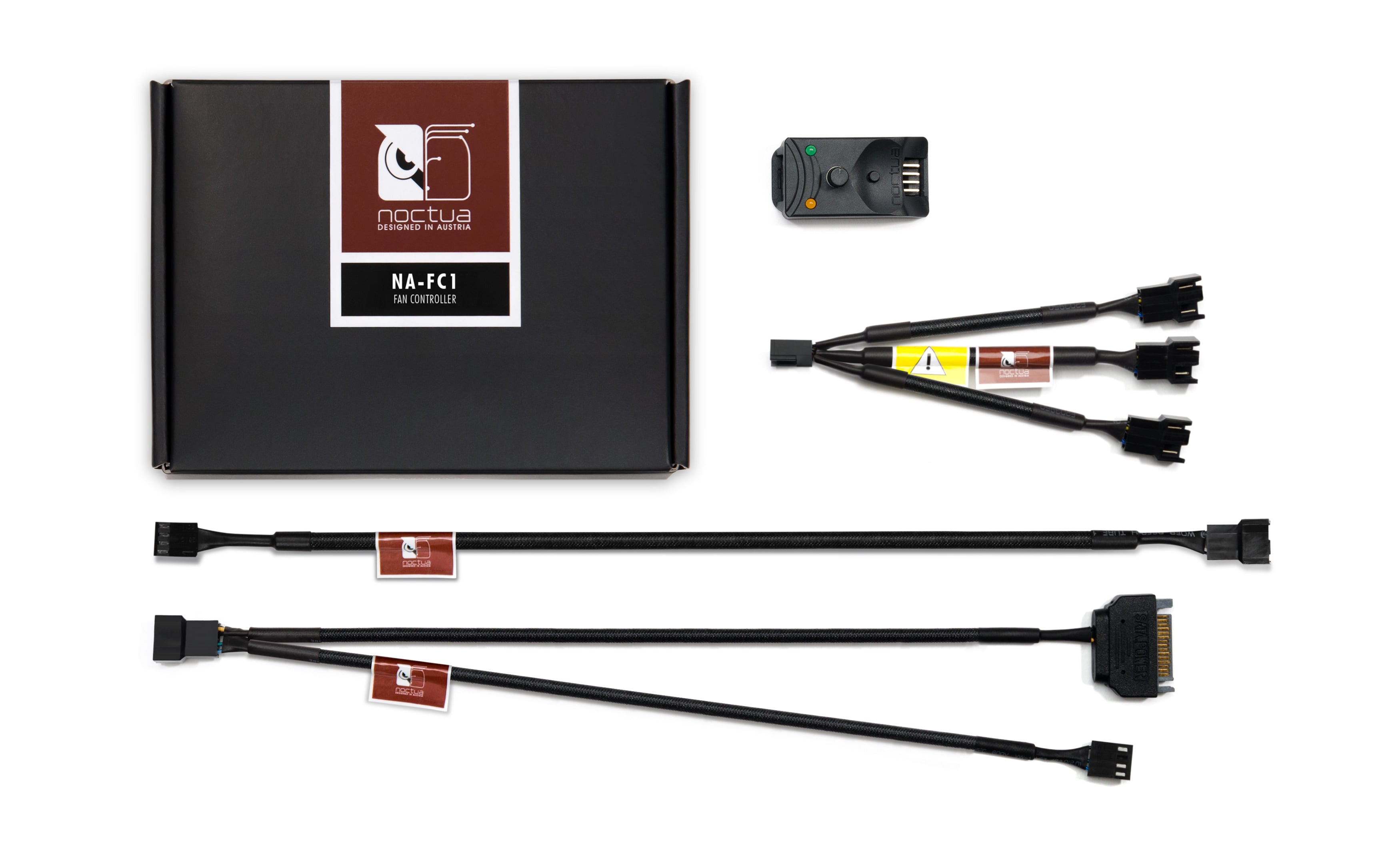

Scope of delivery
- NA-FC1 fan controller
- NA-SC1 3-way splitter cable
- NA-EC1 input cable
- NA-AC4 input cable with power supply adaptor
Extended specifications
Logistical specifications
Packaging dimensions | 145 x 110 x 24 mm |
Packaging weight (including product) | 112 g |
EAN | 9010018200232 |
UPC | 841501120244 |
Packaging unit | 60 pcs |
Packaging unit dimensions | 363 x 314 x 285 mm |
Packaging unit weight | 7.5 kg |
