NA-IS1-12 chromax.black Sx2

Reducing influx turbulences doesn’t only improve acoustics, it also helps fans to operate more efficiently from an airflow performance point of view because the fan blades are less hampered by turbulence. In many suction type applications, using inlet spacers can therefore enable fans to achieve higher flow rates and lower noise emissions at the same time.

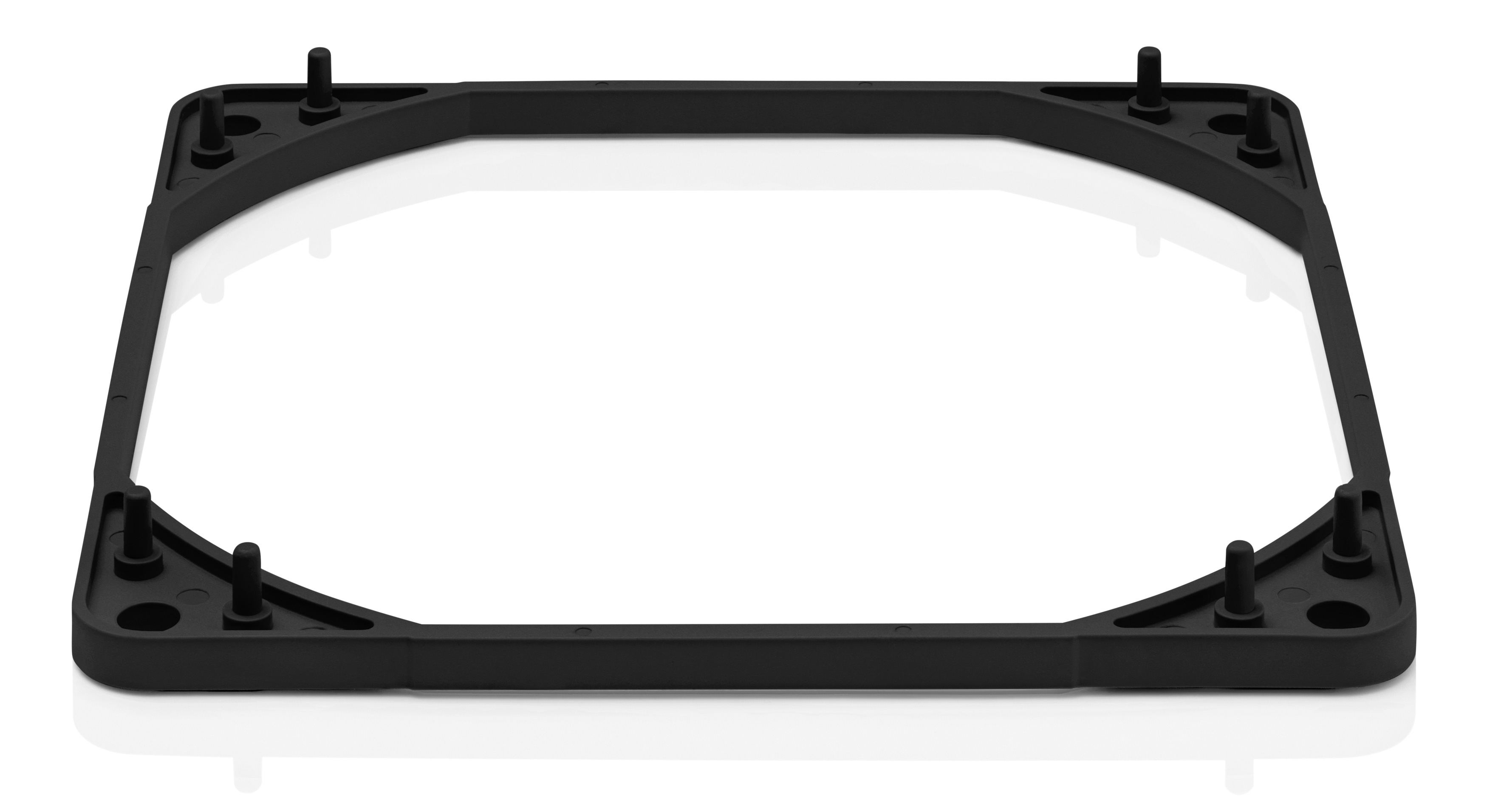

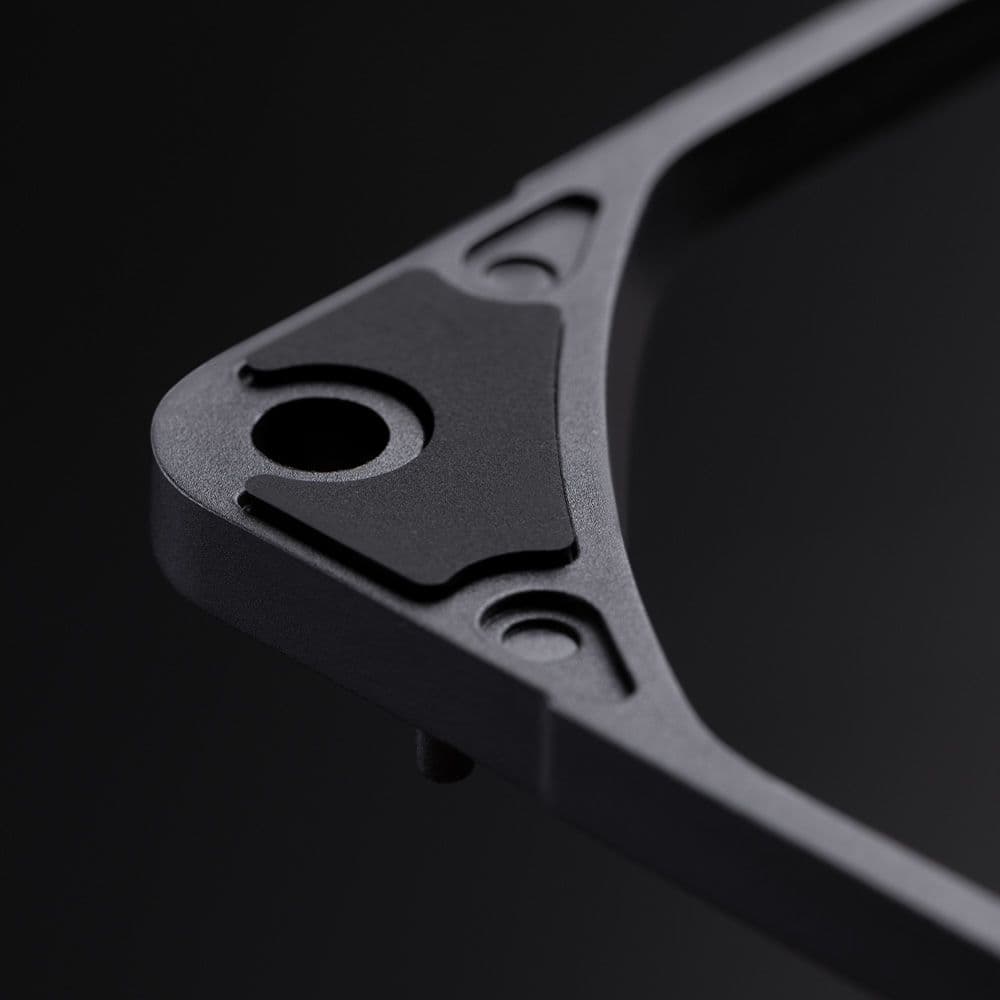

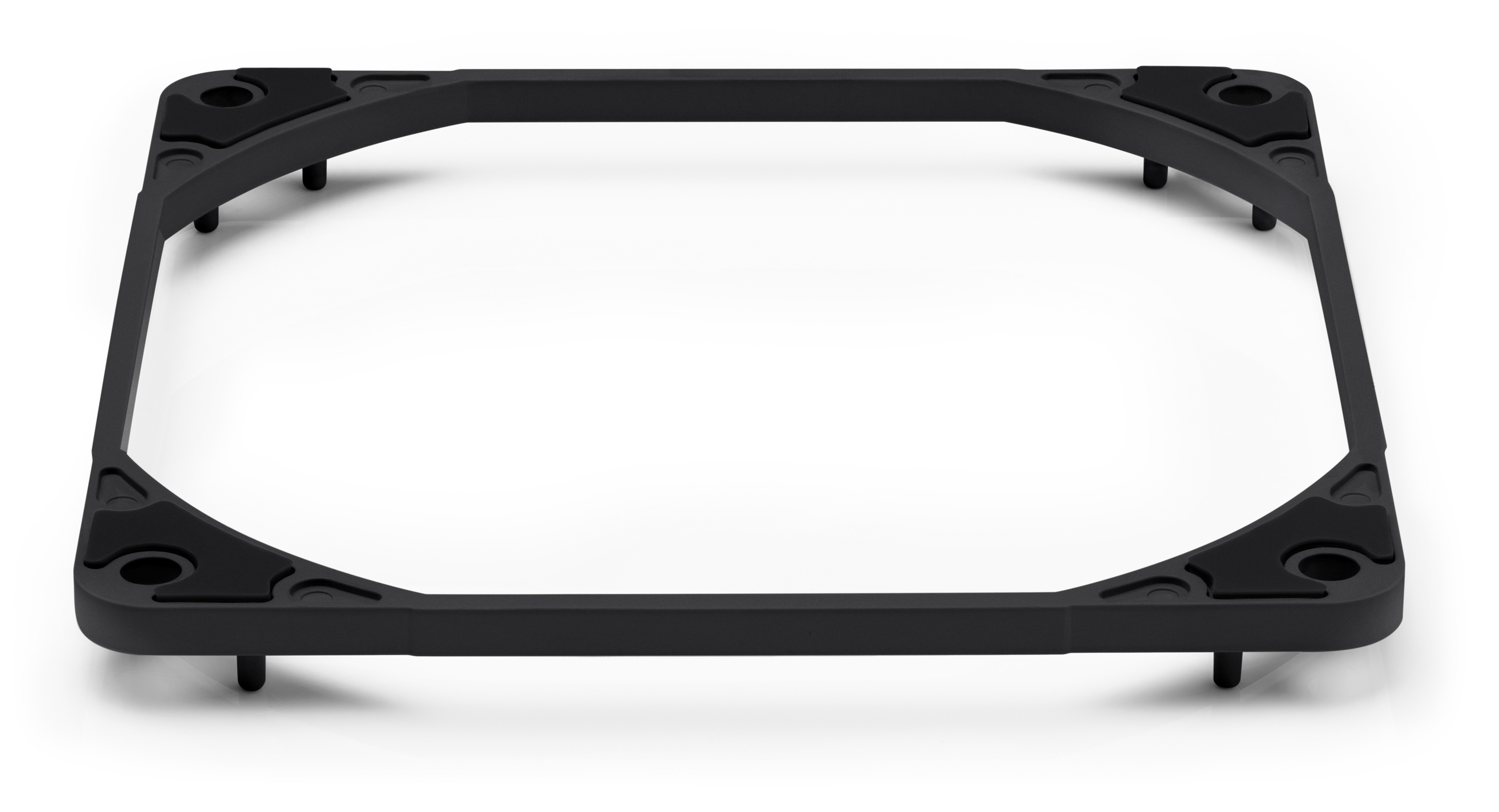

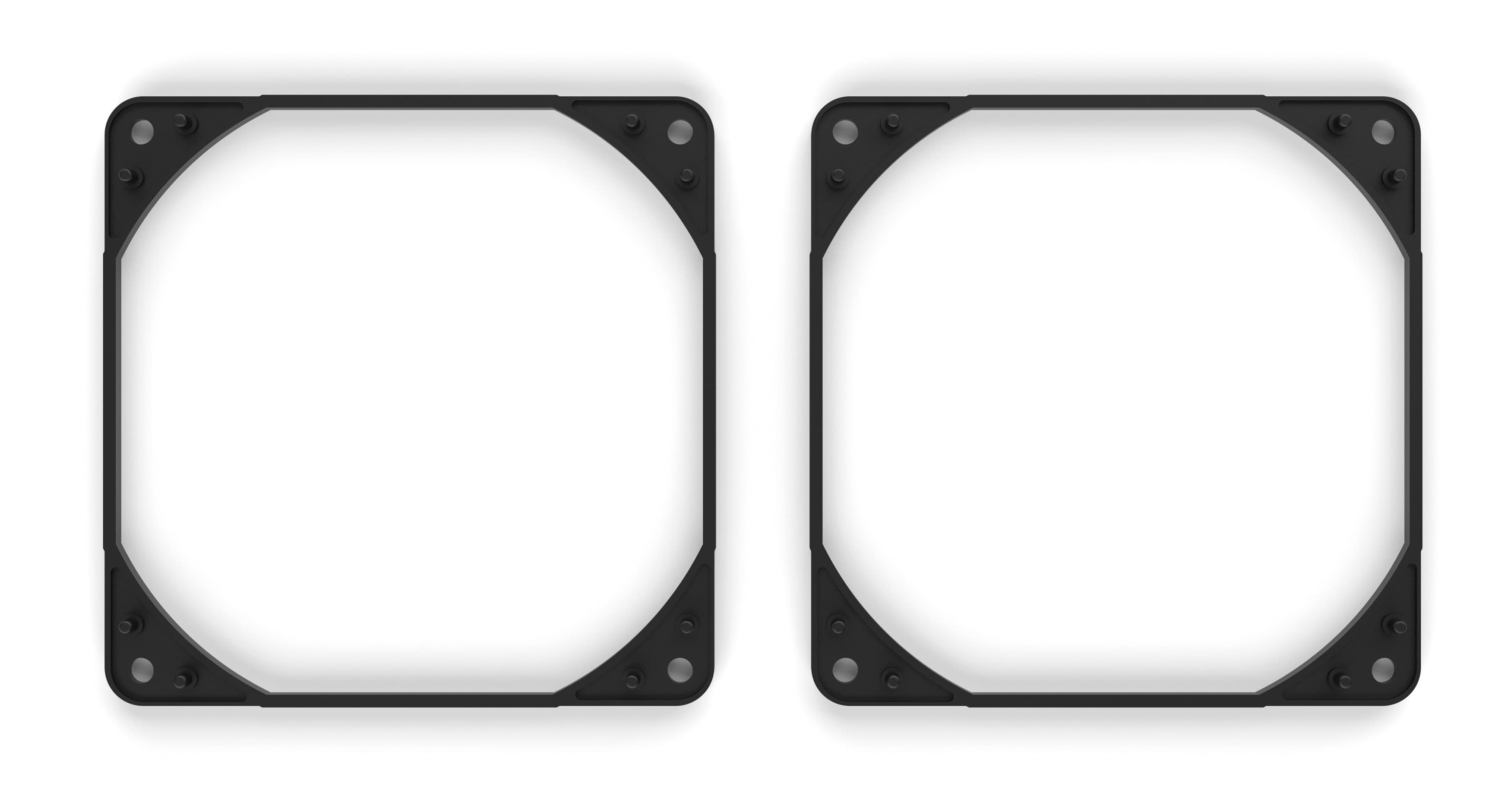

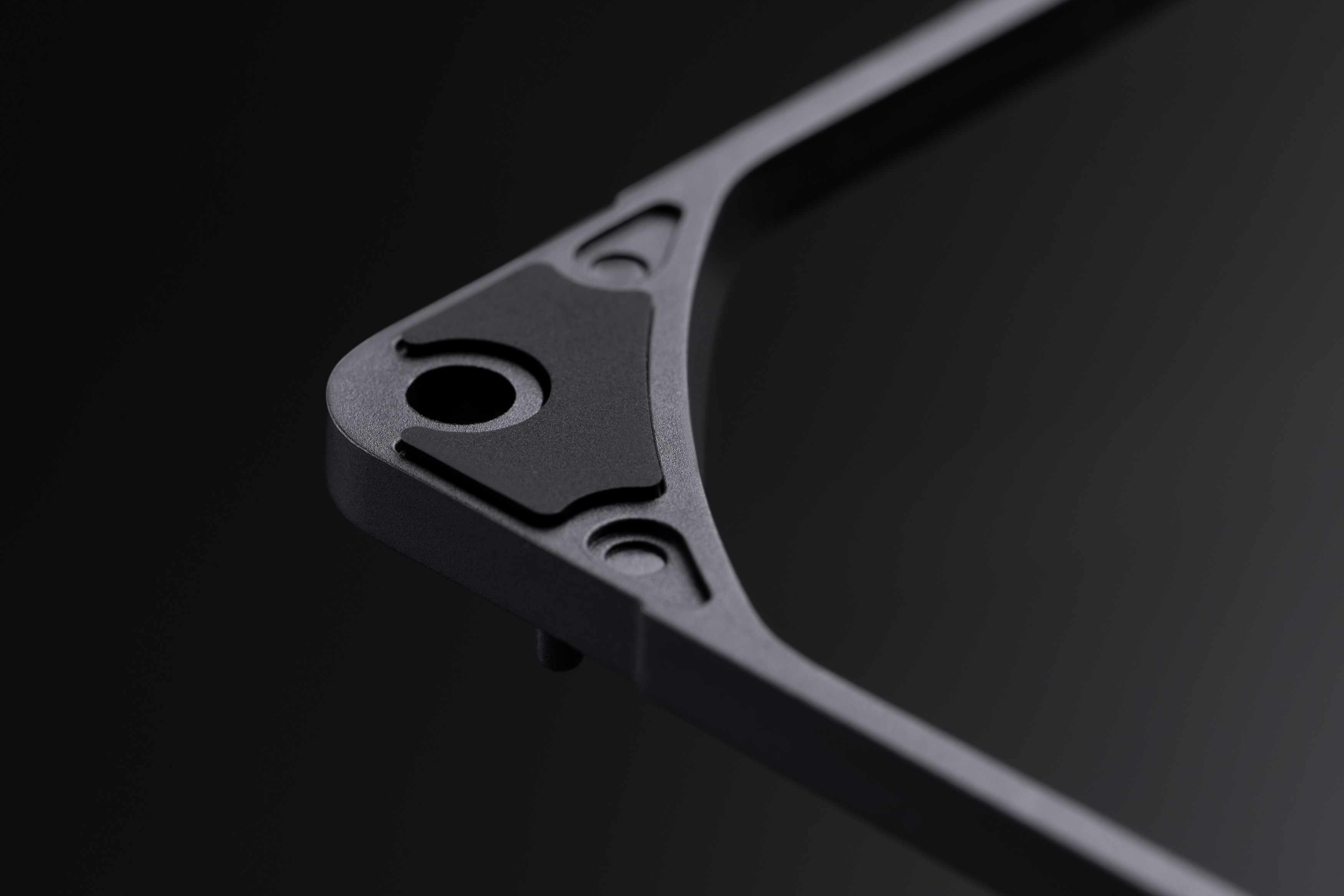

Suction applications where fans draw air through obstacles such as grills or perforated panels are notoriously challenging acoustically due to the turbulences caused by these obstacles. Introducing a 5mm off-set between the fan and the obstacle, the NA-IS1 spacers can reduce these turbulences, which often improves noise levels and/or noise profiles significantly.

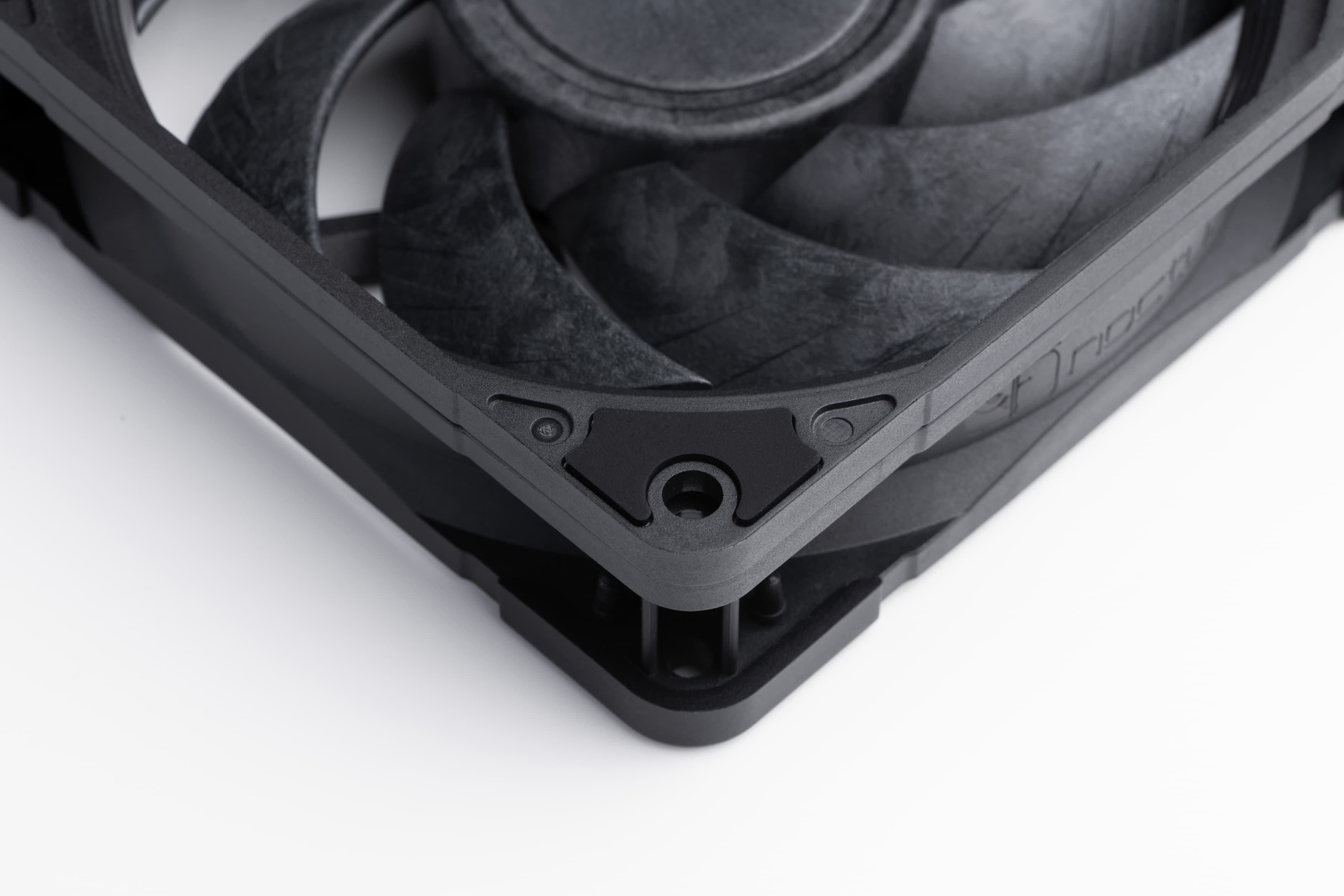

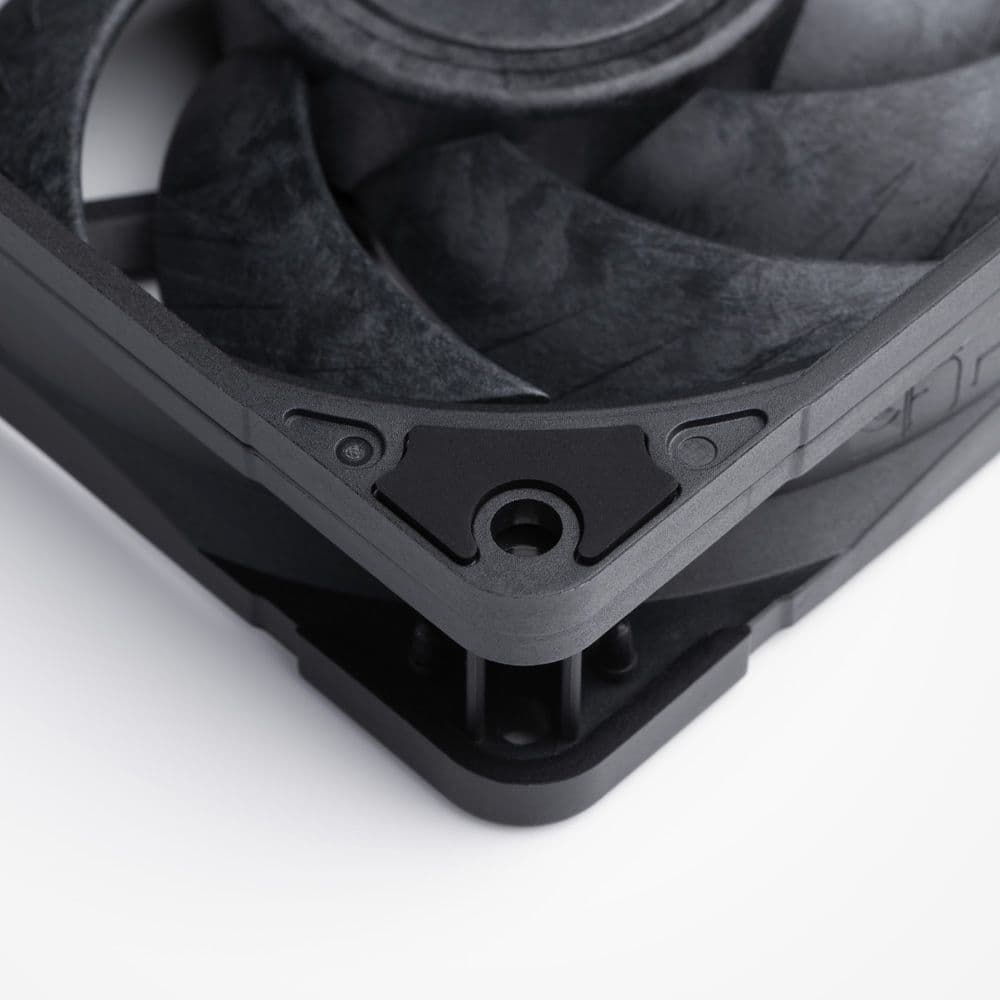

Replacing the fan’s stock NA-AVP1 anti-vibration pads, the NA-IS1-12 are compatible with all current Noctua square-frame 120x25mm fans such as the popular NF-A12x25, NF-F12, NF-P12 redux or NF-S12A series. The slim NF-A12x15 or fans from other manufacturers are not supported.

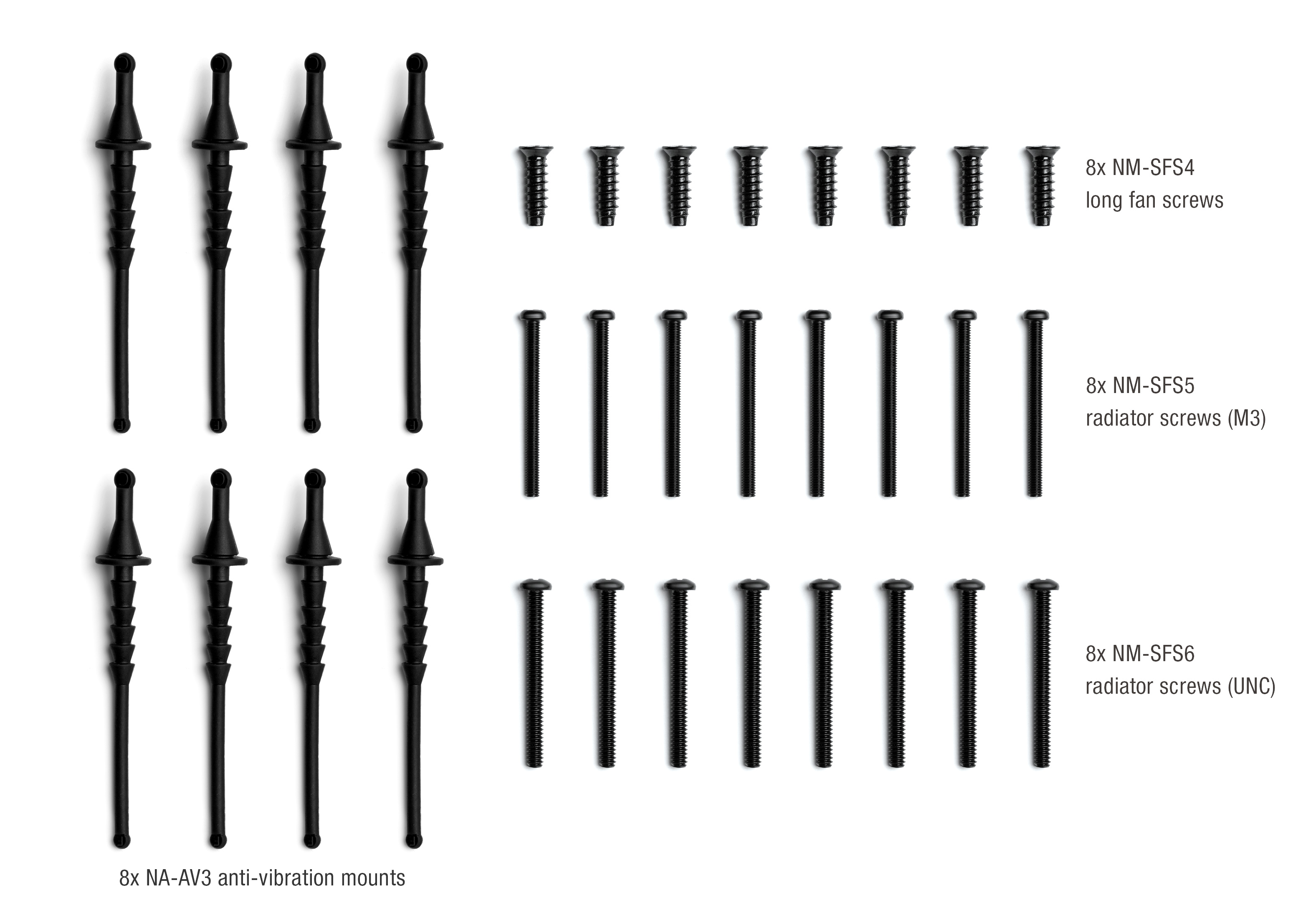

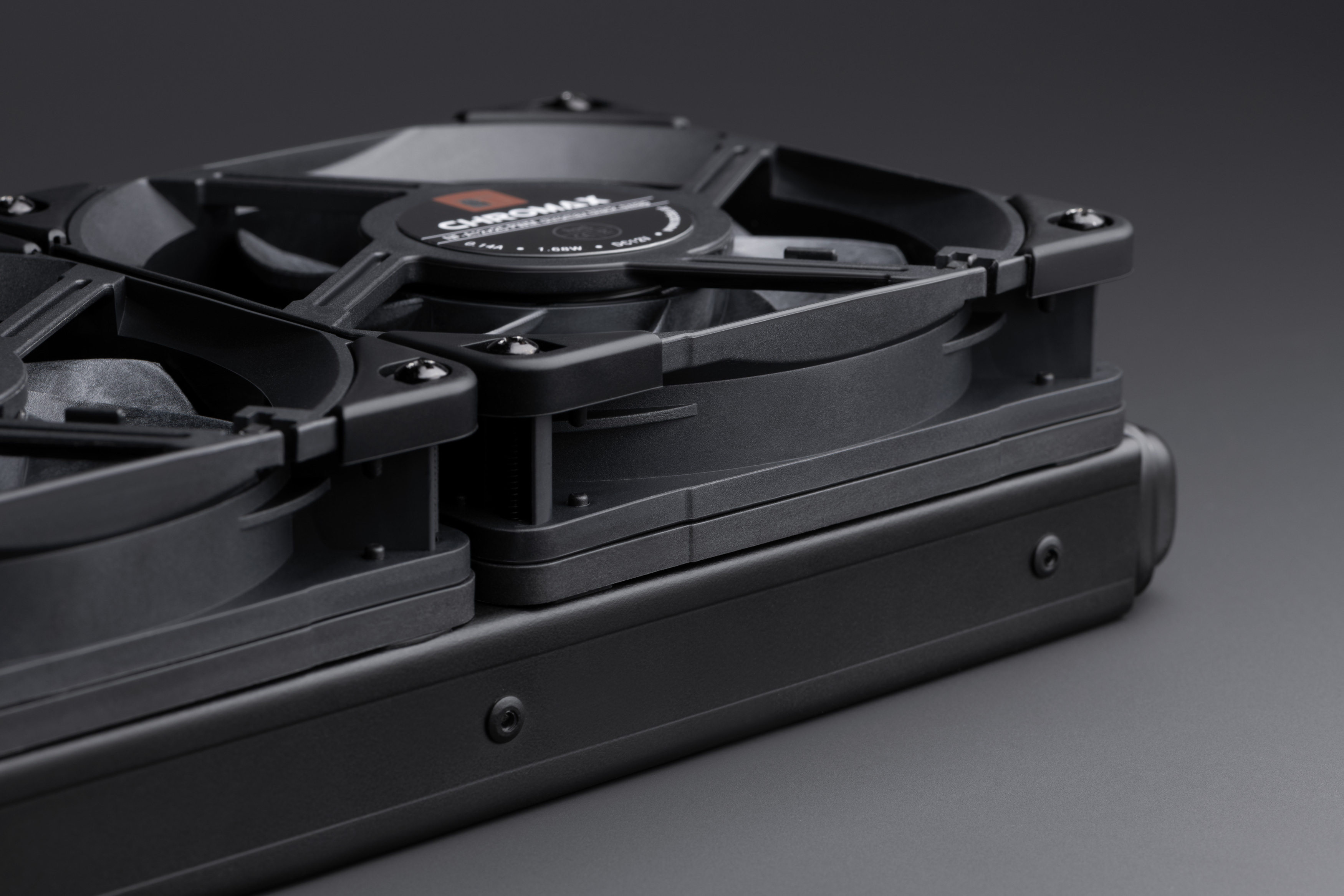

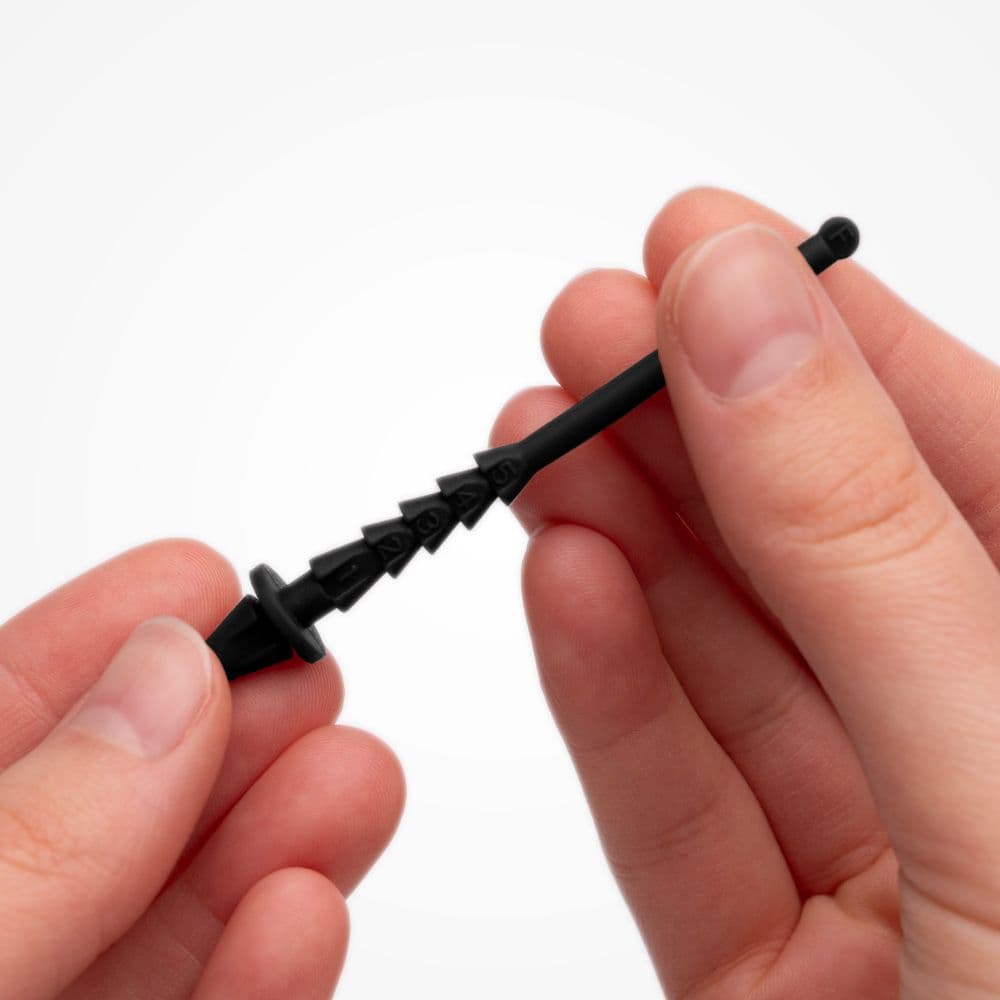

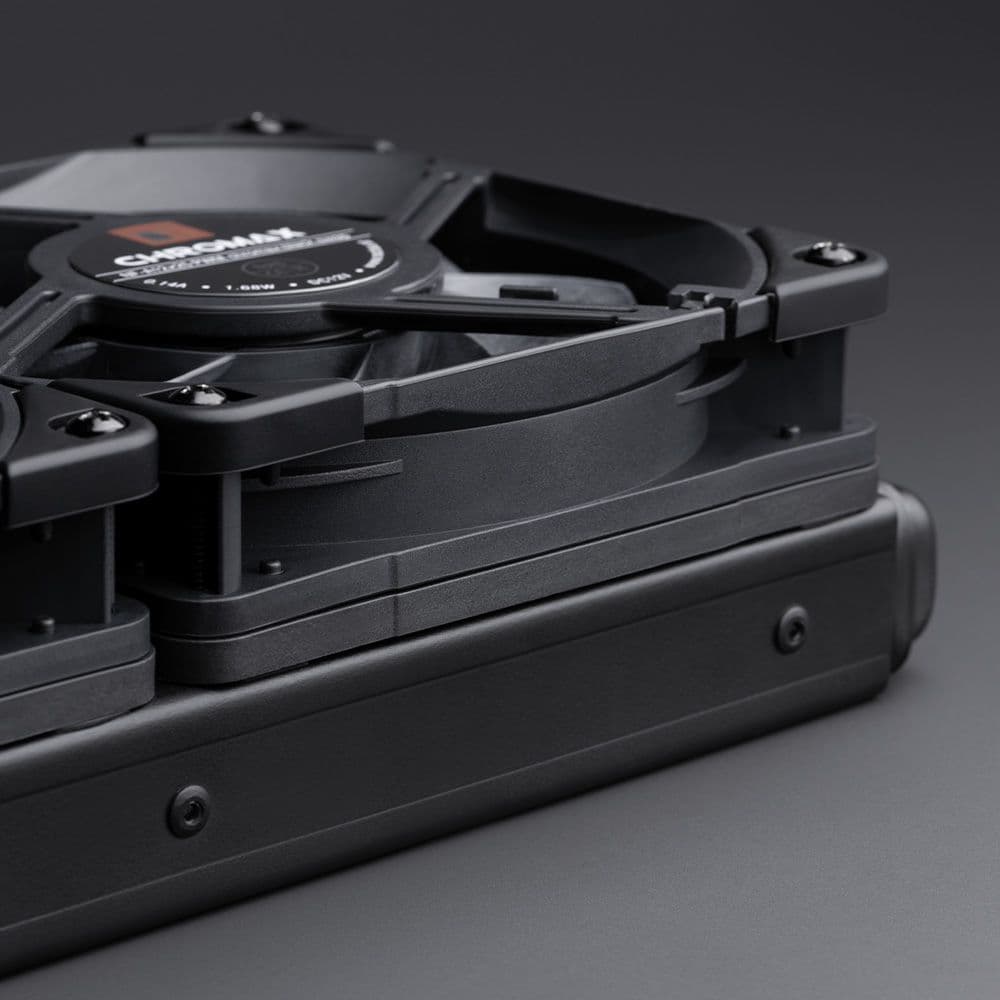

For use with case intake fans, the NA-IS1-12 Sx2 contains eight long self-tapping fan screws and eight NA-AV3 silicone anti-vibration mounts for tool-free, vibration-proof installation. Both the screws and the anti-vibration mounts simply go through the holes in the spacer and attach to the fan, sandwiching the spacer between the fan and the case.
