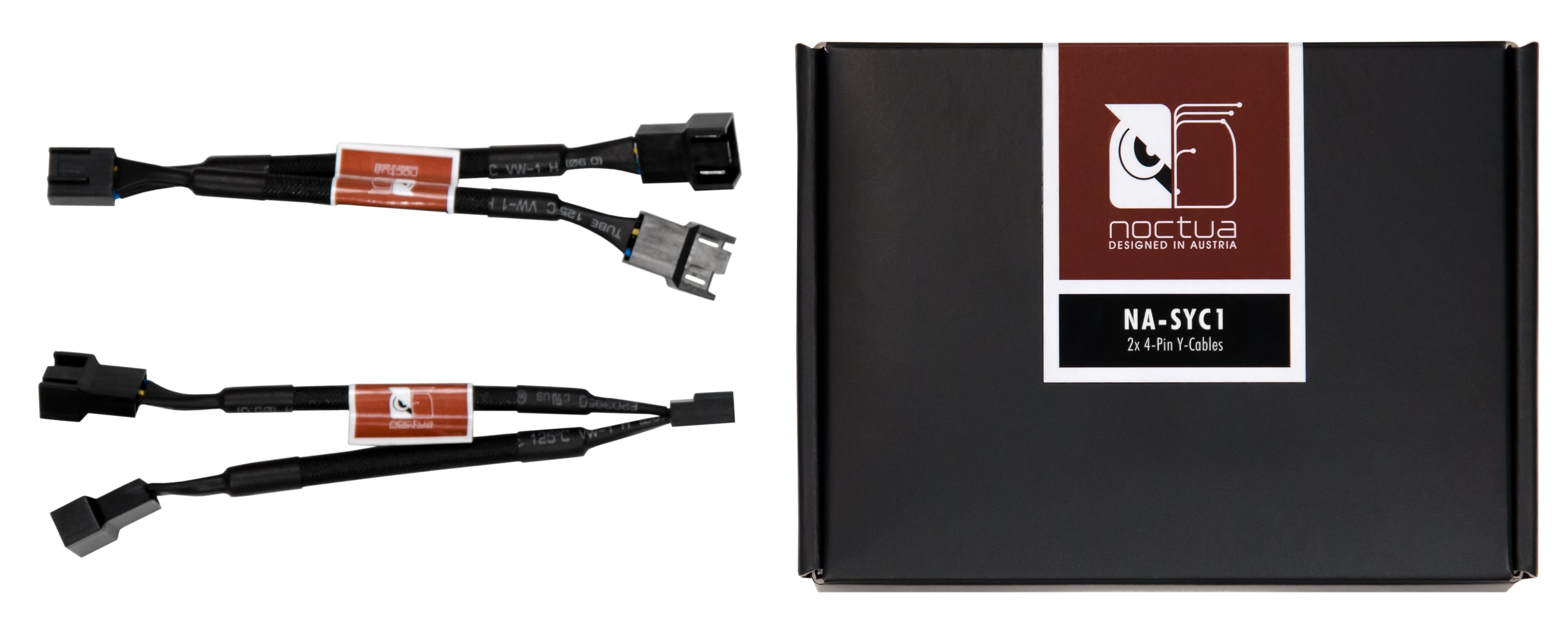

NA-SYC1

Y-splitter cables

Set of two splitter cables

Ideal for running multiple fans on one fan header

4-pin connector

Supports both 3-pin and 4-pin PWM fans

High-quality black sleeving

Highly resistant against mechanical wear, heat and flames (UL 94 V-0 classification)

Connector:

4-pin3-pin
Ensure combined fan power draw stays within the limit specified in your motherboard manual.
Overview
Specifications
Downloads
Buy
Key specifications
Fan connector
4-pin PWM
Pin configuration
Illustration of the pin configuration with the following text.: 3 pin 12V fans (non-PWM): Yellow = RPM Speed Signal, Red = +12V, Black = Ground (GND); 4 pin 12V fans (PWM): Blue = PWM Signal (+5V), Green = RPM Speed Signal; Yellow = +12V, Black = Ground (GND)
Cable length
115 mm
Colour
Black
Warranty
6 years
Scope of delivery
  • 2x NA-YC1 4-pin PWM splitter cable

Extended specifications

Logistical specifications
Packaging dimensions
150 x 111 x 30 mm
Packaging weight (including product)
60 g
EAN
4716123315193
UPC
841501120336
Packaging unit
40 pcs
Packaging unit dimensions
320 x 320 x 240 mm
Packaging unit weight
3.04 kg
