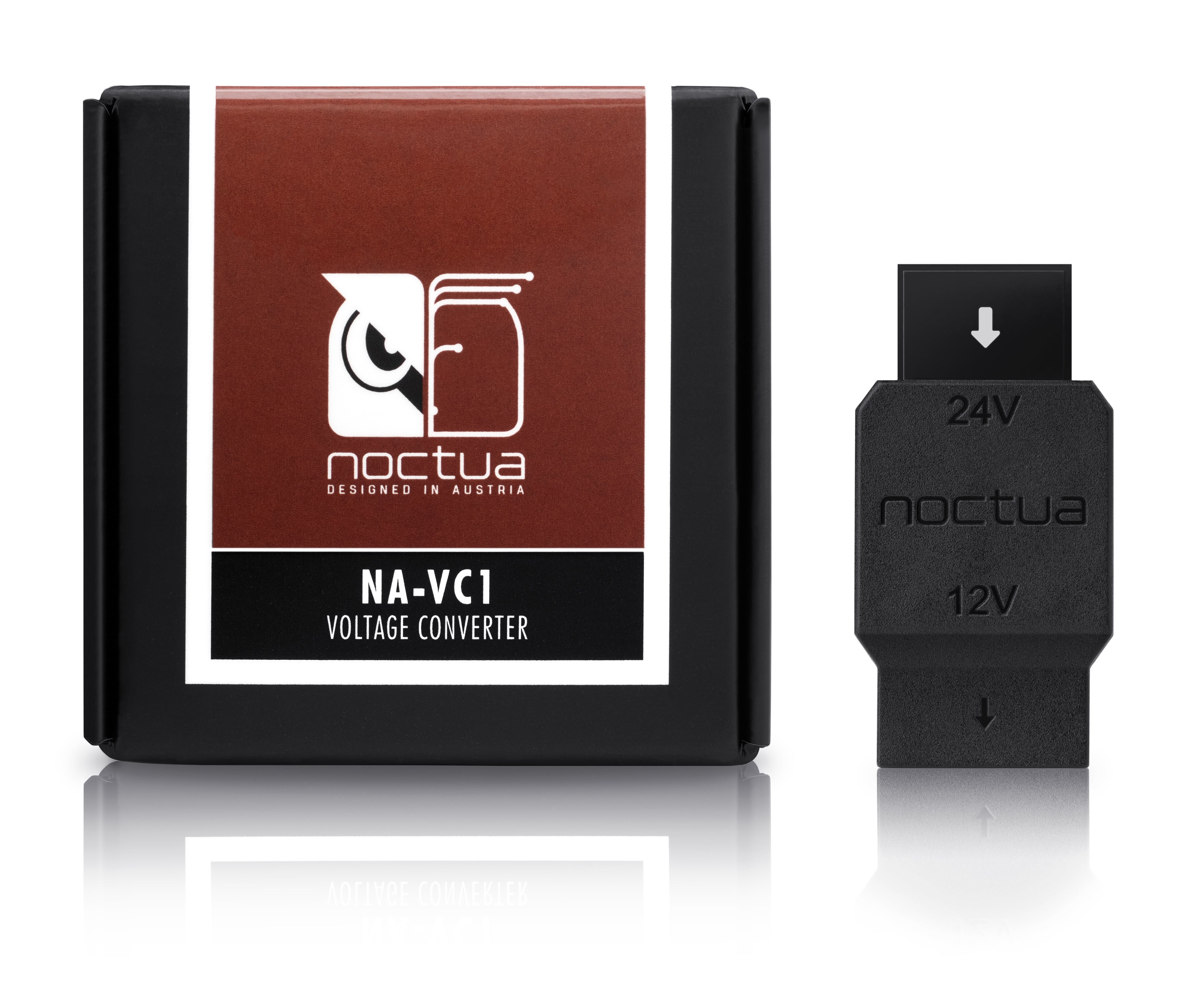

NA-VC1
Voltage converter
For running 12V fans in 24V applications
Ideal for use with 3D printers or automotive applications
Up to 9W output
Can run multiple fans when combined with splitter cables or fan hubs
Advanced protections & safety certifications
Protected against short-circuits, reverse polarity, overcurrent & overheating
Key specifications
Colour | Black |
Fan connector | 4-pin PWM |
Max. power | 9 W |
Input voltage | 12~24 V |
Max. input current | 0.375 A |
Output voltage | 7~12 V |
Max. output current | 0.75 A |
Operating temperature | -20°C to +60°C |
Safety standards | EN 62368-1, EN 55035, EN 55032 |
Certifications | CE, UKCA, UL |
Protection features | Short-circuit protection, Reverse polarity protection, Overcurrent protection, Overheating protection (automatic shutdown) |
Size | 31 x 16 x 8.5 mm |
Weight | 6 g |
Fan compatibility | all Noctua 12V fans, many third party fans |
Warranty | 6 years |
Scope of delivery
- NA-VC1 voltage converter
Extended specifications
Logistical specifications
Packaging dimensions | 470 x 450 x 160 mm |
Packaging weight (including product) | 7 g |
EAN | 9010018201390 |
UPC | 841501121395 |
Packaging unit | 200 pcs |
Packaging unit dimensions | 263 x 210 x 205 mm |
Packaging unit weight | 2.54 kg |
