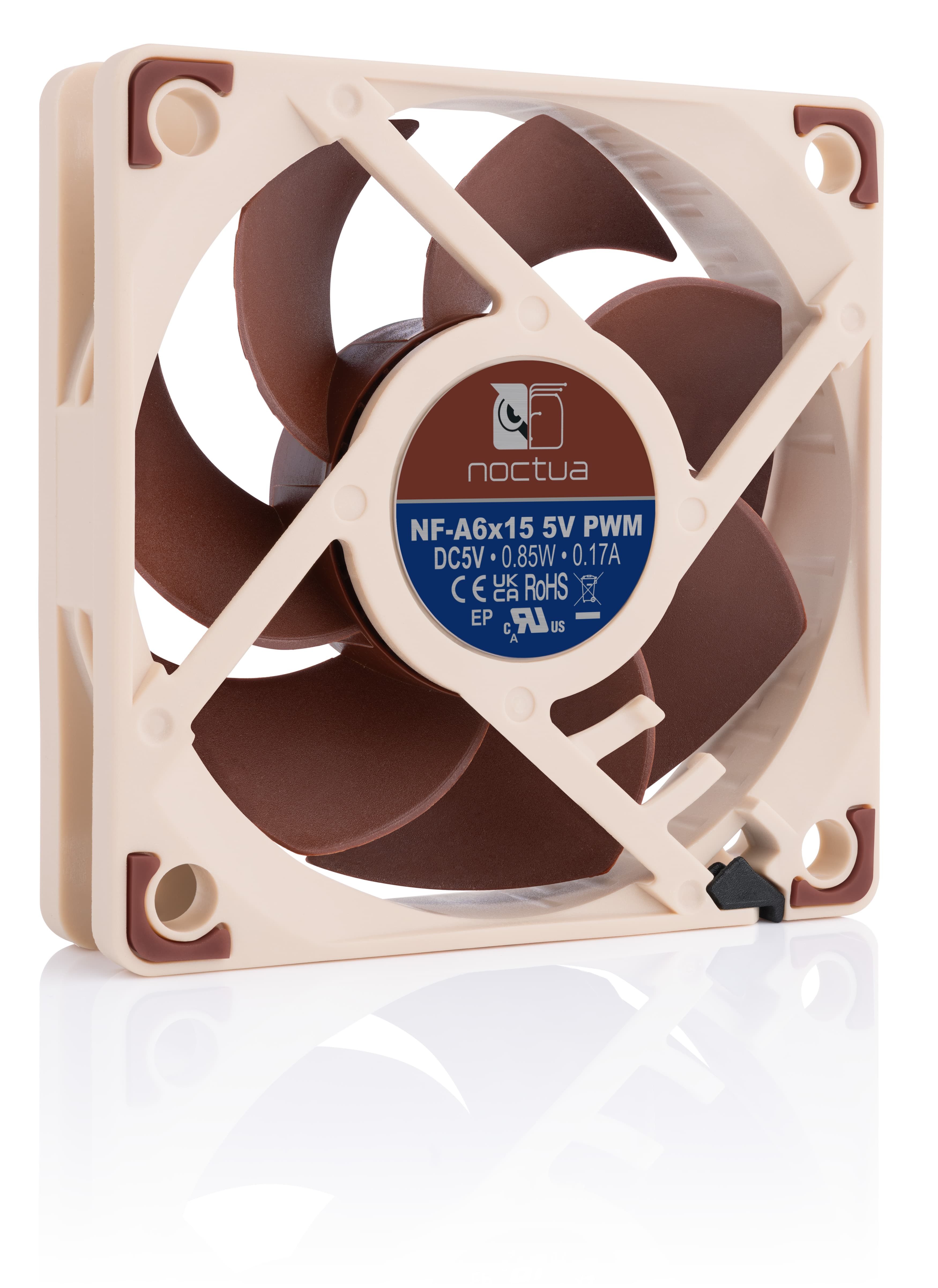

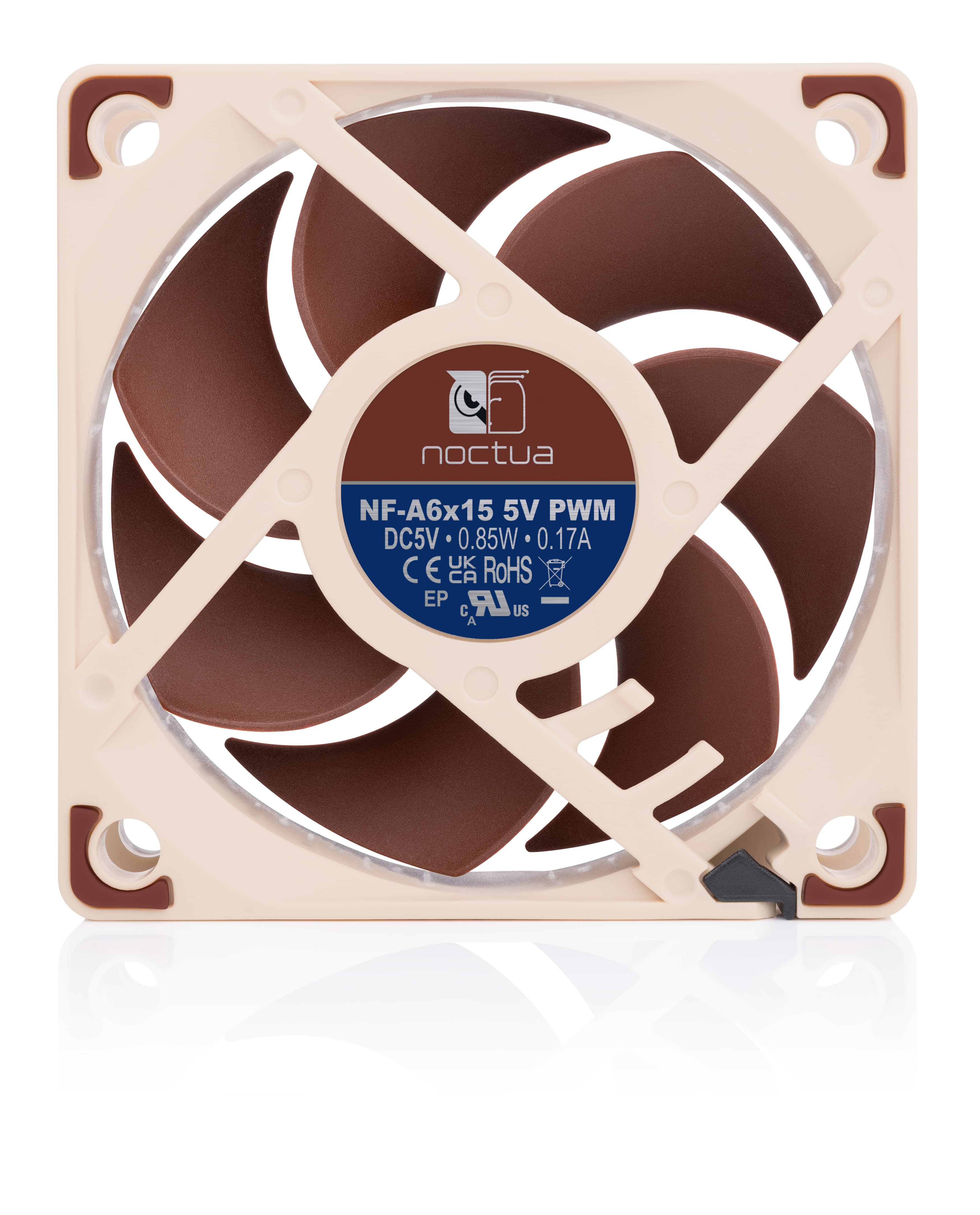

NF-A6x15 5V PWM

60x15mm, 5V premium fan with PWM

15mm slim design

Ideal replacement for noisy or broken 6cm fans

Quiet cooling performance

Outstanding airflow and pressure at minimum noise levels

5V PWM version

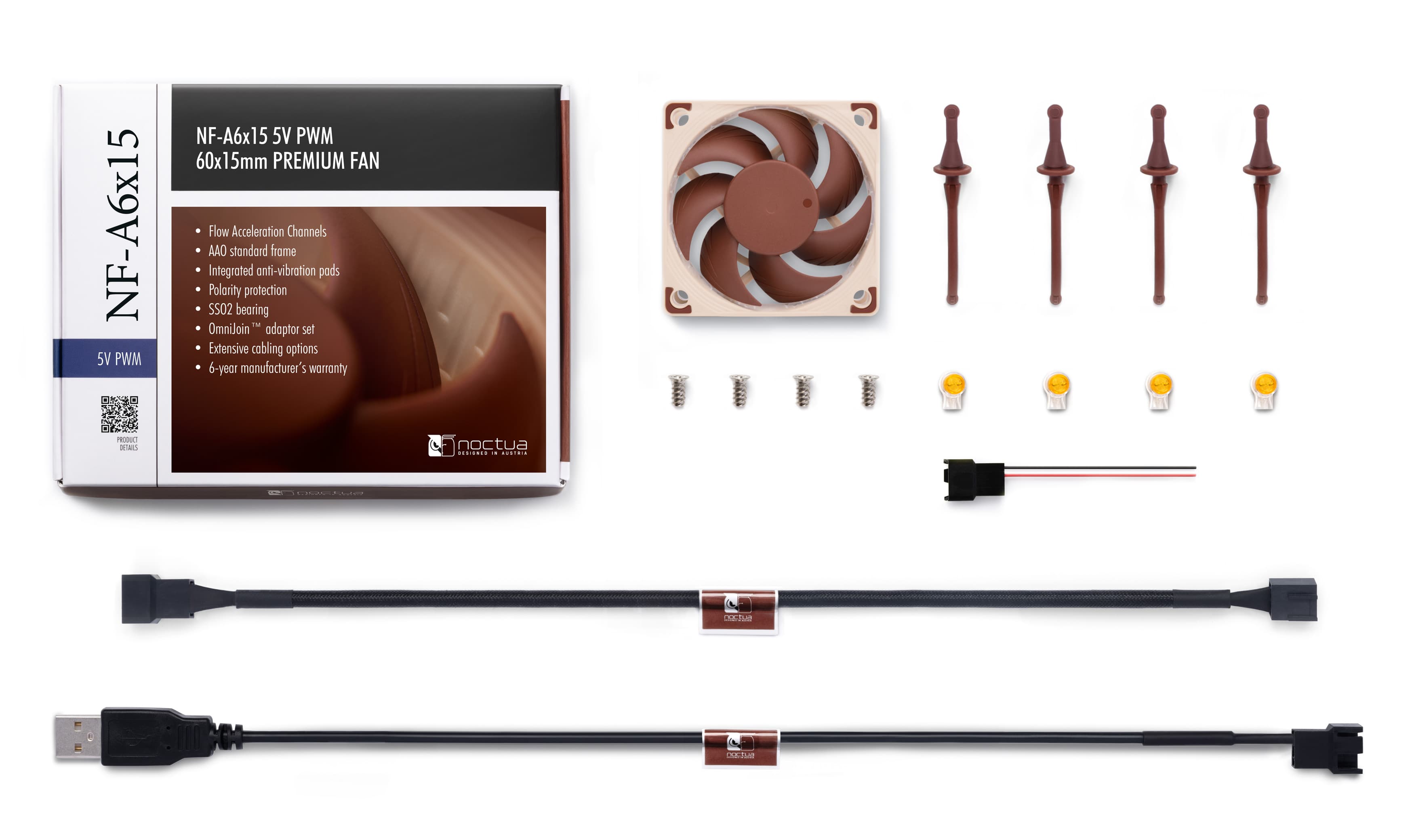

With USB power adaptor cable

5V PWM version, not for use in PCs.

Featuring advanced aerodynamic design measures such as Flow Acceleration Channels and an AAO frame, the NF-A6x15 5V PWM is a PWM-enabled 5V variant of Noctua’s highly optimised, premium-quality quiet 60x15mm fan. The custom-designed NE-FD3 5V PWM IC that integrates Smooth Commutation Drive technology and Noctua’s reference-class SSO2 bearing guarantee superb running smoothness and excellent long-term stability. Topped off with modular cabling, the OmniJoin™ Adaptor Set and a 6-year manufacturer’s warranty, the NF-A6x15 5V PWM is a premium choice for demanding 5V applications that require PWM control.


Key features

AAO frame

Noctua's AAO (Advanced Acoustic Optimisation) frames feature integrated anti-vibration pads as well as Noctua's proprietary Stepped Inlet Design and Inner Surface Microstructures, both of which further refine the fan's performance/noise efficiency.

Diagram of Noctua's SSO2 fan bearing. Blue arrows show magnetic self-stabilization, green dashed lines indicate magnetic field.

SSO2 bearing

The NF-A6x15 features the further optimised second generation of Noctua’s renowned, time-tested SSO bearing. With SSO2, the rear magnet is placed closer to the axis to provide even better stabilisation, precision and durability.

Integrated anti-vibration pads

Integrated anti-vibration pads made from extra-soft silicone minimise the transmission of minute vibrations while maintaining full compatibility with all standard screws and most other mounting mechanisms.

Flow Acceleration Channels

The NF-A6x15 impeller features suction side Flow Acceleration Channels. By speeding up the airflow at the crucial outer blade regions, this measure reduces suction side flow separation and thus leads to better efficiency and lower vortex noise.
