Key specifications
Socket compatibility | AM5, AM4, LGA1700, LGA1851, LGA1156, LGA1155, LGA1150, LGA1151, LGA1200 |
Total height | 110 mm |
Fan configuration | 1x 92x92x25mm |
NSPR | 88 |
Colour | Brown |
Warranty | 6 years |

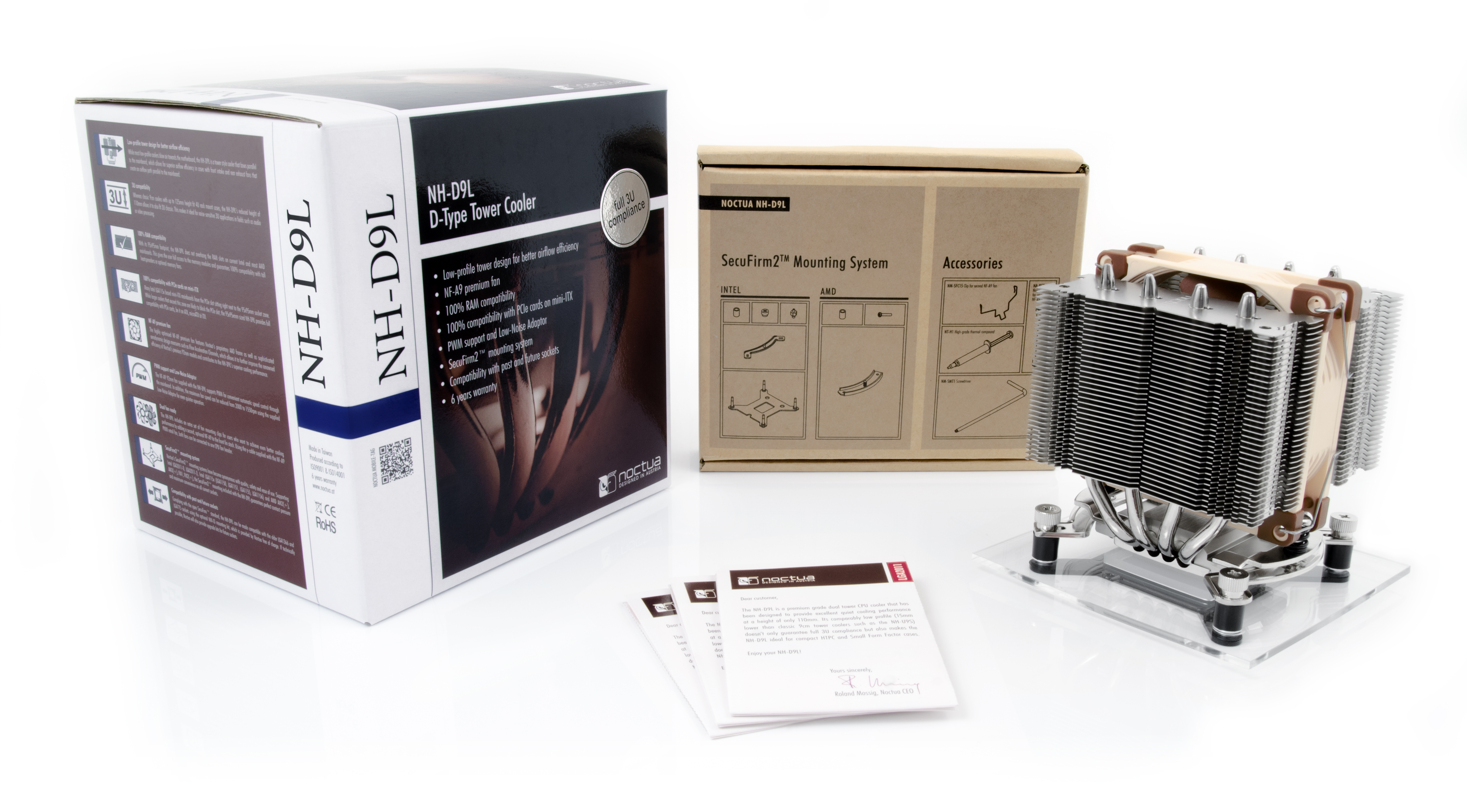

Scope of delivery
- NF-A9 PWM premium fan
- NA-RC7 Low-Noise Adaptor (L.N.A.)
- NT-H1 high-grade thermal compound
- SecuFirm2™ mounting kit
- Fan-clips for second NF-A9
- Noctua metal case-badge
Extended specifications
Fan: NF-A9 PWM
Size (Form factor) | 92 x 92 x 25 mm |
Speed range | 0 – 2000 rpm |
Airflow (max.) | 78.9 m³/h (46.44 CFM) |
Acoustical noise (max.) | 22.8 dB(A) |
Static pressure (max.) | 2.28 mm H₂O |
Rated voltage | 12 V |
Input power (typical) | 1.12 W |
Connector | 4-pin |
Colour | Brown |
Warranty | 6 years |
Mechanical specifications
Height with fan(s) | 110 mm |
Height without fan(s) | 110 mm |
Width with fan(s) | 95 mm |
Width without fan(s) | 95 mm |
Depth with fan(s) | 95 mm |
Depth without fan(s) | 95 mm |
Weight with fan(s) | 531 g |
Material: heatsink base | Copper, nickel plated |
Material: heatsink fins | Aluminium, nickel plated |
Material: heatpipes | Copper, nickel plated |
Interface heatpipes/heatsink fins | Soldered |
Colour | Brown |
Number of heatpipes | 4 |
Heatpipe diameter | 6 mm |
Fin count | 35 |
Mounting hole pitch | 83 mm |
Rack unit compatibility | 5U, 3U, 4U |
Base size | 38 x 40 mm |
Performance specifications
NSPR | 88 |
Logistical specifications
Packaging dimensions | 179 x 179 x 156 mm |
Packaging weight (including product) | 1100 g |
EAN | 4716123315582 |
UPC | 842431012487 |
Packaging unit | 12 pcs |
Packaging unit dimensions | 404 x 496 x 384 mm |
Packaging unit weight | 14.5 kg |
