NH-L9a-AM4 chromax.black
Low profile cooler for AMD AM4
Ultra-compact low-profile
37mm total height, 100% RAM- and PCIe-compatibility
Slim NF-A19x14 92mm fan
With PWM support and Low-Noise Adaptor
chromax.black edition
With a black coated heatsink and chromax.black fan
Key specifications
Socket compatibility | AM4 |
Total height | 37 mm |
Fan configuration | 1x 92x92x14mm |
NSPR | 61 |
Colour | Black |
Warranty | 6 years |

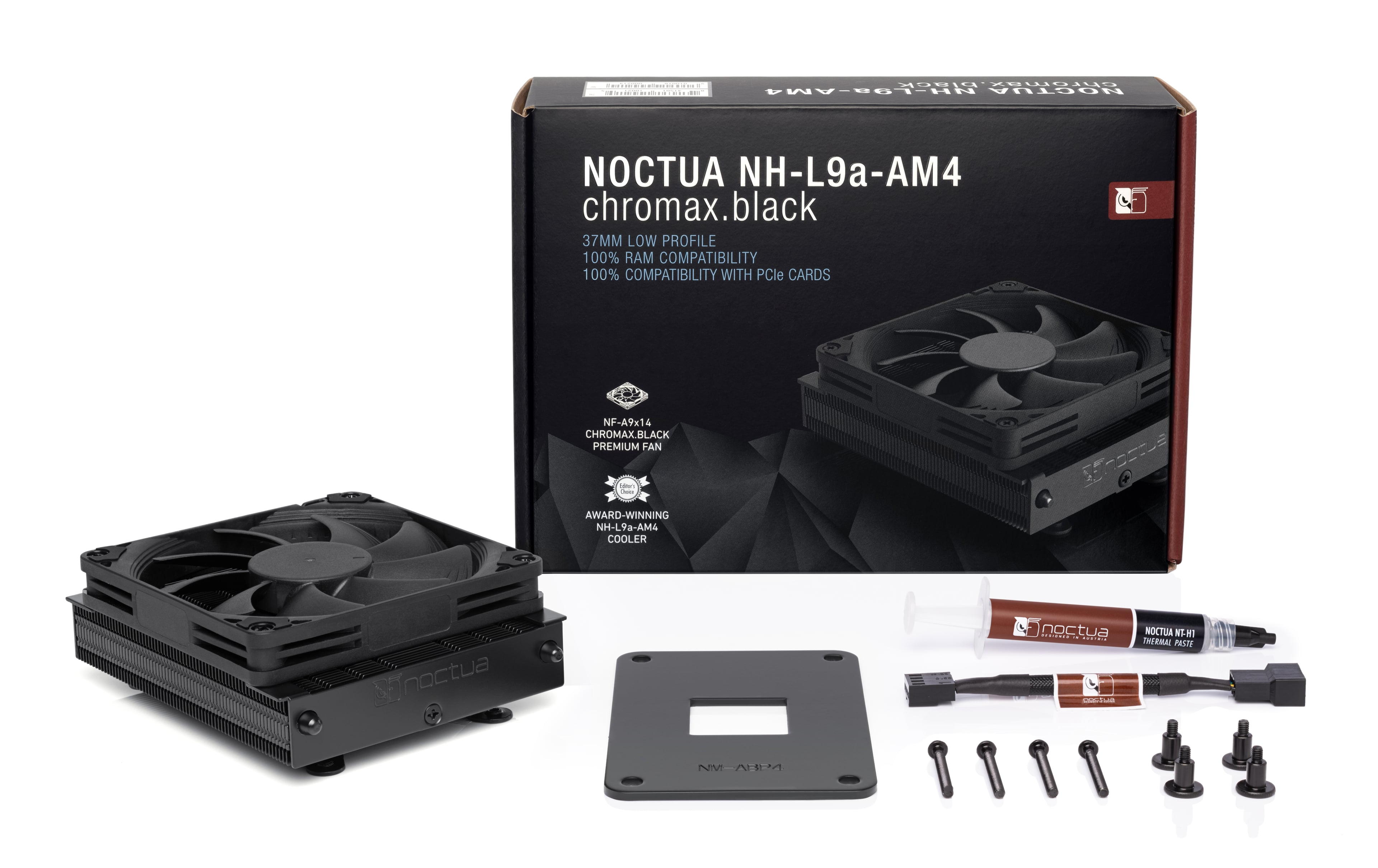

Scope of delivery
- Black NH-L9a-AM4 heatsink
- NF-A9x14 HS-PWM chromax.black premium fan
- NA-RC7 Low-Noise Adaptor (L.N.A.)
- NT-H1 high-grade thermal compound
- Black SecuFirm2™ AM4 mounting kit
- Black screws for 92x92x25mm fans
- Noctua metal case-badge
Extended specifications
Fan: NF-A9x14 HS-PWM chromax.black
Size (Form factor) | 92 x 92 x 14 mm |
Speed range | 0 – 2500 rpm |
Airflow (max.) | 57.5 m³/h (33.84 CFM) |
Acoustical noise (max.) | 23.6 dB(A) |
Static pressure (max.) | 2.11 mm H₂O |
Input power (typical) | 1.848 W |
Connector | 4-pin |
Colour | Black |
Warranty | 6 years |
Mechanical specifications
Height with fan(s) | 37 mm |
Height without fan(s) | 23 mm |
Width with fan(s) | 114 mm |
Width without fan(s) | 114 mm |
Depth with fan(s) | 92 mm |
Depth without fan(s) | 92 mm |
Weight with fan(s) | 465 g |
Weight without fan(s) | 390 g |
Material: heatsink base | Copper, nickel plated |
Material: heatsink fins | Aluminium, nickel plated |
Material: heatpipes | Copper, nickel plated |
Interface heatpipes/heatsink fins | Soldered |
Colour | Black |
Number of heatpipes | 2 |
Heatpipe diameter | 6 mm |
Fin count | 67 |
Rack unit compatibility | 5U, 4U, 3U, 2U |
Base size | 40,8 x 40 mm |
Performance specifications
NSPR | 61 |
Logistical specifications
Packaging dimensions | 169 x 150 x 48 mm |
Packaging weight (including product) | 730 g |
EAN | 9010018000214 |
UPC | 841501100215 |
Packaging unit | 24 pcs |
Packaging unit dimensions | 458 x 358 x 235 mm |
Packaging unit weight | 18.3 kg |
