Discontinued

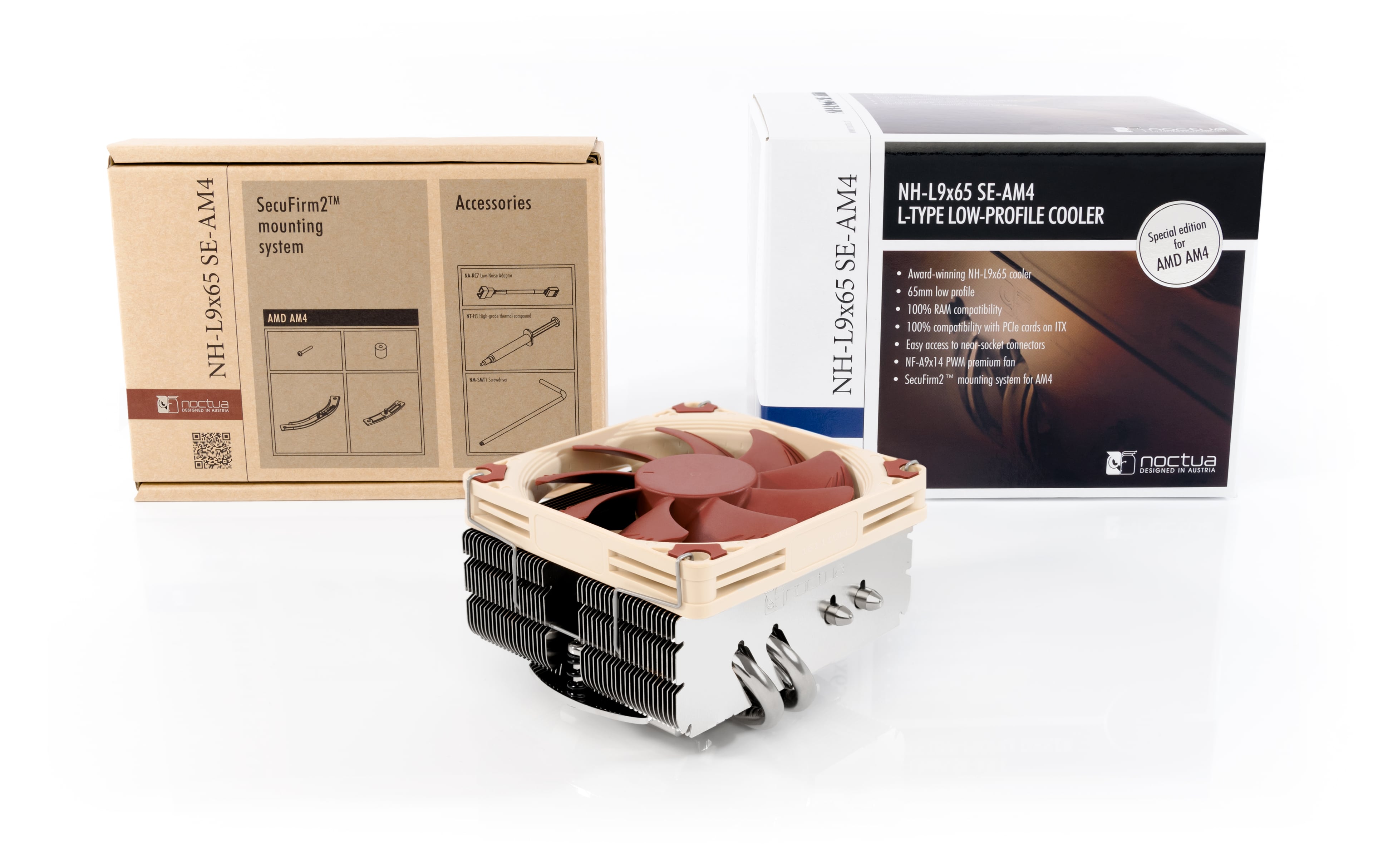

NH-L9x65 SE-AM4
Low profile cooler for AMD AM4/AM5
Compact low-profile design
65mm height for small form factor systems
Slim NF-A19x14 92mm fan
With PWM support and Low-Noise Adaptor
Special edition for AM4/AM5
Includes AMD AM4/AM5 mounting hardware only
Key specifications
Socket compatibility | AM5, AM4 |
Total height | 65 mm |
Fan configuration | 1x 92x92x14mm |
NSPR | 67 |
Colour | Brown |
Warranty | 6 years |
Scope of delivery
- NF-A9x14 HS-PWM premium fan
- NA-RC7 Low-Noise Adaptor (L.N.A.)
- NT-H1 high-grade thermal compound
- SecuFirm2™ AM4 mounting kit
- Noctua metal case-badge
Extended specifications
Fan: NF-A9x14 HS-PWM
Size (Form factor) | 92 x 92 x 14 mm |
Speed range | 0 – 2500 rpm |
Airflow (max.) | 50.5 m³/h (29.72 CFM) |
Acoustical noise (max.) | 19.9 dB(A) |
Static pressure (max.) | 2.11 mm H₂O |
Input power (typical) | 1.848 W |
Connector | 4-pin |
Colour | Brown |
Warranty | 6 years |
Mechanical specifications
Height with fan(s) | 65 mm |
Height without fan(s) | 51 mm |
Width with fan(s) | 95 mm |
Width without fan(s) | 95 mm |
Depth with fan(s) | 95 mm |
Depth without fan(s) | 95 mm |
Weight with fan(s) | 413 g |
Weight without fan(s) | 340 g |
Material: heatsink base | Copper, nickel plated |
Material: heatsink fins | Aluminium, nickel plated |
Material: heatpipes | Copper, nickel plated |
Interface heatpipes/heatsink fins | Soldered |
Colour | Brown |
Number of heatpipes | 4 |
Heatpipe diameter | 6 mm |
Fin count | 50 |
Mounting hole pitch | 83 mm |
Rack unit compatibility | 5U, 4U, 3U, 2U |
Base size | 38 x 40 mm |
Performance specifications
NSPR | 67 |
Logistical specifications
Packaging dimensions | 185 x 135 x 135 mm |
Packaging weight (including product) | 850 g |
EAN | 9010018000085 |
UPC | 841501100086 |
Packaging unit | 12 pcs |
Packaging unit dimensions | 430 x 385 x 295 mm |
Packaging unit weight | 11 kg |
