NH-P1
Passive CPU cooler
Fanless cooling for high-end CPUs
100% silent cooling through natural convection
Semi-passive option
Add a fan for extra performance headroom
SecuFirm2+™ mounting system
Professional, Torx-based multi-socket mounting
Key specifications
Socket compatibility | AM5, AM4, AM2, AM2+, AM3, AM3+, FM1, FM2, FM2+, LGA1700, LGA1851, LGA1156, LGA1155, LGA1150, LGA1151, LGA1200, LGA2066, LGA2011, LGA2011-3 |
Total height | 158 mm |
NSPR | 42 |
Colour | Brown |
Warranty | 6 years |

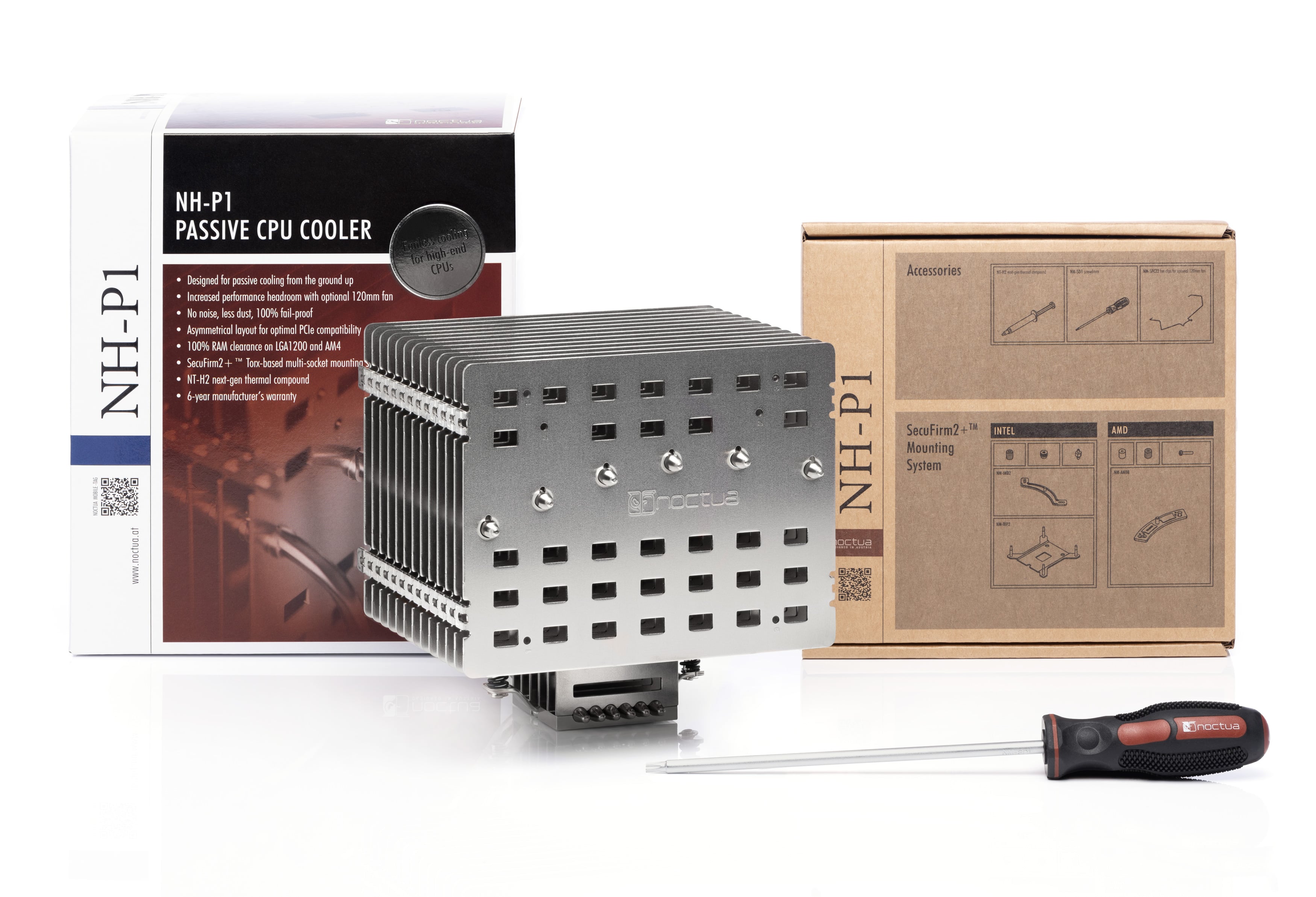

Scope of delivery
- NH-P1 heatsink
- SecuFirm2+™ multi-socket mounting system
- NT-H2 high-grade thermal compound
- NA-CW1 cleaning wipe
- NM-SD1 Torx® T20 screwdriver
- Fan clips for optional 120mm fan
- Noctua metal case-badge
Extended specifications
Mechanical specifications
Height with fan(s) | 158 mm |
Height without fan(s) | 158 mm |
Width without fan(s) | 154 mm |
Depth without fan(s) | 152 mm |
Weight without fan(s) | 1180 g |
Material: heatsink base | Copper, nickel plated |
Material: heatsink fins | Aluminium, nickel plated |
Material: heatpipes | Copper, nickel plated |
Interface heatpipes/heatsink fins | Soldered |
Colour | Brown |
Number of heatpipes | 6 |
Heatpipe diameter | 6 mm |
Fin count | 13 |
Mounting hole pitch | 83 mm |
Rack unit compatibility | 5U |
Base size | 38 x 40 mm |
Performance specifications
NSPR | 42 |
Logistical specifications
Packaging dimensions | 222 x 191 x 196 mm |
Packaging weight (including product) | 2032 g |
EAN | 9010018000269 |
UPC | 841501100260 |
Packaging unit | 8 pcs |
Packaging unit dimensions | 470 x 410 x 405 mm |
Packaging unit weight | 17.4 kg |
