Key specifications
Socket compatibility | AM5, AM4, LGA1700, LGA1851, LGA1156, LGA1155, LGA1150, LGA1151, LGA1200 |
Total height | 158 mm |
Fan configuration | 2x 120x120x25mm (square) |
NSPR | 169 |
Colour | Black |
Warranty | 6 years |
Scope of delivery

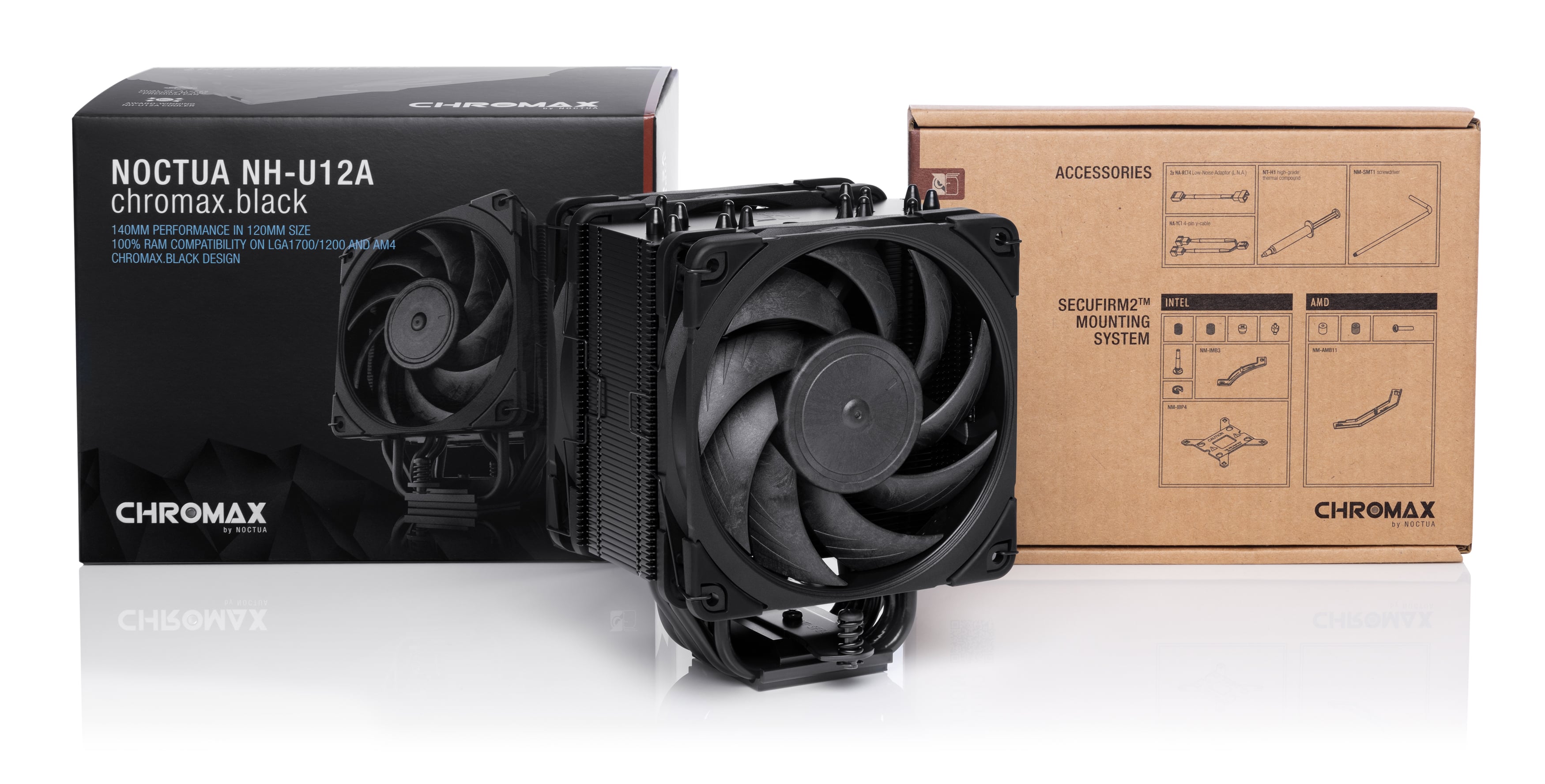

- Black NH-U12A heatsink
- 2x NF-A12x25 PWM chromax.black premium fan
- 2x NA-RC14 Low-Noise Adaptor (L.N.A.)
- NA-YC1 4-pin PWM splitter cable
- NT-H1 high-grade thermal compound
- Black SecuFirm2™ mounting kit
- Noctua metal case-badge
Extended specifications
Fan: NF-A12x25 PWM chromax.black
Size (Form factor) | 120 x 120 x 25 mm (square) |
Speed range | 0 – 2000 rpm |
Airflow (max.) | 102.1 m³/h (60.09 CFM) |
Acoustical noise (max.) | 22.6 dB(A) |
Static pressure (max.) | 2.34 mm H₂O |
Rated voltage | 12 V |
Input power (typical) | 1.2 W |
Connector | 4-pin |
Colour | Black |
Warranty | 6 years |
Mechanical specifications
Height with fan(s) | 158 mm |
Height without fan(s) | 158 mm |
Width with fan(s) | 125 mm |
Width without fan(s) | 125 mm |
Depth with fan(s) | 112 mm |
Depth without fan(s) | 58 mm |
Weight with fan(s) | 1220 g |
Weight without fan(s) | 760 g |
Material: heatsink base | Copper, nickel plated |
Material: heatsink fins | Aluminium, nickel plated |
Material: heatpipes | Copper, nickel plated |
Interface heatpipes/heatsink fins | Soldered |
Colour | Black |
Number of heatpipes | 7 |
Heatpipe diameter | 6 mm |
Fin count | 50 |
Mounting hole pitch | 78 mm |
Rack unit compatibility | 5U |
Base size | 44.1 x 44.1 mm |
Performance specifications
NSPR | 169 |
Logistical specifications
Packaging dimensions | 168 x 216 x 175 mm |
Packaging weight (including product) | 1800 g |
EAN | 9010018000245 |
UPC | 841501100246 |
Packaging unit | 8 pcs |
Packaging unit dimensions | 376 x 465 x 385 mm |
Packaging unit weight | 15.5 kg |
