Discontinued

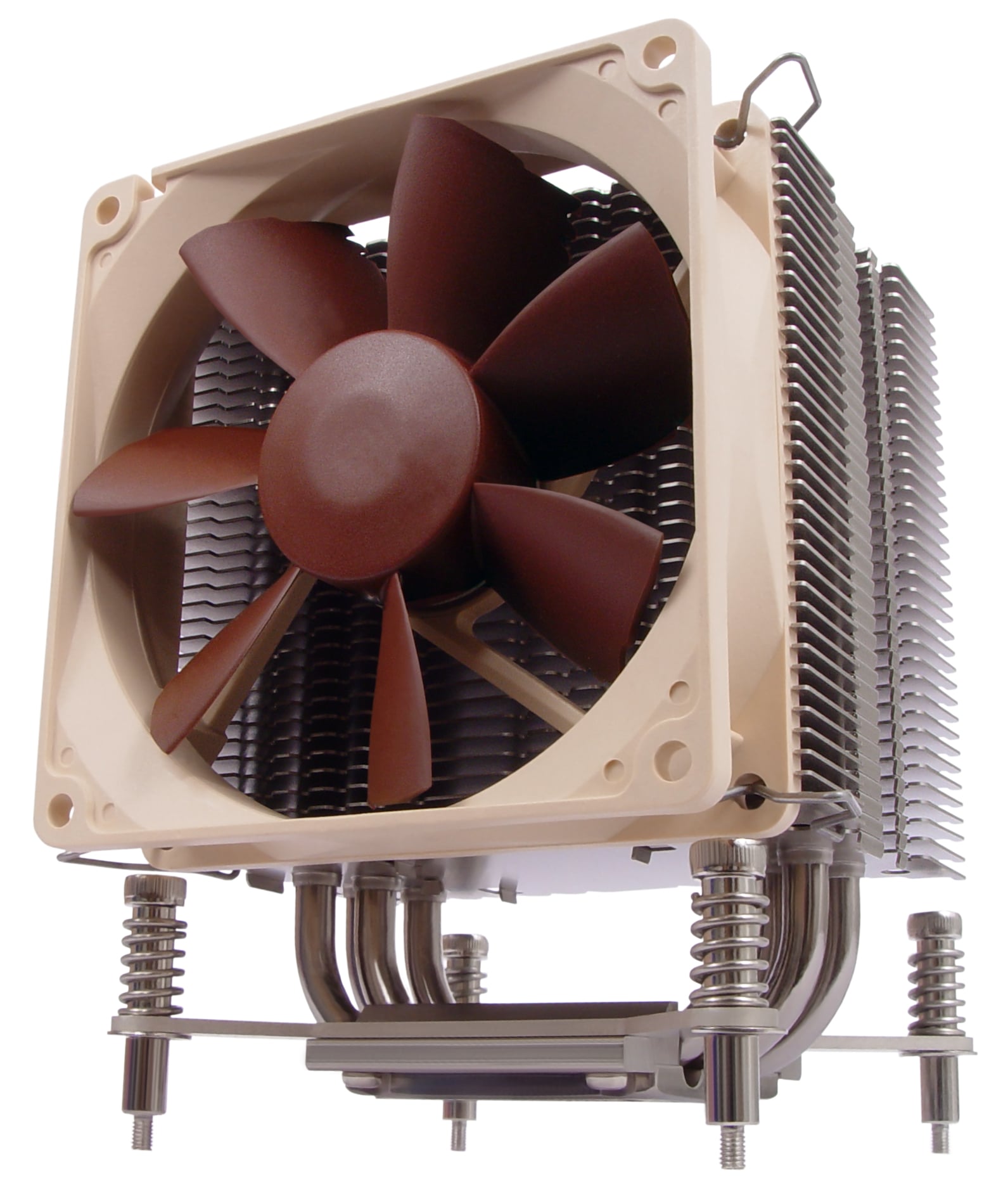

NH-U9DX 1366
U-Type CPU cooler
NH-U9 series
Classic 92mm tower size
Proven NF-B9 92mm fan
Full performance under load, virtually silent at idle!
NT-H1 thermal compound
Proven pro-grade TIM solution
Key specifications
Socket compatibility | LGA1366 (No backplate & Xeon backplate), LGA1356 (Xeon backplate) |
Total height | 122 mm |
Fan configuration | 1x 92x92x25mm |
Colour | Brown |
Warranty | 6 years |
Scope of delivery
- NH-U9DX heatsink
- NF-B9 premium fan
- NM-SFC2 Fan clips
- 2x NA-RC5 Ultra-Low-Noise Adaptor (U.L.N.A.)
- NA-RC3 Low-Noise Adaptor (L.N.A.)
- NT-H1 high-grade thermal compound
- SecuFirm2™ mounting kit for LGA1366
Extended specifications
Fan: NF-B9
Size (Form factor) | 92 x 92 x 25 mm |
Speed range | 0 – 1600 rpm |
Airflow (max.) | 64.3 m³/h (37.85 CFM) |
Acoustical noise (max.) | 17.6 dB(A) |
Static pressure (max.) | 1.61 mm H₂O |
Rated voltage | 12 V |
Connector | 3-pin |
Colour | Brown |
Warranty | 6 years |
Mechanical specifications
Height with fan(s) | 122 mm |
Height without fan(s) | 122 mm |
Width with fan(s) | 96 mm |
Width without fan(s) | 96 mm |
Depth with fan(s) | 90 mm |
Depth without fan(s) | 65 mm |
Weight with fan(s) | 590 g |
Material: heatsink base | Copper, nickel plated |
Material: heatsink fins | Aluminium, nickel plated |
Material: heatpipes | Copper, nickel plated |
Interface heatpipes/heatsink fins | Soldered |
Colour | Brown |
Number of heatpipes | 4 |
Heatpipe diameter | 6 mm |
Fin count | 37 |
Mounting hole pitch | 83 mm |
Rack unit compatibility | 5U, 4U |
Base size | 38 x 40 mm |
Logistical specifications
EAN | 4716123313434 |
