Key specifications
Socket compatibility | AM5, AM4, LGA1700, LGA1851, LGA1156, LGA1155, LGA1150, LGA1151, LGA1200 |
Total height | 125 mm |
Fan configuration | 1x 92x92x25mm |
NSPR | 93 |
Colour | Black |
Warranty | 6 years |
Scope of delivery

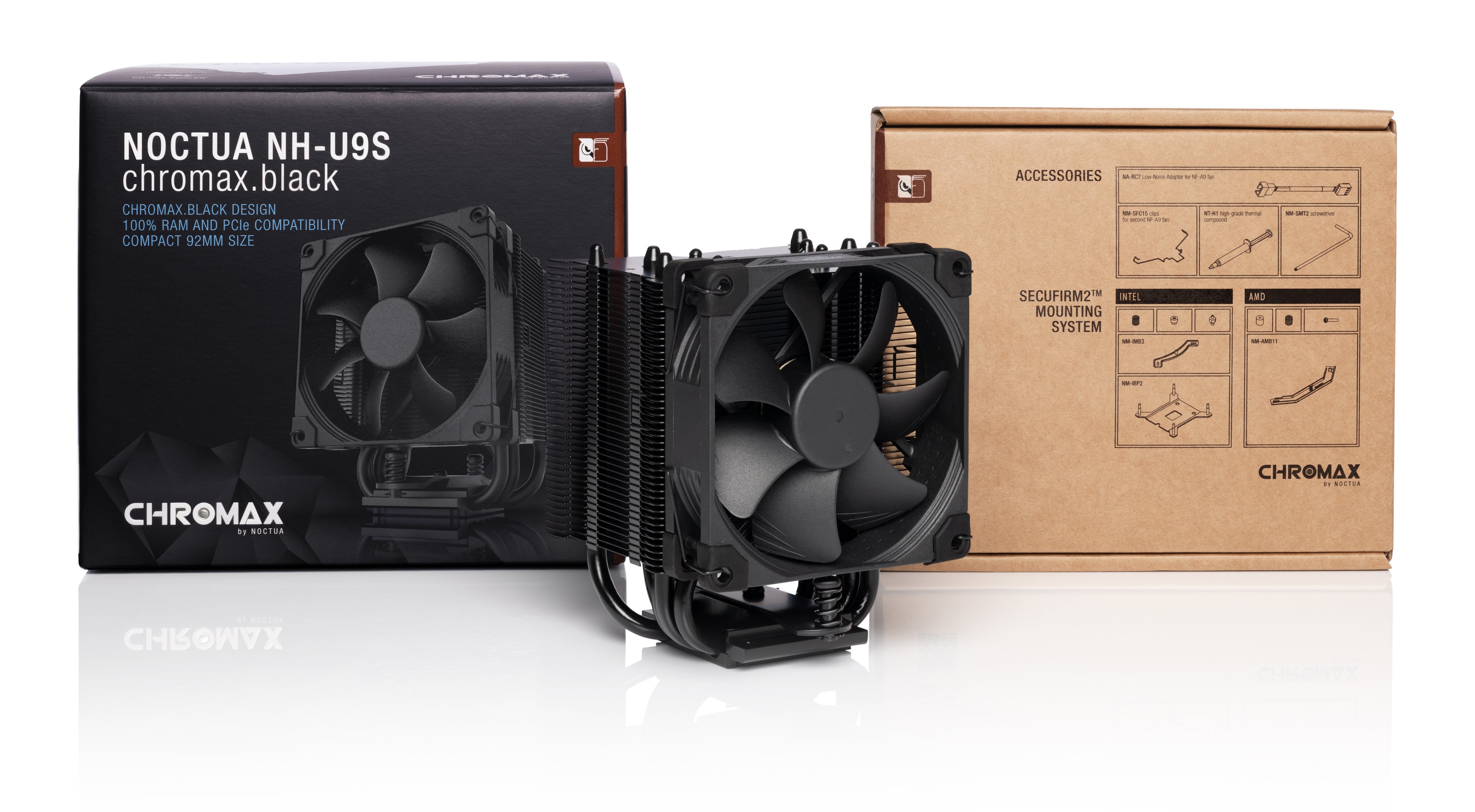

- Black NH-U9S heatsink
- NF-A9 PWM chromax.black premium fan
- NA-RC7 Low-Noise Adaptor (L.N.A.)
- NT-H1 high-grade thermal compound
- Black SecuFirm2™ mounting kit
- Black fan-clips for second NF-A9
- Noctua metal case-badge
Extended specifications
Size (Form factor) | 92 x 92 x 25 mm |
Speed range | 0 – 2000 rpm |
Airflow (max.) | 78.9 m³/h (46.44 CFM) |
Acoustical noise (max.) | 22.8 dB(A) |
Static pressure (max.) | 2.28 mm H₂O |
Rated voltage | 12 V |
Input power (typical) | 1.12 W |
Connector | 4-pin |
Colour | Black |
Warranty | 6 years |
Mechanical specifications
Height with fan(s) | 125 mm |
Height without fan(s) | 125 mm |
Width with fan(s) | 95 mm |
Width without fan(s) | 95 mm |
Depth with fan(s) | 95 mm |
Depth without fan(s) | 68 mm |
Weight with fan(s) | 618 g |
Weight without fan(s) | 512 g |
Material: heatsink base | Copper, nickel plated |
Material: heatsink fins | Aluminium, nickel plated |
Material: heatpipes | Copper, nickel plated |
Interface heatpipes/heatsink fins | Soldered |
Colour | Black |
Number of heatpipes | 5 |
Heatpipe diameter | 6 mm |
Fin count | 43 |
Mounting hole pitch | 78 mm |
Rack unit compatibility | 5U, 4U |
Base size | 38 x 40 mm |
Performance specifications
NSPR | 93 |
Logistical specifications
Packaging dimensions | 164 x 185 x 161 mm |
Packaging weight (including product) | 1160 g |
EAN | 9010018000252 |
UPC | 841501100253 |
Packaging unit | 12 pcs |
Packaging unit dimensions | 370 x 517 x 402 mm |
Packaging unit weight | 15 kg |
