Discontinued

NM-i4189

Mounting kit

Tailor-made for LGA4189

For installing Noctua workstation coolers on Intel's LGA4189 socket

Trusted SecuFirm2™ quality

Outstanding reliability, optimal contact pressure and easy installation

Includes Torx® T30 mounting tool

For an easy, fully Intel-compliant installation

Only compatible with DX-4677, DX-3647, TR4-SP3 & TR5-SP6 series coolers.

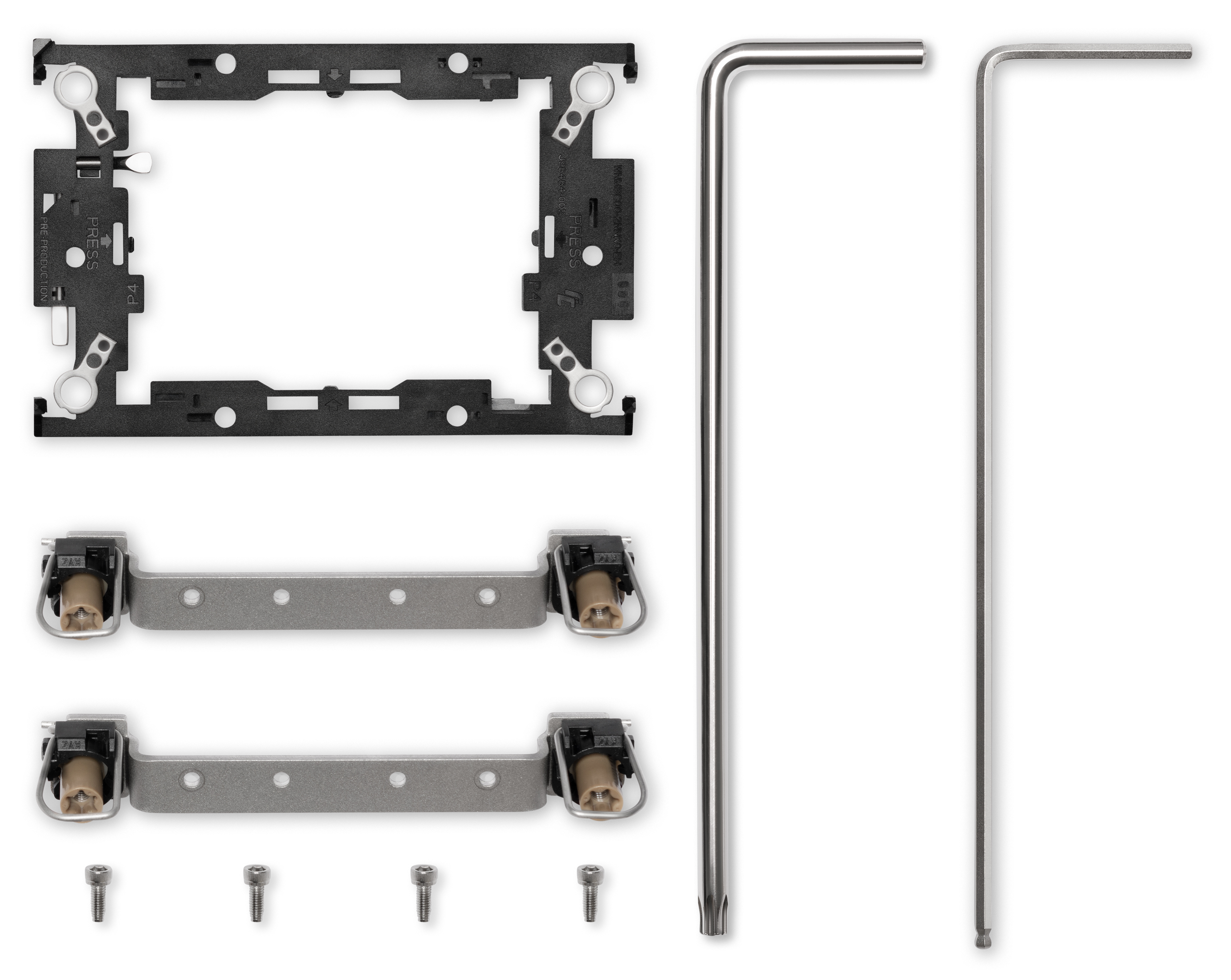

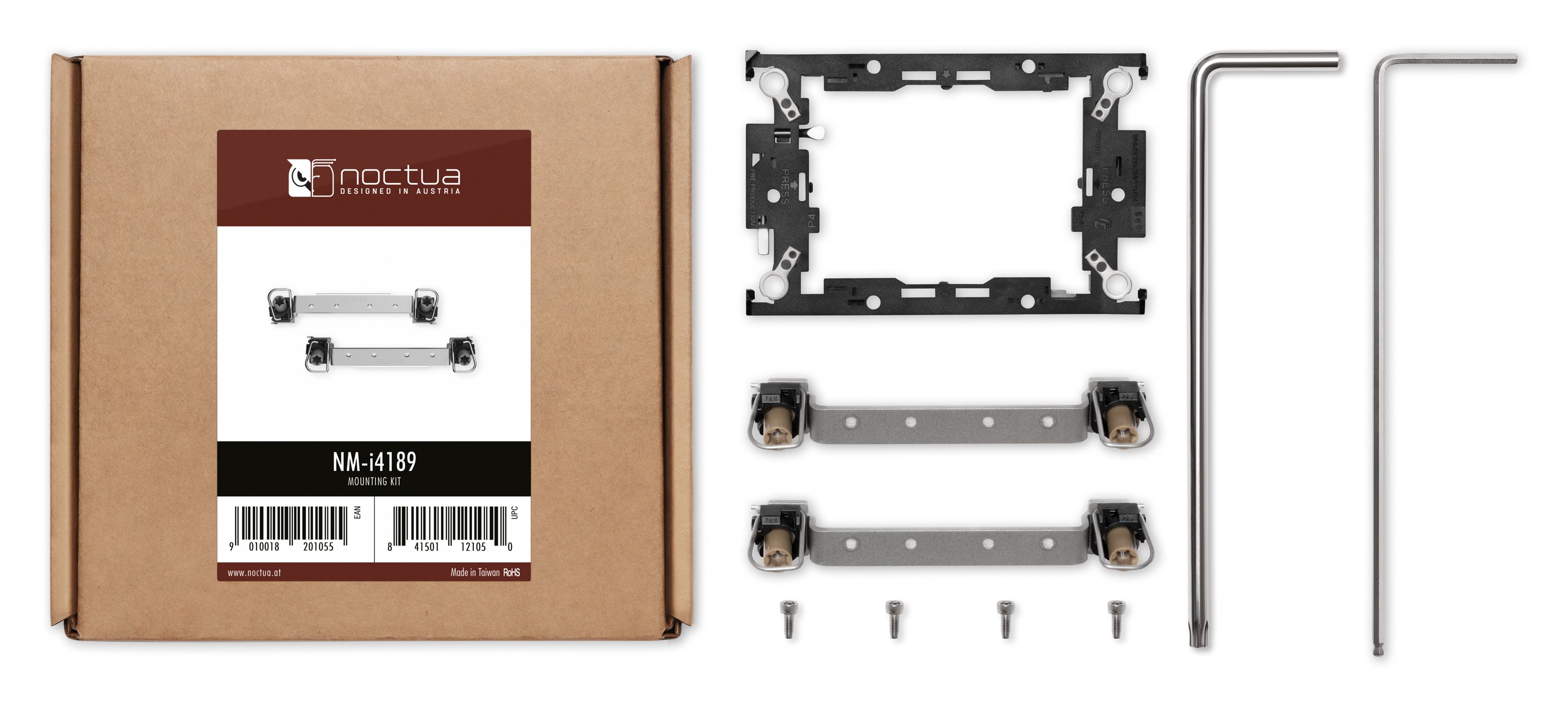

The NM-i4189 mounting-kit enables the installation of Noctua’s DX-3647 and TR4-SP3 series coolers to Intel’s LGA4189 platform (Whitley), for Ice Lake-SP based 3rd generation Xeon Scalable (Platinum, Gold, Silver or Bronze) processors and W-3300 series workstation CPUs (Ice Lake-64L). Integrating standard Intel parts such as the anti-tilt mechanism, Torx® T30 PEEK nuts and LGA4189-4 (P4) CPU carrier frame, the NM-i4189 is fully compliant with Intel’s installation guidelines and provides a familiar mounting procedure for experienced LGA4189 users. A Torx® T30 mounting tool is included.
