NV-FS2
Device cooling fan set
Award-winning NF-A12x25 fan
Combines superior ventilation with outstanding quietness
NV-MPG1 gasket and NV-MPP1 pads
For providing extra airflow to electronic devices, heating radiators, etc.
NV-PS1 230/115V power supply
With plug adaptors for EU, US and UK sockets, for powering directly from the mains
Key specifications
Colour | Black |
Height | 46 mm |
Width | 136 mm |
Depth | 136 mm |
Weight | 354 g |
Total cable length | 2.85 m (112.20 inch) |
Warranty | 6 years |

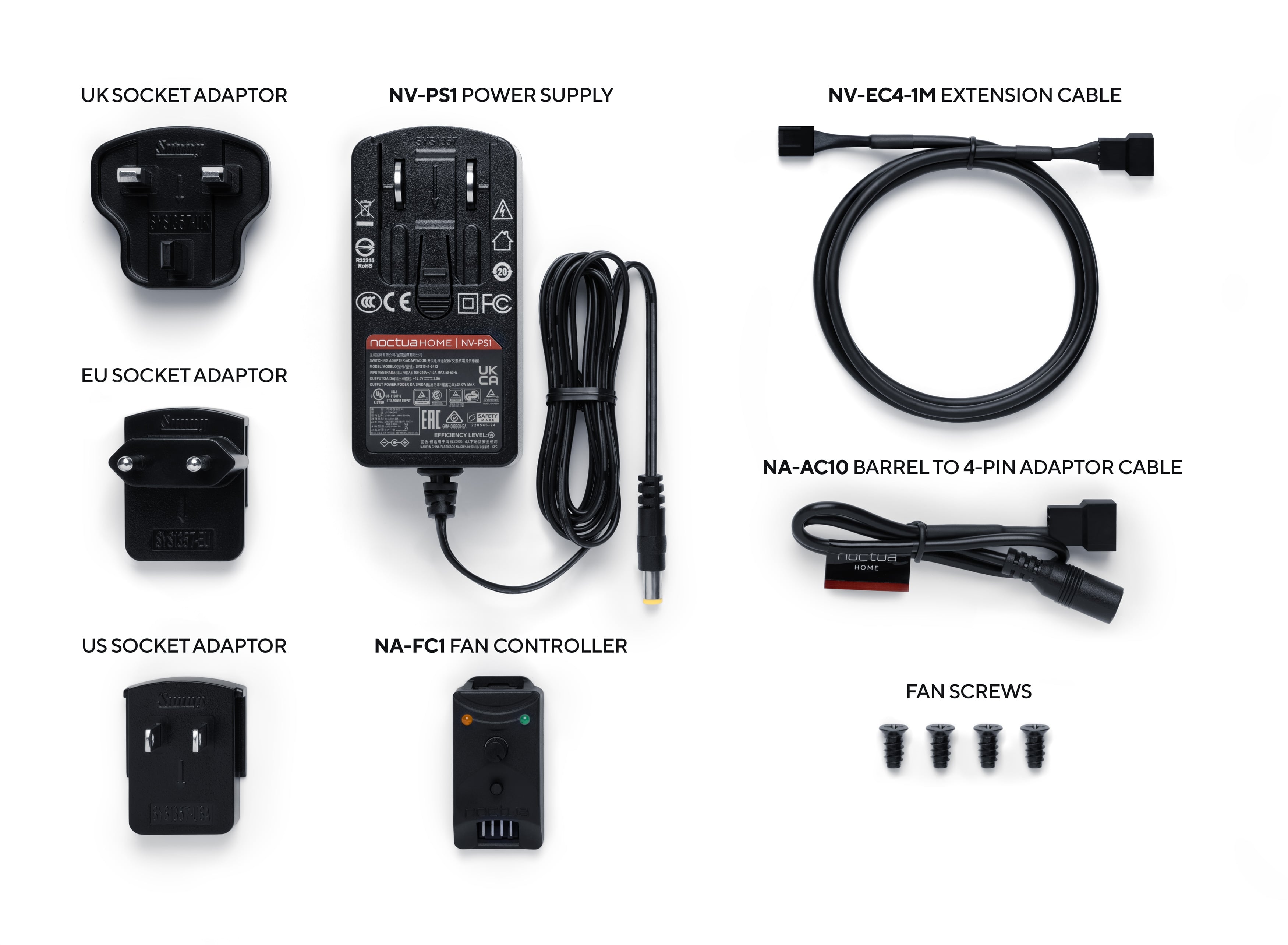

Scope of delivery
- NF-A12x25 PWM chromax.black premium fan
- NV-MPG1-12.black multi-purpose gasket
- 4x NV-MPP1.black multi-purpose pads
- NA-FG1-12 120mm fan grill
- NA-FC1 fan controller
- Cables & Adaptors
- NA-AC10 barrel to 4-pin adaptor cable
- NV-EC4-1m extension cable
- NV-PS1 power supply
- US socket adaptor (Type A)
- EU socket adaptor (Type C)
- UK socket adaptor (Type G)
Extended specifications
Fan: NF-A12x25 PWM chromax.black
Size (Form factor) | 120 x 120 x 25 mm (square) |
Speed range | 0 – 2000 rpm |
Airflow (max.) | 102.1 m³/h (60.09 CFM) |
Acoustical noise (max.) | 22.6 dB(A) |
Static pressure (max.) | 2.34 mm H₂O |
Rated voltage | 12 V |
Input power (typical) | 1.2 W |
Connector | 4-pin |
Colour | Black |
Warranty | 6 years |
Fan controller: NA-FC1
Colour | Black |
Fan connector | 4-pin PWM |
Max. power | 36 W |
Voltage range | 5~12 V |
Max. current | 3 A |
Size | 21 x 25 x 48 mm |
Weight | 15 g |
Fan compatibility | all Noctua 12V PWM and 5V PWM fans, many third party PWM fans (Make sure to use the correct power source, i.e. 5V for 5V fans, 12V for 12V fans). |
Warranty | 6 years |
Airflow amplifier: NV-AA1-12
Colour | Black |
Fan size | 120 mm |
Material | ABS (Acrylonitrile butadiene styrene) |
Warranty | 6 years |
Power supply: NV-PS1
Colour | Black |
Output connector | barrel connector (5.5 mm outer diameter, 2.1mm inner diameter), with
4-pin PWM adaptor |
Output voltage | 12 V |
Max. output power | 24 W |
Input connectors (included) | type C (CEE 7/16, for Europe, Russia, Brazil, South Africa, etc.), type A (NEMA 1-15, for USA, Canada, Mexico, Japan, etc.), type G (BS 1363, for UK, Ireland, Singapore, etc.) |
Input voltage | 100~240 V AC |
Cable length | 1.35 m (53.15 inch) |
Dimensions | 92.5 x 45.3 x 36.5 mm |
Protection features | OVP (Over voltage protection), OCP (Over current protection), SCP (Short-circuits protection) |
Warranty | 6 years |
Anti-vibration gasket: NV-MPG1-12.black
Material | Silicone rubber |
Fan compatibility | Compatible with most square 120x25mm Noctua fans. |
Dimensions | 135 x 135 x 16 mm |
Weight | 80 g |
Warranty | 6 years |
Anti-vibration pads: NV-MPP1.black Sx4
Material | Silicone rubber |
Fan compatibility | Compatible with most square 120x25mm & 140x25mm Noctua fans. |
Warranty | 6 years |
Fan grill: NA-FG1-12 Sx2
Colour | Black |
Fan size | 120 mm |
Material | Steel |
Warranty | 6 years |
Logistical specifications
Packaging dimensions | 53 x 194 x 236 mm |
Packaging weight (including product) | 730 g |
EAN | 9010018900217 |
UPC | 841501190216 |
Packaging unit | 10 pcs |
Packaging unit dimensions | 231 x 496 x 293 mm |
Packaging unit weight | 8.1 kg |
