NV-PS1

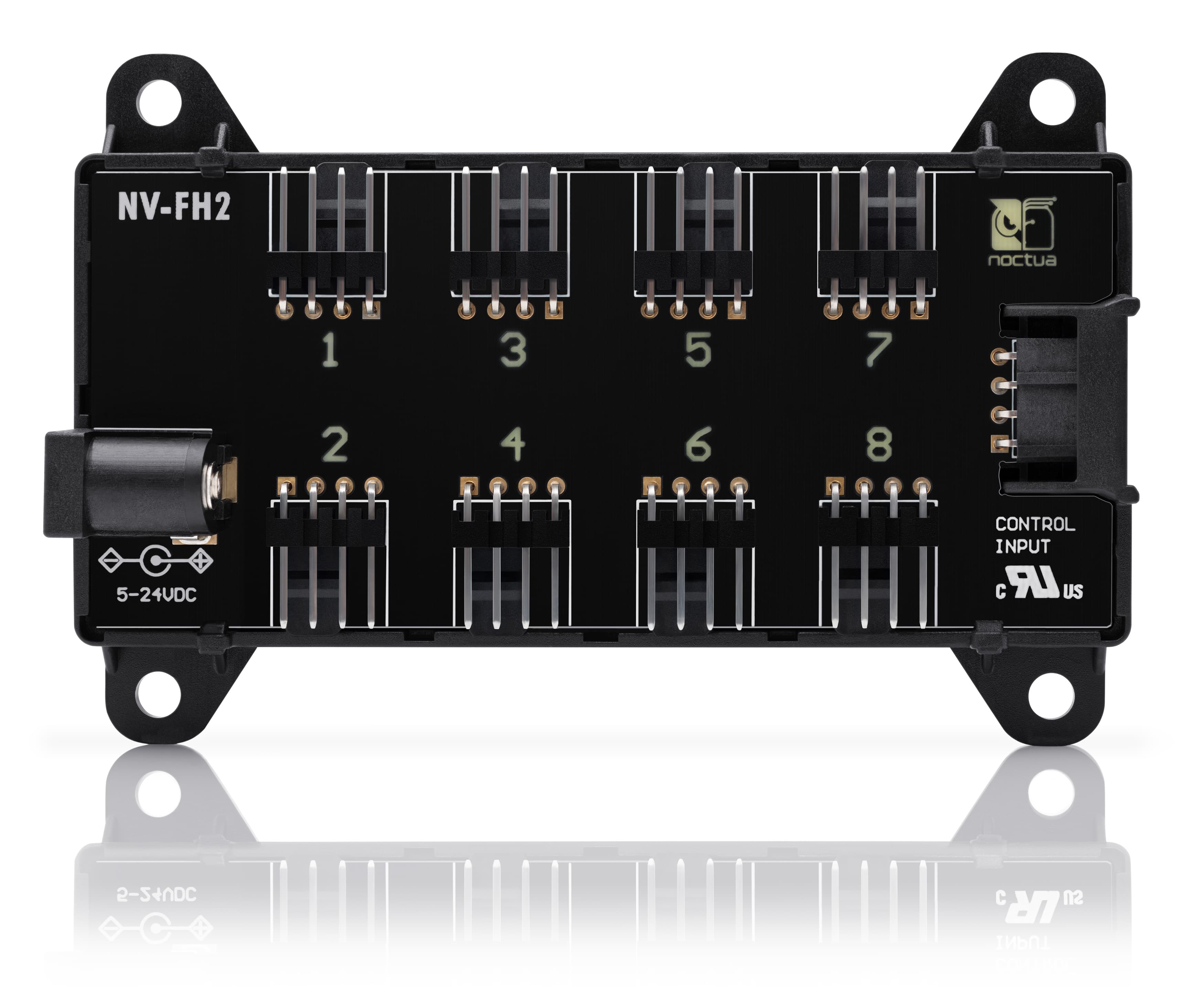

With a maximum output power of 24W, the NV-PS1 has the capacity to run several power-hungry high-speed fans using optional NA-YC1 y-cables or fan hubs such as the NA-FH1 or NV-FH2. At the same time, it runs highly efficient even if only a single, low power fan is connected.

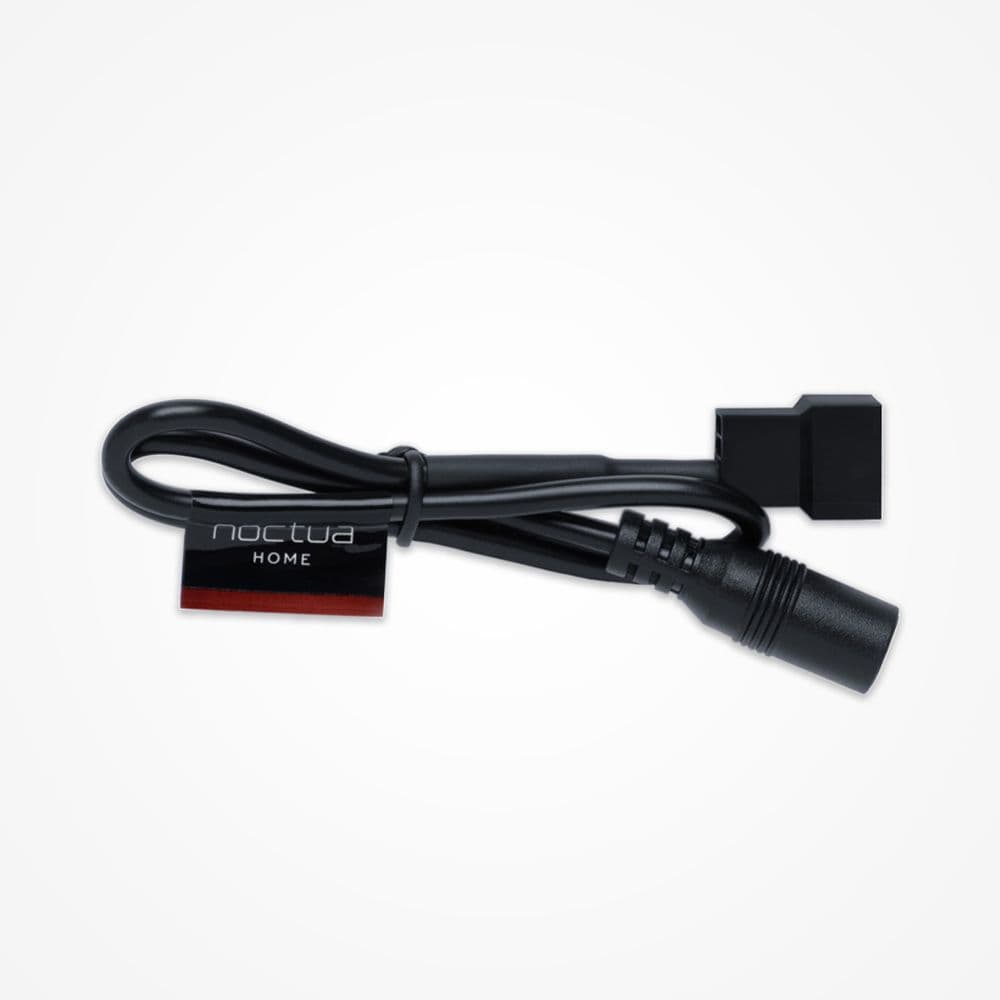

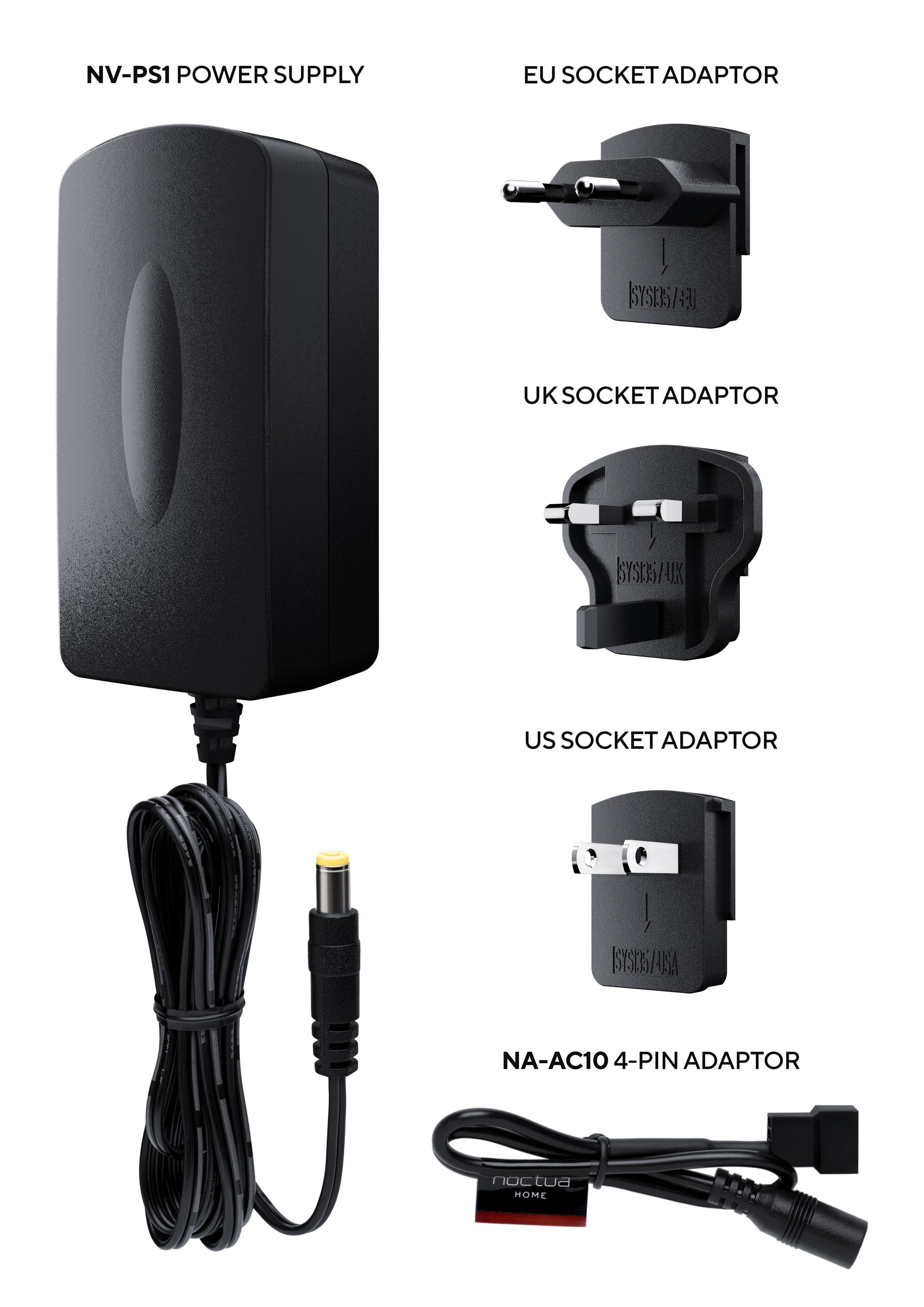

The NV-PS1 features a native 5.5mm (outer diameter) / 2.1mm (inner diameter) barrel type connector and includes an NA-AC10 adaptor to 4-pin Molex that allows for connecting all Noctua 12V fans (both 3-pin and 4-pin) as well as many third party 12V fans, y-cables or fan hubs with 4-pin input connectors.

The NV-PS1 can be nicely combined with the optional NA-FC1 controller in order to manually adjust the RPM speed of 4-pin PWM fans. When used with optional NA-YC1 splitter cables or NA-FH1 fan hubs, the NA-FC1 can be interconnected for controlling multiple fans simultaneously.

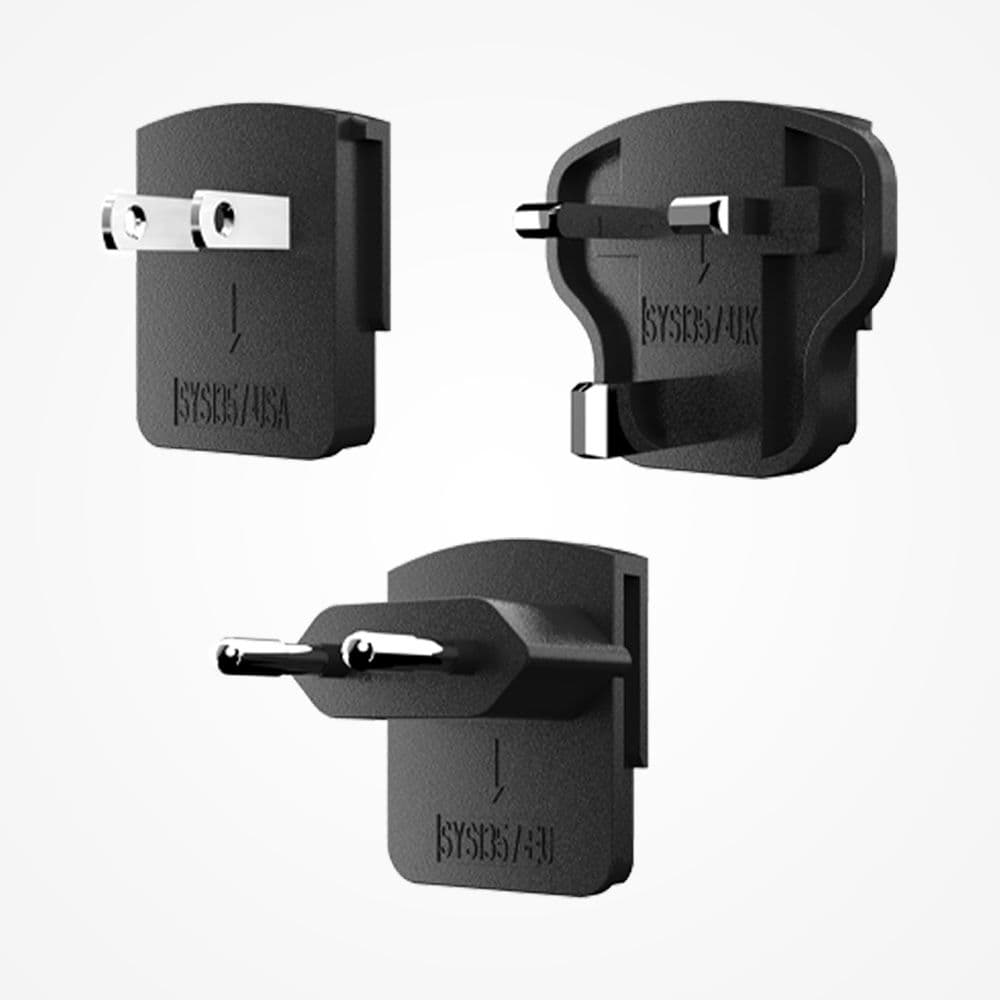

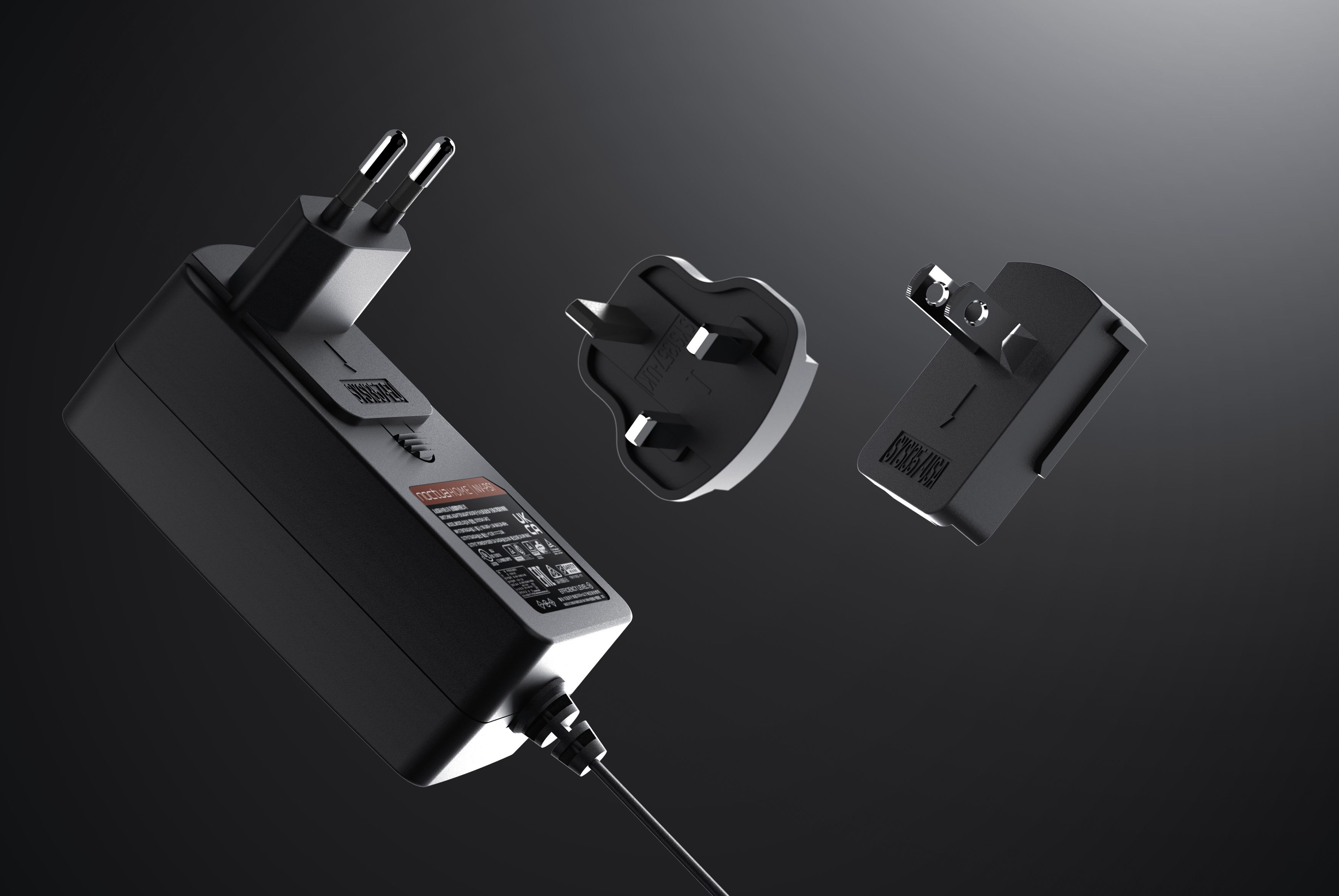

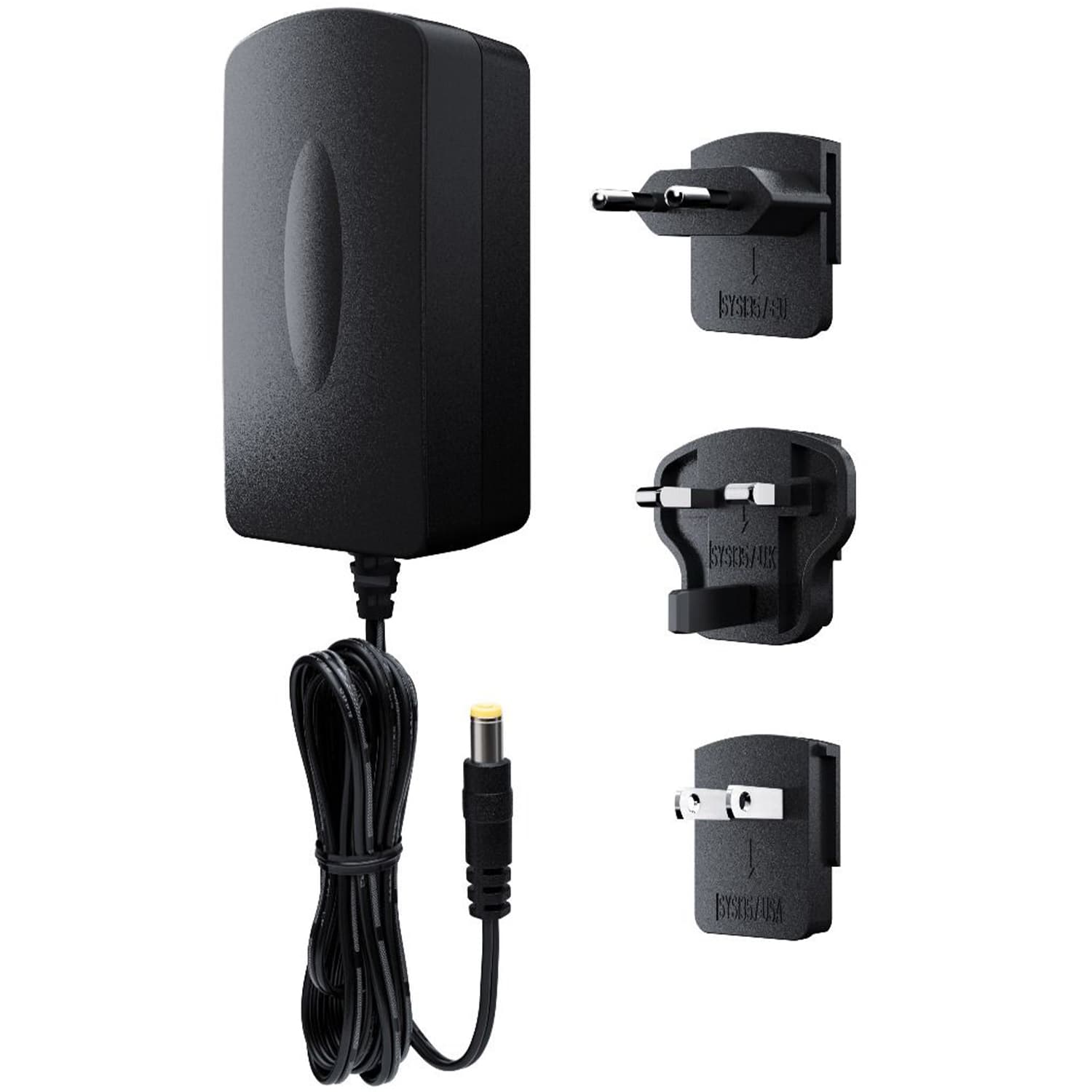

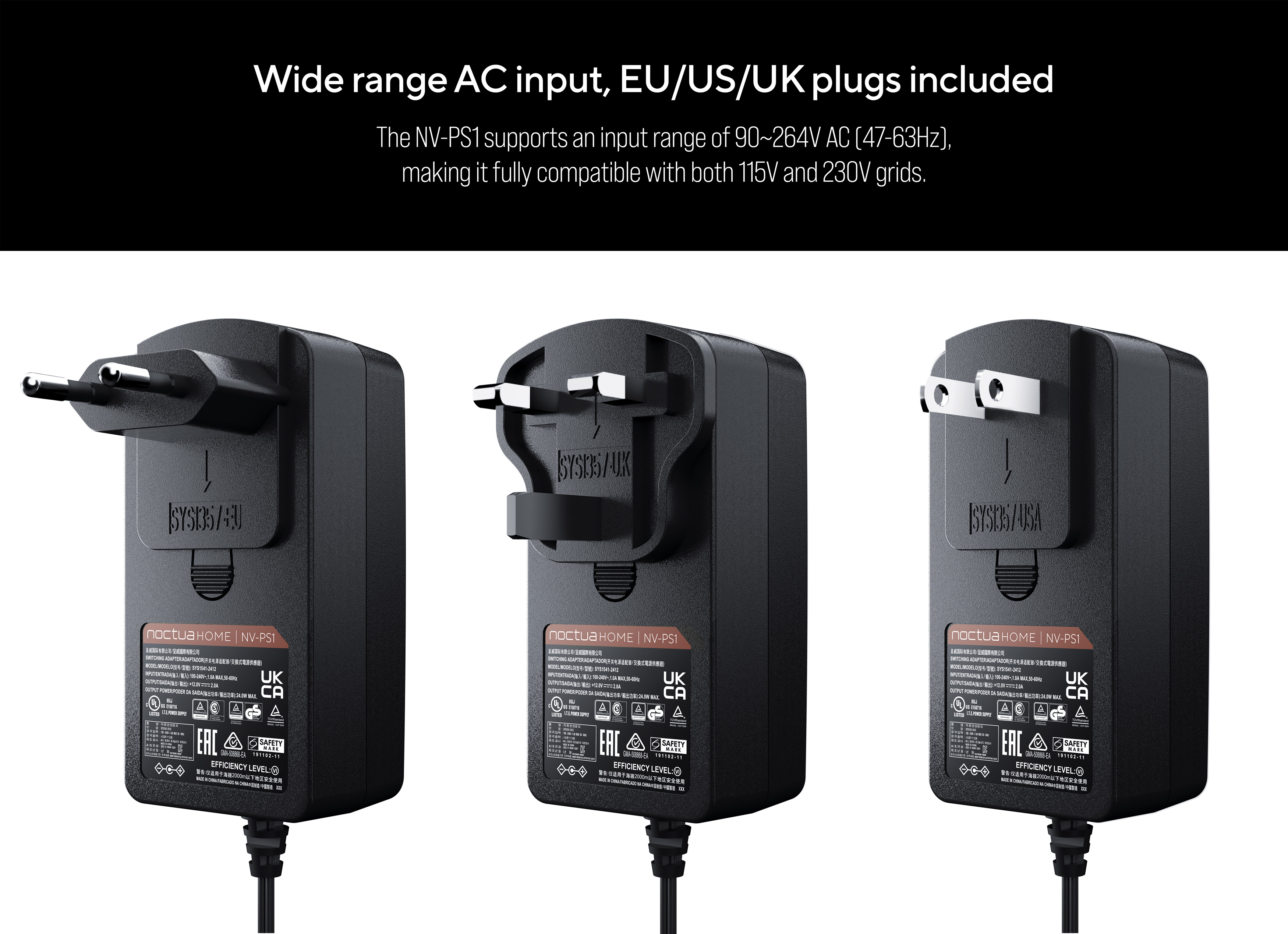

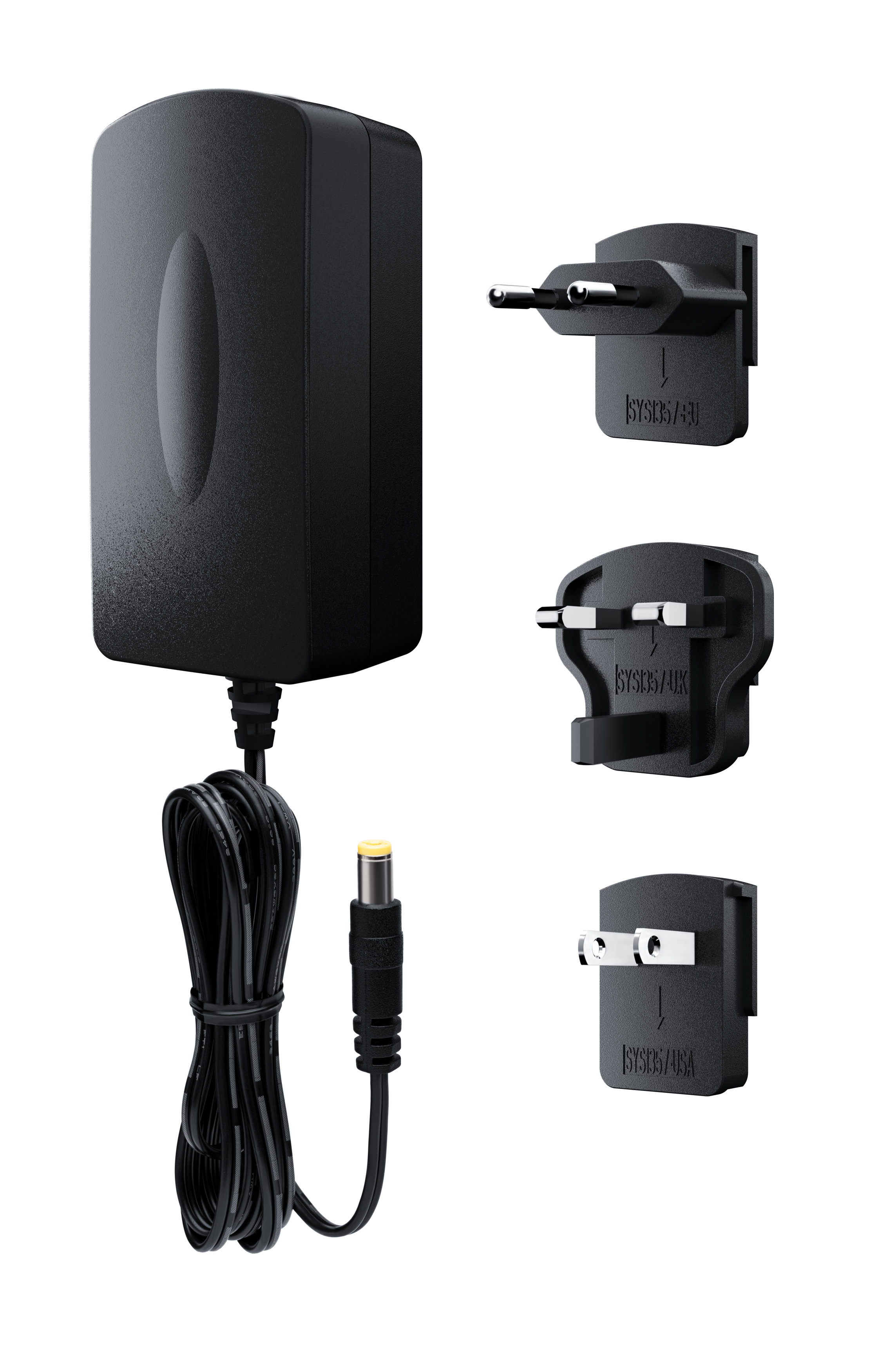

The NV-PS1 supports an input range of 90~264V AC (47-63Hz), making it fully compatible with both 115V and 230V grids. Including modular connectors for type C (CEE 7/16, for Europe, Russia, Brazil, South Africa, etc.), type A (NEMA 1-15, for USA, Canada, Mexico, Japan, etc.) and type G (BS 1363, for UK, Ireland, Singapore, etc.), the NV-PS1 is fit to run in a broad variety of environments.
