NV-PS1
Power adapter
24W AC to 12V DC switching power supply
Ideal for powering 12V PC fans off the mains
Wide range AC input
With plug adaptors for EU, US and UK sockets
Extensive safety features
Protection against overvoltage, overcurrent, short-circuits & fully CE/UKCA compliant
Key specifications
Colour | Black |
Output connector | barrel connector (5.5 mm outer diameter, 2.1mm inner diameter), with
4-pin PWM adaptor |
Output voltage | 12 V |
Max. output power | 24 W |
Input connectors (included) | type C (CEE 7/16, for Europe, Russia, Brazil, South Africa, etc.), type A (NEMA 1-15, for USA, Canada, Mexico, Japan, etc.), type G (BS 1363, for UK, Ireland, Singapore, etc.) |
Input voltage | 100~240 V AC |
Cable length | 1.35 m (53.15 inch) |
Dimensions | 92.5 x 45.3 x 36.5 mm |
Protection features | OVP (Overvoltage protection), OCP (Overcurrent protection), SCP (Short-circuits protection) |
Warranty | 6 years |

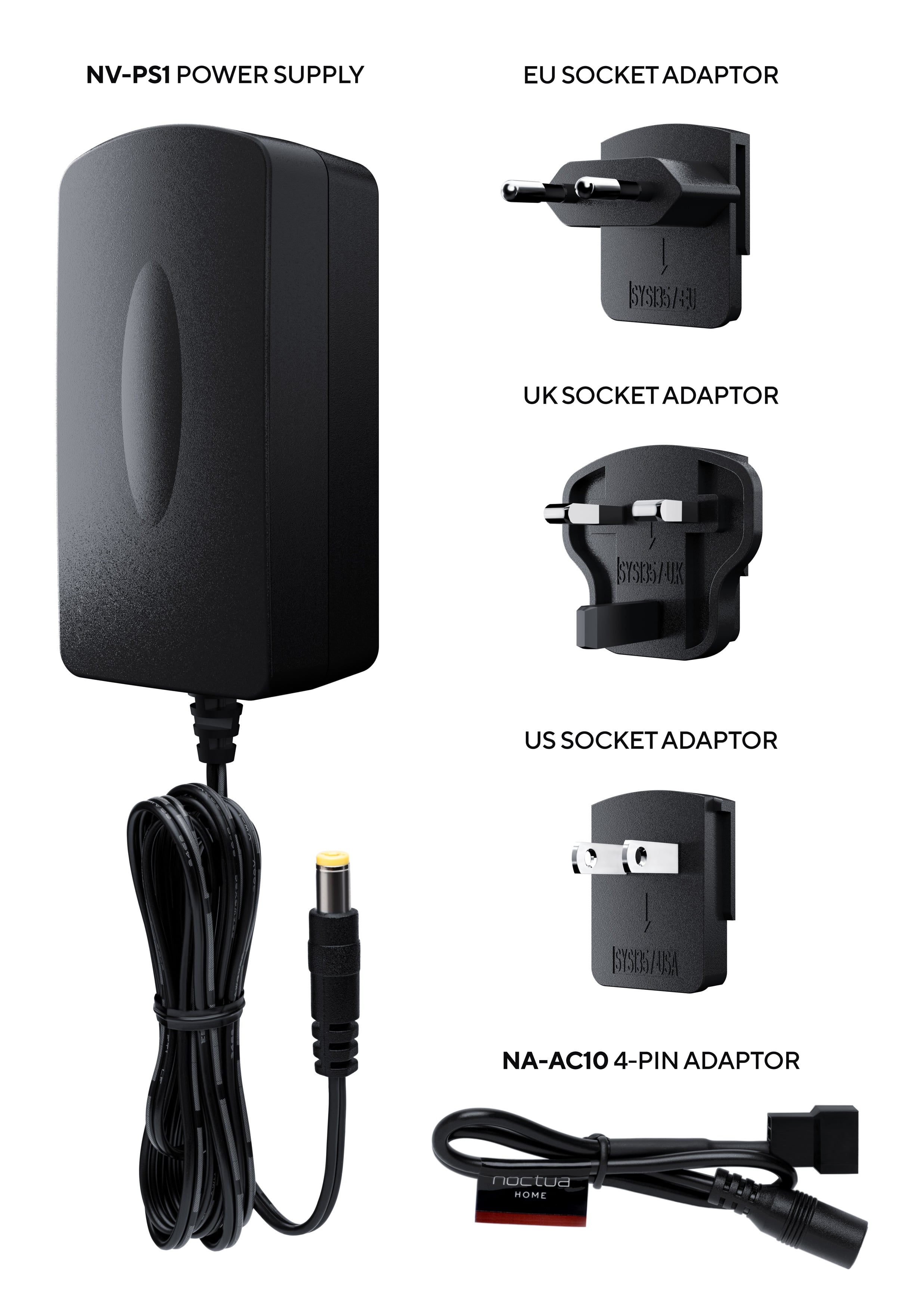

Scope of delivery
- NV-PS1 power supply
- US socket adaptor (Type A)
- EU socket adaptor (Type C)
- UK socket adaptor (Type G)
- NA-AC10 adaptor cable for 3-pin and 4-pin PWM fans
Extended specifications
Electrical specifications
Input voltage range | 100~240 V AC |
Input frequency | 50-60 Hz |
Output voltage | 12 V |
Max. output power | 24 W |
Max. output current | 2.0 A |
Standby power consumption | 0.075 W |
Mechanical specifications
Dimensions | 92.5 x 45.3 x 36.5 mm |
Weight | 126 g |
Colour | Black |
Input connectors (included) | type C (CEE 7/16, for Europe, Russia, Brazil, South Africa, etc.), type A (NEMA 1-15, for USA, Canada, Mexico, Japan, etc.), type G (BS 1363, for UK, Ireland, Singapore, etc.) |
Output connector | barrel connector (5.5 mm outer diameter, 2.1mm inner diameter) |
Cable length | 1.35 m (53.15 inch) |
Included adaptor(s) | 4-pin PWM |
Safety, compliance & environmental specifications
Protection features | OVP (Overvoltage protection), OCP (Overcurrent protection), SCP (Short-circuits protection) |
Protection class | II |
Operating temperature | 0-40 °C |
Operating humidity | 8-90 % |
Safety standards | EN 60950-1:2006+A11+A1+A12+A2, EN 62368-1, IEC 62368-1:2014, UL 60950-1 (2nd Edition), CAN/CSA C22.2 No. 60950-1-07 (2nd Edition) |
EMC standards | EN 55032 Class B, FCC Part 15 Subpart B Class B |
MTTF | > 50,000 h |
Logistical specifications
Packaging dimensions | 45 x 168 x 145 mm |
Packaging weight (including product) | 300 g |
EAN | 9010018900149 |
UPC | 841501190148 |
Packaging unit | 40 pcs |
Packaging unit dimensions | 325 x 495 x 360 mm |
Packaging unit weight | 12.9 kg |
