Key specifications
Socket compatibility | AM5, AM4, LGA1700, LGA1851, LGA1156, LGA1155, LGA1150, LGA1151, LGA1200 |
Total height | 145 mm |
Fan configuration | 1x 120x120x25mm (round) |
NSPR | 148 |
Colour | Black |
Warranty | 6 years |

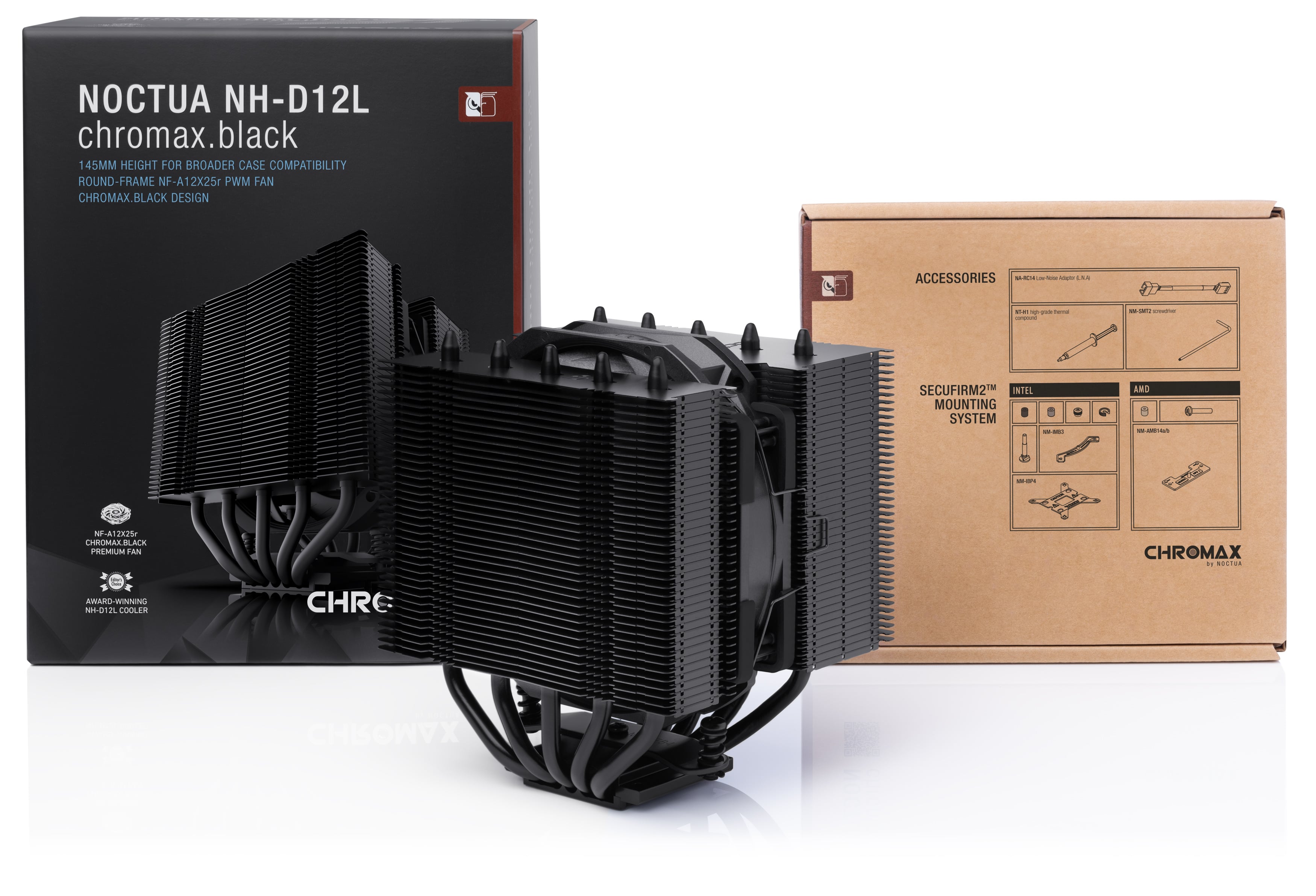

Scope of delivery
- Black NH-D12L heatsink
- NF-A12x25r PWM chromax.black premium fan
- NA-RC14 Low-Noise Adaptor (L.N.A.)
- NT-H1 high-grade thermal compound
- Black SecuFirm2™ mounting kit
- Noctua metal case-badge
Extended specifications
Fan: NF-A12x25r PWM chromax.black
Size (Form factor) | 120 x 120 x 25 mm (round) |
Speed range | 0 – 2000 rpm |
Airflow (max.) | 102.1 m³/h (60.09 CFM) |
Acoustical noise (max.) | 22.6 dB(A) |
Static pressure (max.) | 2.34 mm H₂O |
Input power (typical) | 1.2 W |
Connector | 4-pin |
Colour | Black |
Warranty | 6 years |
Mechanical specifications
Height with fan(s) | 145 mm |
Height without fan(s) | 145 mm |
Width with fan(s) | 125 mm |
Width without fan(s) | 125 mm |
Depth with fan(s) | 113 mm |
Depth without fan(s) | 113 mm |
Weight with fan(s) | 890 g |
Weight without fan(s) | 700 g |
Material: heatsink base | Copper, nickel plated |
Material: heatsink fins | Aluminium, nickel plated |
Material: heatpipes | Copper, nickel plated |
Interface heatpipes/heatsink fins | Soldered |
Colour | Black |
Number of heatpipes | 5 |
Heatpipe diameter | 6 mm |
Fin count | 38 |
Mounting hole pitch | 78 mm |
Rack unit compatibility | 4U, 5U |
Base size | 38 x 40 mm |
Performance specifications
NSPR | 148 |
Logistical specifications
Packaging dimensions | 237 x 185 x 175 mm |
Packaging weight (including product) | 1512 g |
EAN | 9010018000474 |
UPC | 841501100475 |
Packaging unit | 8 pcs |
Packaging unit dimensions | 511 x 391 x 373 mm |
Packaging unit weight | 13 kg |
