NM-M1-MP83 chromax.black
Torx® mounting kit
SecuFirm2+™ standard with Torx®
For better convenience and durability under heavy use
83mm mounting pitch
For Noctua CPU coolers that use 83mm mounting pitch
chromax.black version
With all-black mounting bars, ideal for chromax.black line heatsinks

SecuFirm2+™ standard with Torx®

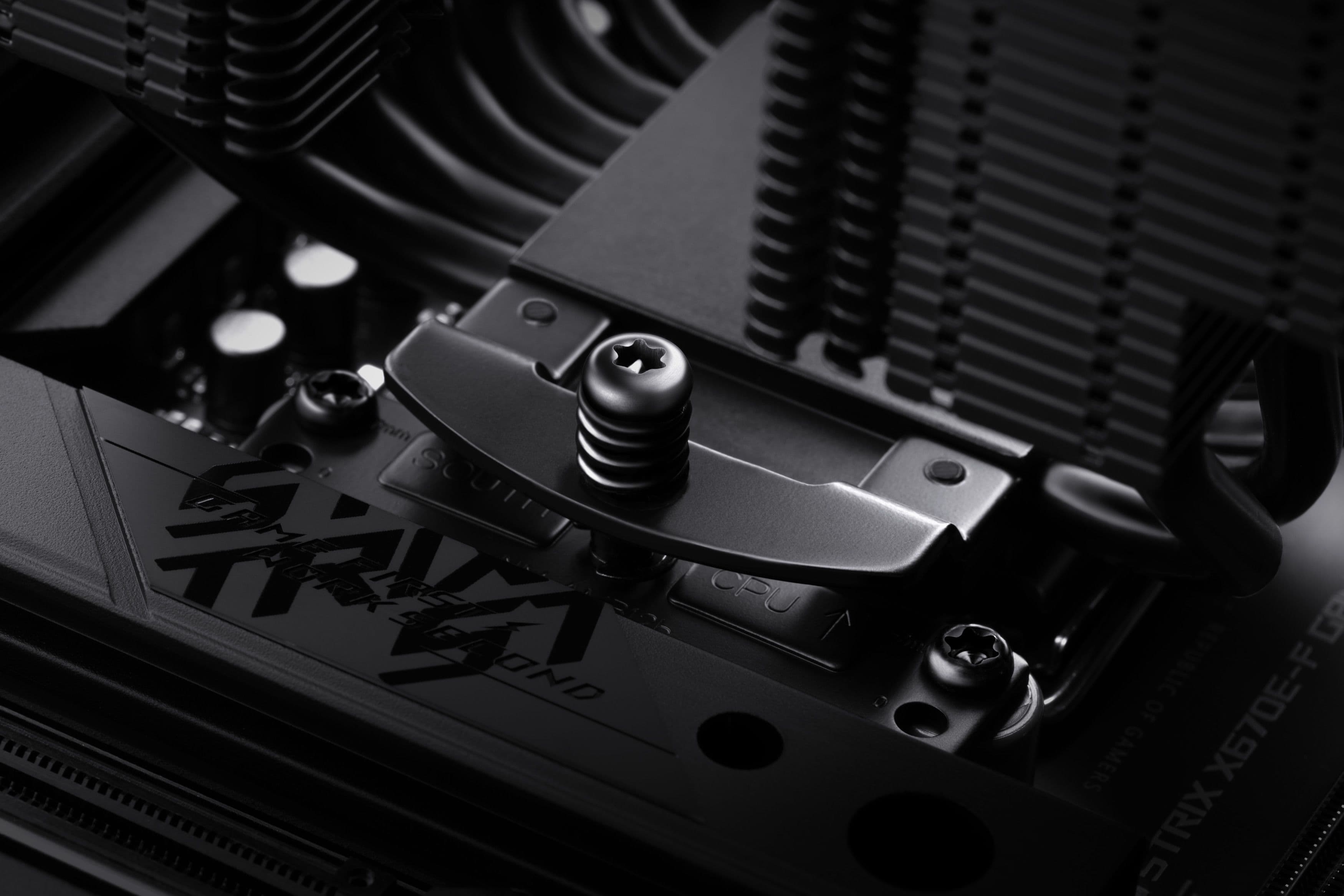

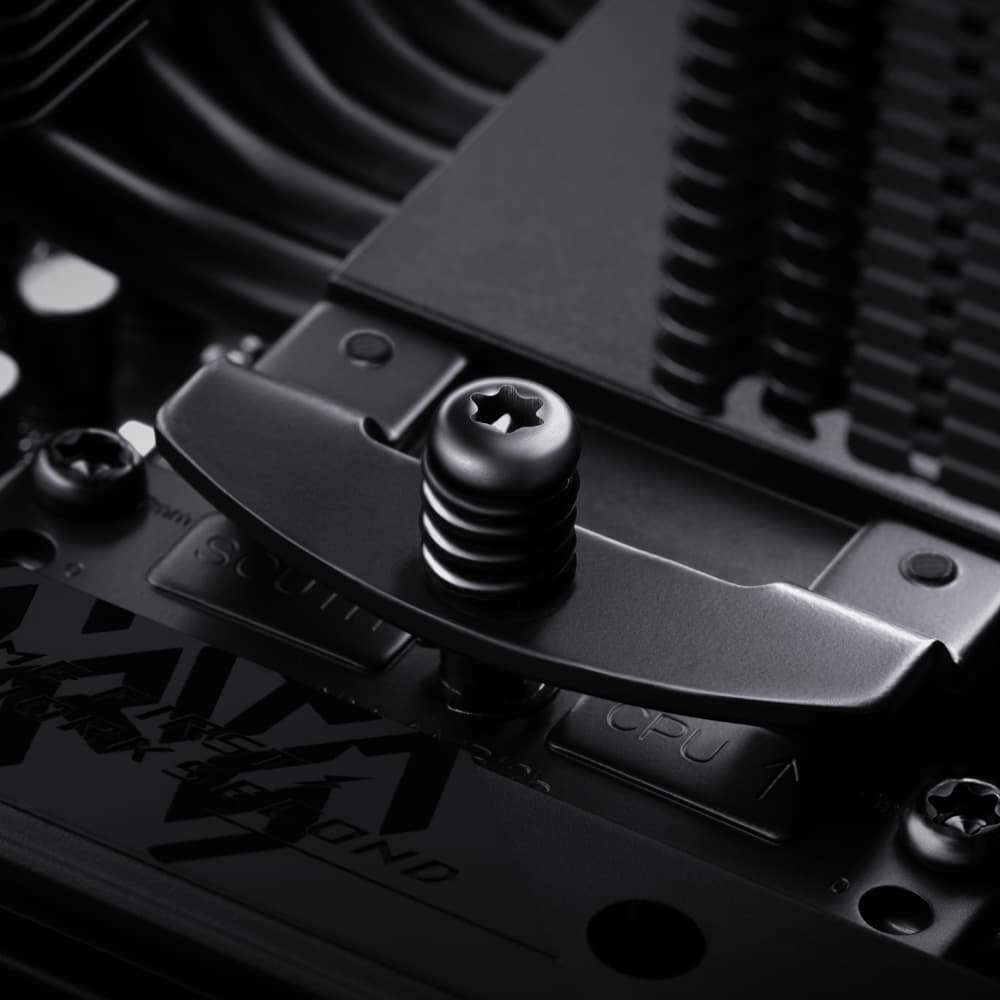

The new SecuFirm2+™ standard uses Torx® T20 instead of Phillips head screws. The reduced cam-out of the Torx® drive makes it easier to operate, especially in space restricted environments such as pre-assembled PC systems. At the same time, there is less wear on the screw heads, which makes the plus version even more durable and perfect for power users.

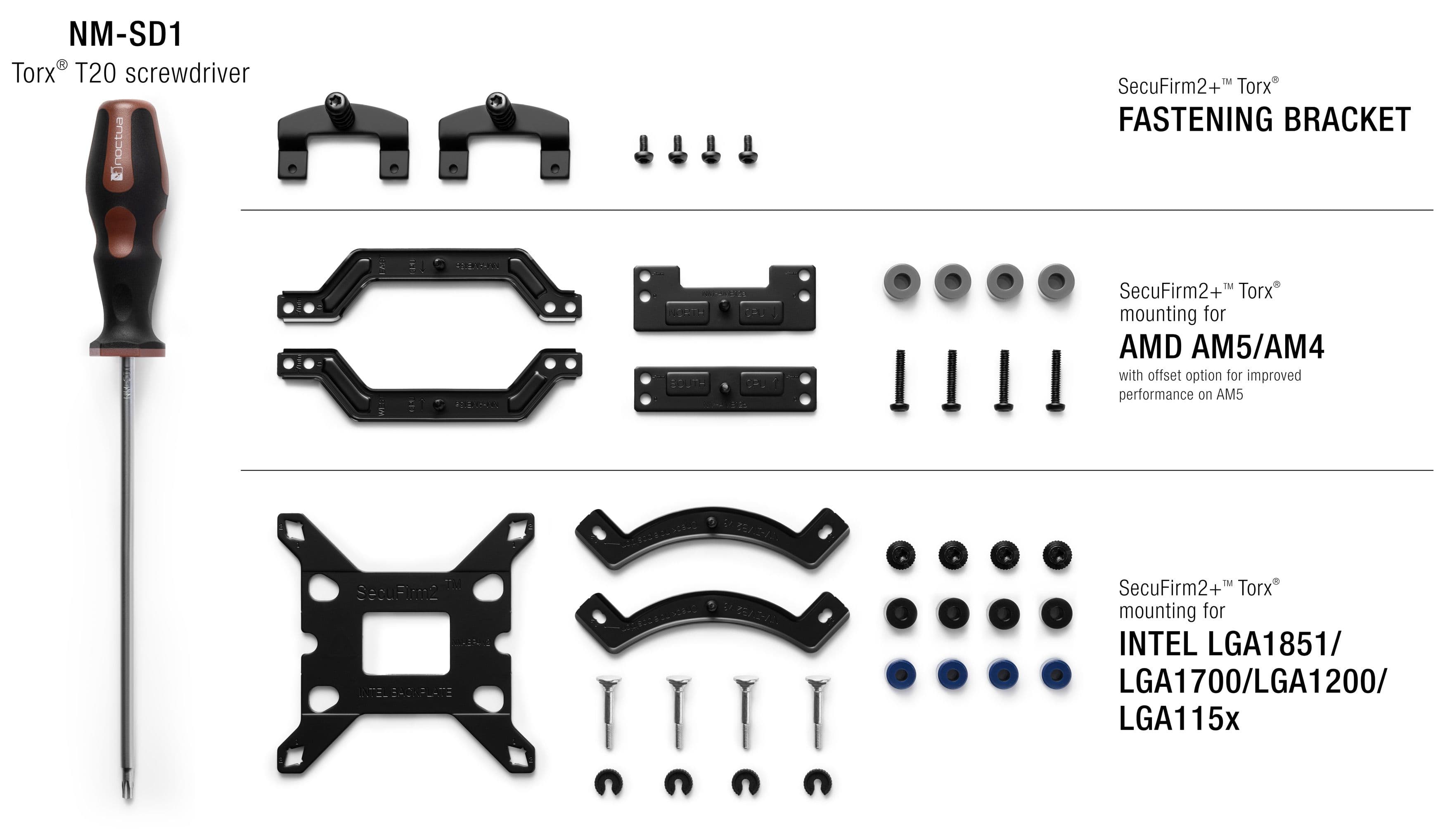

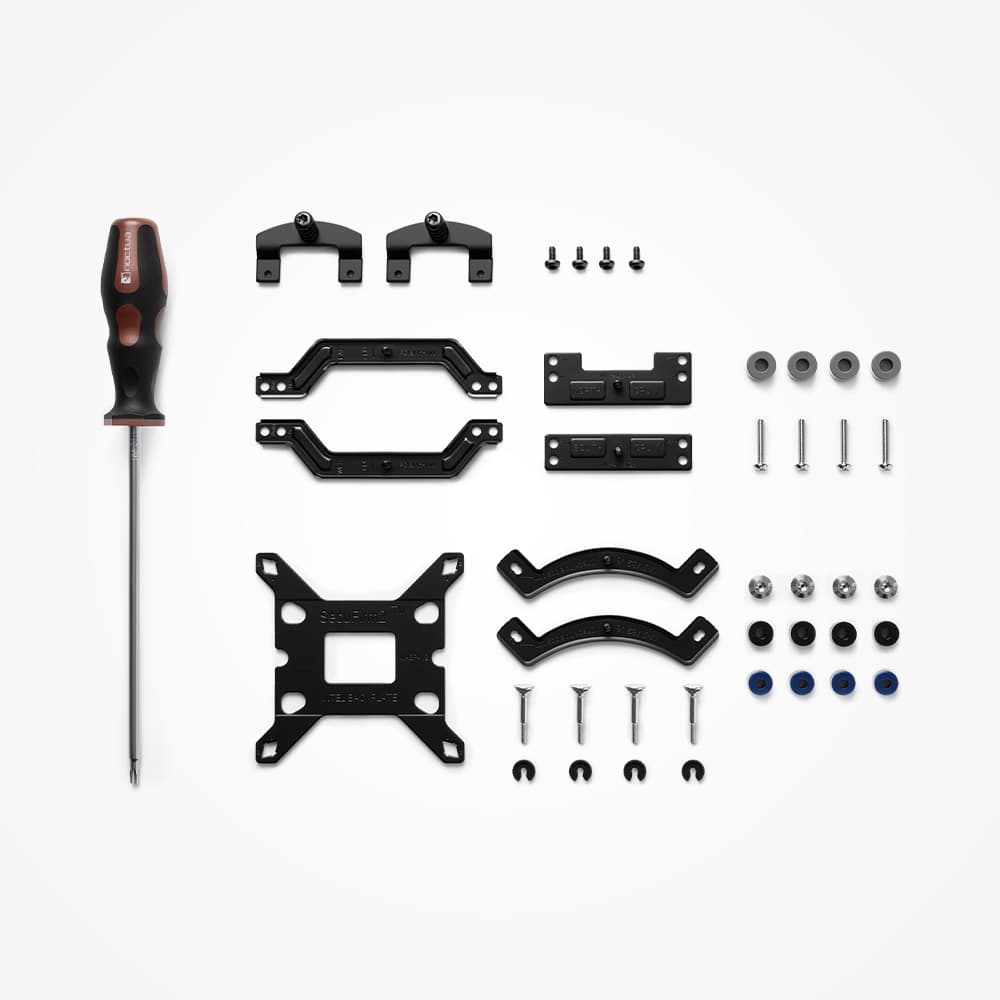

Multi-socket support
The NM-M1 sets are Noctua’s most comprehensive multi-socket mounting-kits today: Supporting AMD AM5 and AM4 as well as Intel LGA1851, LGA1700, LGA1200, LGA1151, LGA1150, LGA1155 and LGA1156, it’s the ultimate kit for a wide range of upgrading or switching scenarios.

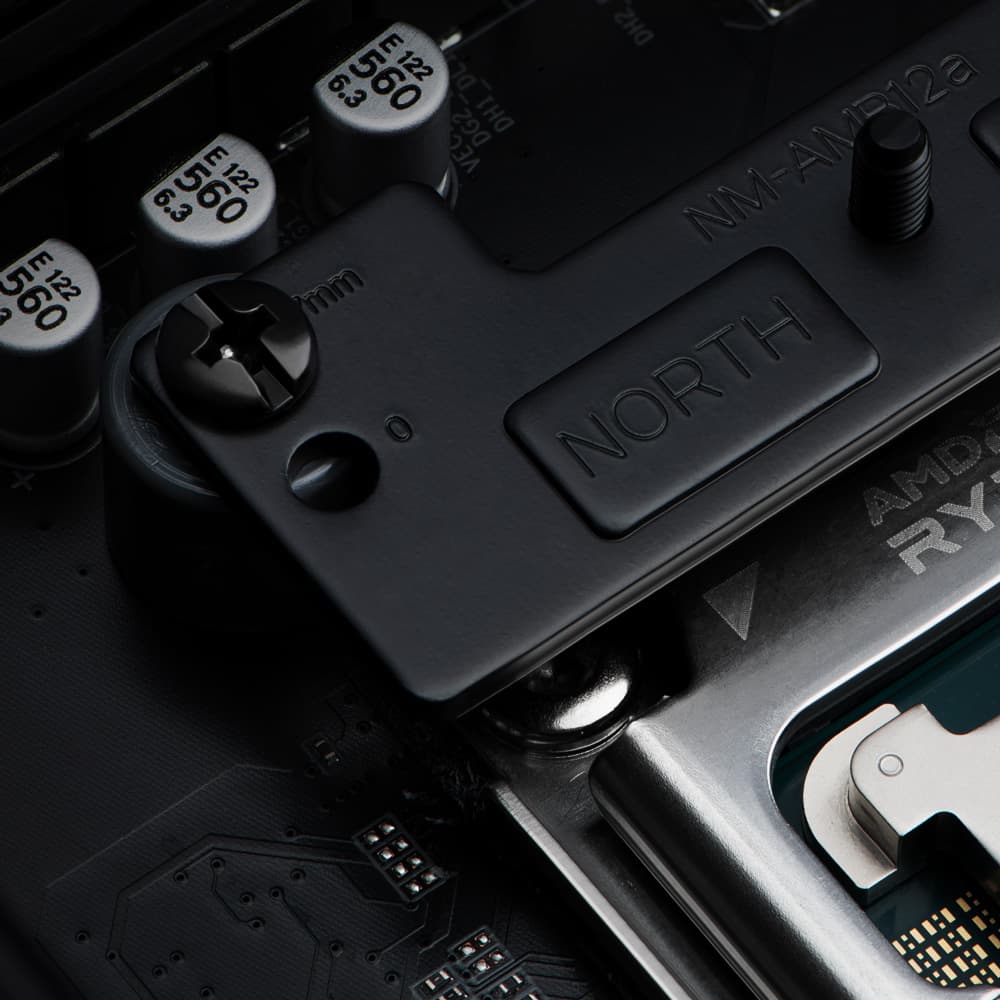

Offset mounting option for AMD AM5
The NM-M1 includes Noctua’s offset mounting bars for AM5 that make it possible to install the cooler shifted towards the south side of the socket by 7mm, thereby achieving better contact pressure right above the Core Complex Die(s). This improved contact exactly at the processor’s hotspot can significantly reduce CPU temperatures with typical improvements in the range of 1-3°C.

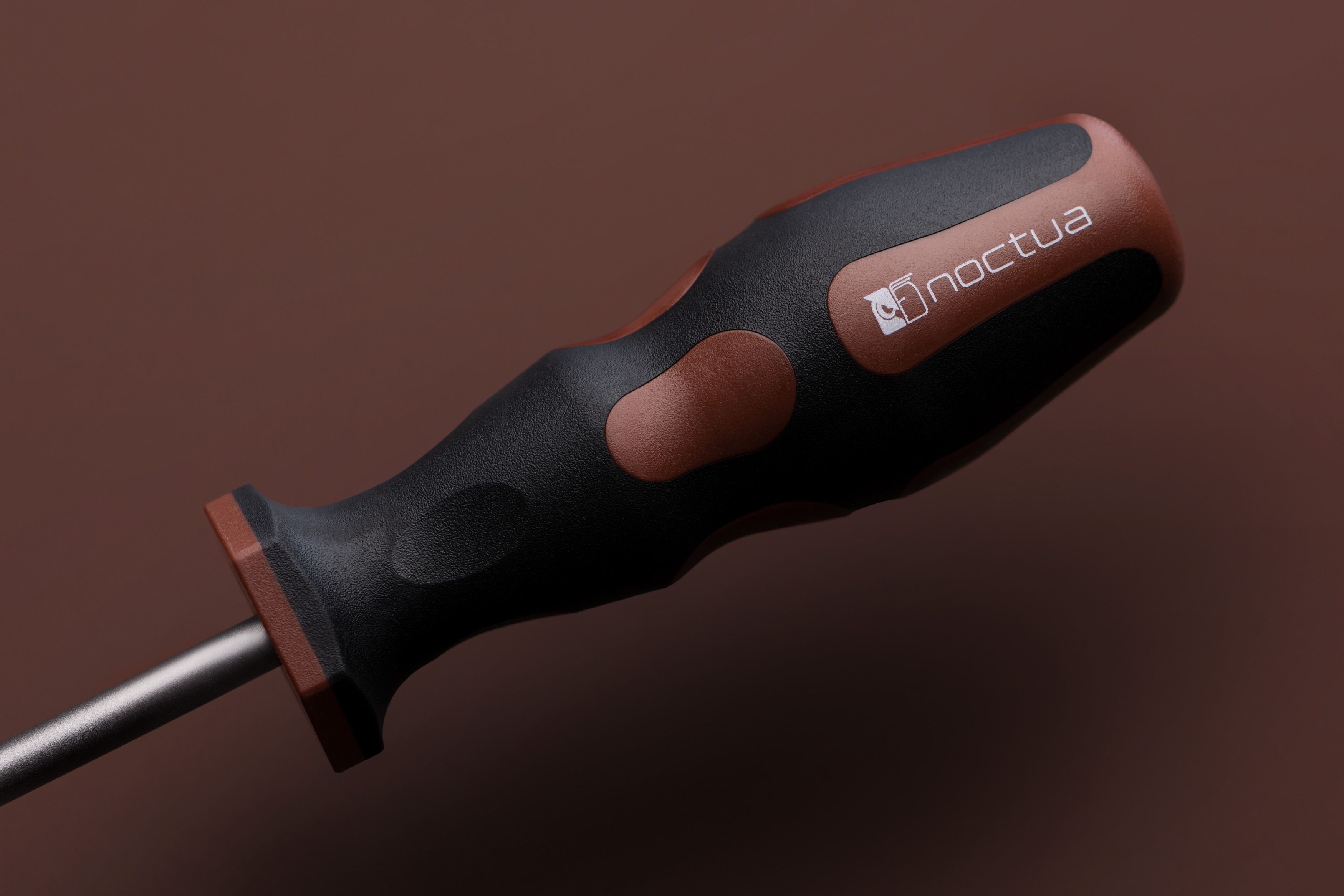

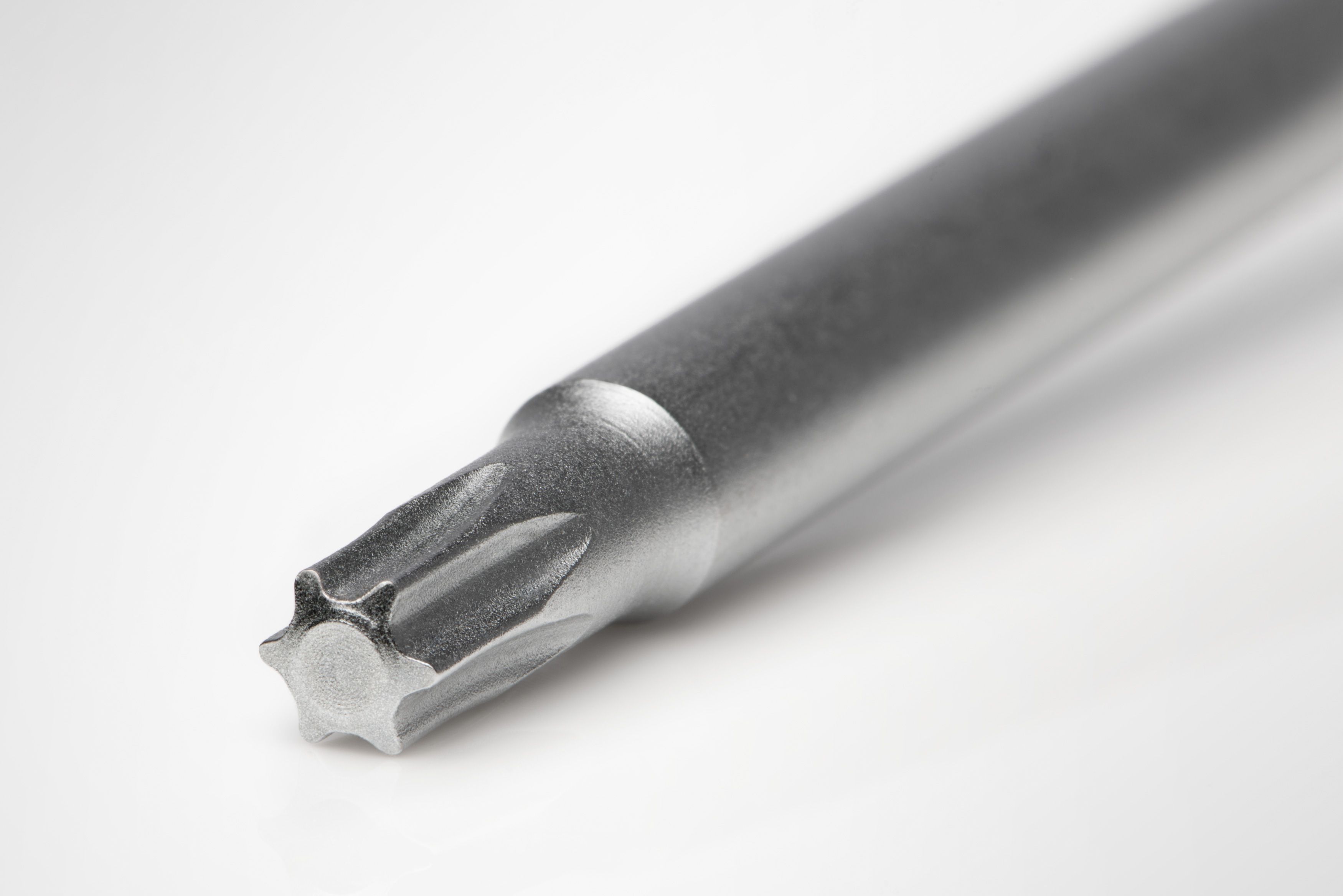

NM-SD1 magnetic tip screwdriver
The NM-M1 sets include Noctua’s NM-SD1 Torx® T20 head screwdriver that is ideal for all the screws of the kit. Thanks to its magnetic tip and the 150mm long shaft, even remote screws in tightly packed environments such as ITX or HTPC builds are easy to handle without dropping.
