NV-SPH1

Powered fan hub set

8 channel PWM fan hub

Up to 60W total via barrel connector or 22W via the 4-pin input

Suitable for 5V, 12V, and 24V fans

Supports both 4-pin PWM and 3-pin connectors

NV-PS1 230/115V power supply

With plug adaptors for EU, US and UK sockets, for powering directly from the mains

Overview
Specifications
Features
Downloads
Buy
Key specifications
Colour
Black
Warranty
6 years

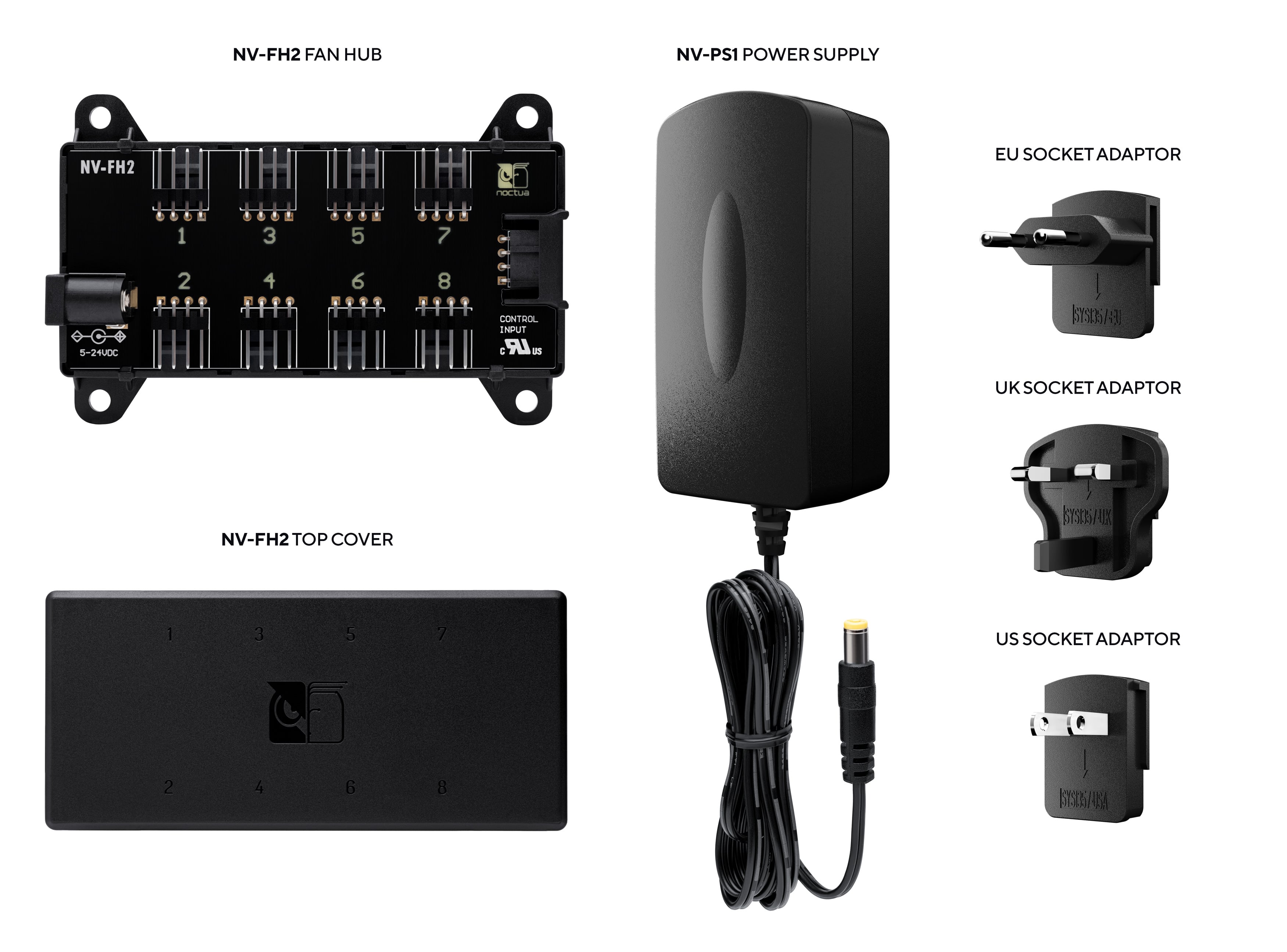

Scope of delivery
  • NV-FH2 fan hub
  • NV-PS1 power supply
  • EU socket adaptor (Type C)
  • UK socket adaptor (Type G)
  • US socket adaptor (Type A)

Extended specifications

Fan hub: NV-FH2
Colour
Black
Input connector
Barrel connector 5.5mm, 4-pin PWM
Fan connector
4-pin PWM
Max. power via 4-pin PWM input
22 W
Max. power via barrel connector
60 W
Operating voltage
5-24V
Size

93 x 62 x 12.5 mm (without cover) / 93 x 62 x 19 mm (with cover)

Weight
47 g
Fan compatibility

All Noctua 24V, 12V, and 5V fans, many third party fans

Warranty
6 years
Power supply: NV-PS1
Colour
Black
Output connector
barrel connector (5.5 mm outer diameter, 2.1mm inner diameter), with 4-pin PWM adaptor
Output voltage
12 V
Max. output power
24 W
Input connectors (included)
type C (CEE 7/16, for Europe, Russia, Brazil, South Africa, etc.), type A (NEMA 1-15, for USA, Canada, Mexico, Japan, etc.), type G (BS 1363, for UK, Ireland, Singapore, etc.)
Input voltage
100~240 V AC
Cable length
1.35 m (53.15 inch)
Dimensions
92.5 x 45.3 x 36.5 mm
Protection features
OVP (Over voltage protection), OCP (Over current protection), SCP (Short-circuits protection)
Warranty
6 years
Logistical specifications
Packaging dimensions
45 x 168 x 145 mm
Packaging weight (including product)
320 g
EAN
9010018900170
UPC
841501190179
Packaging unit
40 pcs
Packaging unit dimensions
325 x 495 x 360 mm
Packaging unit weight
13.9 kg
