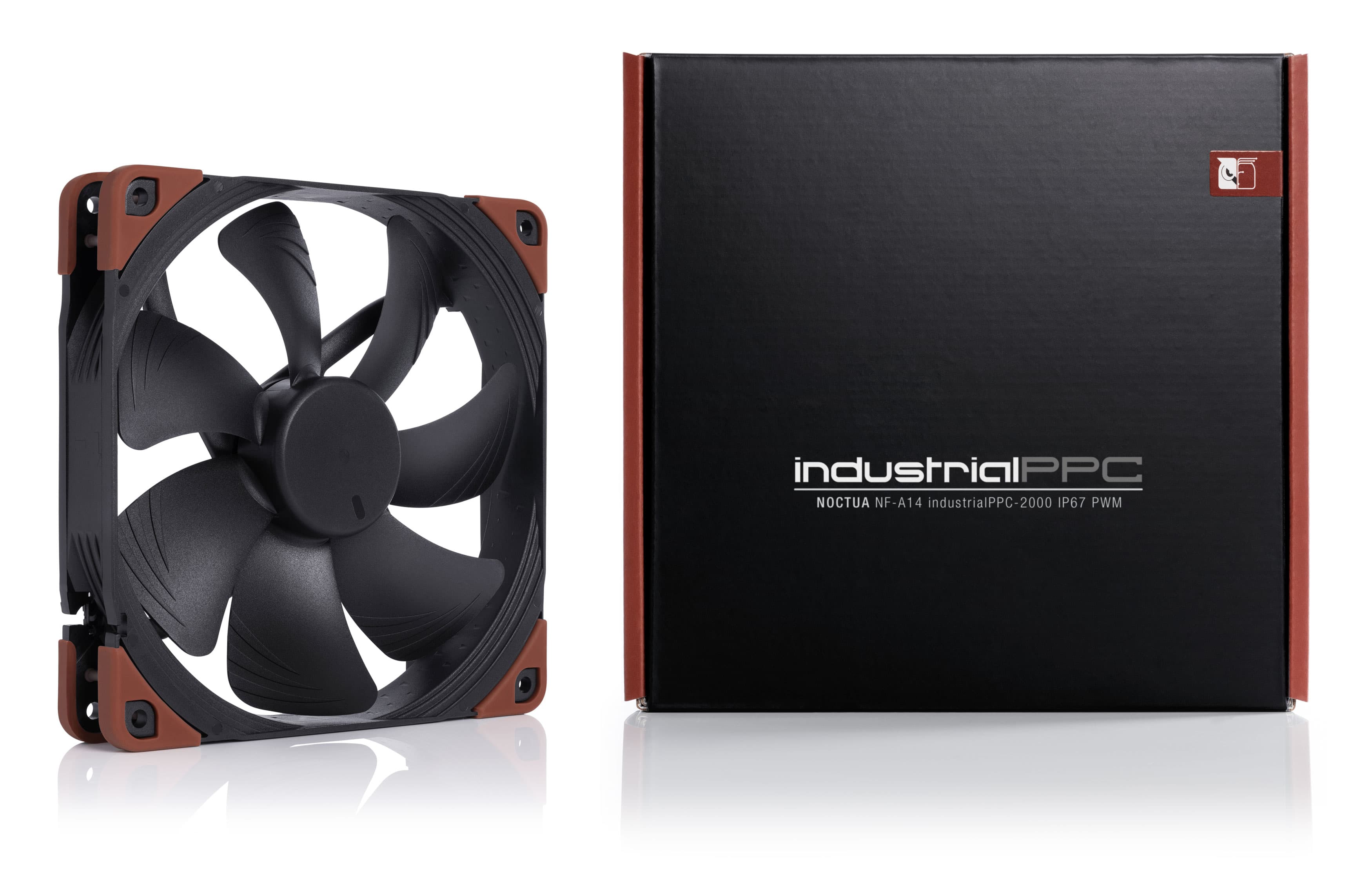

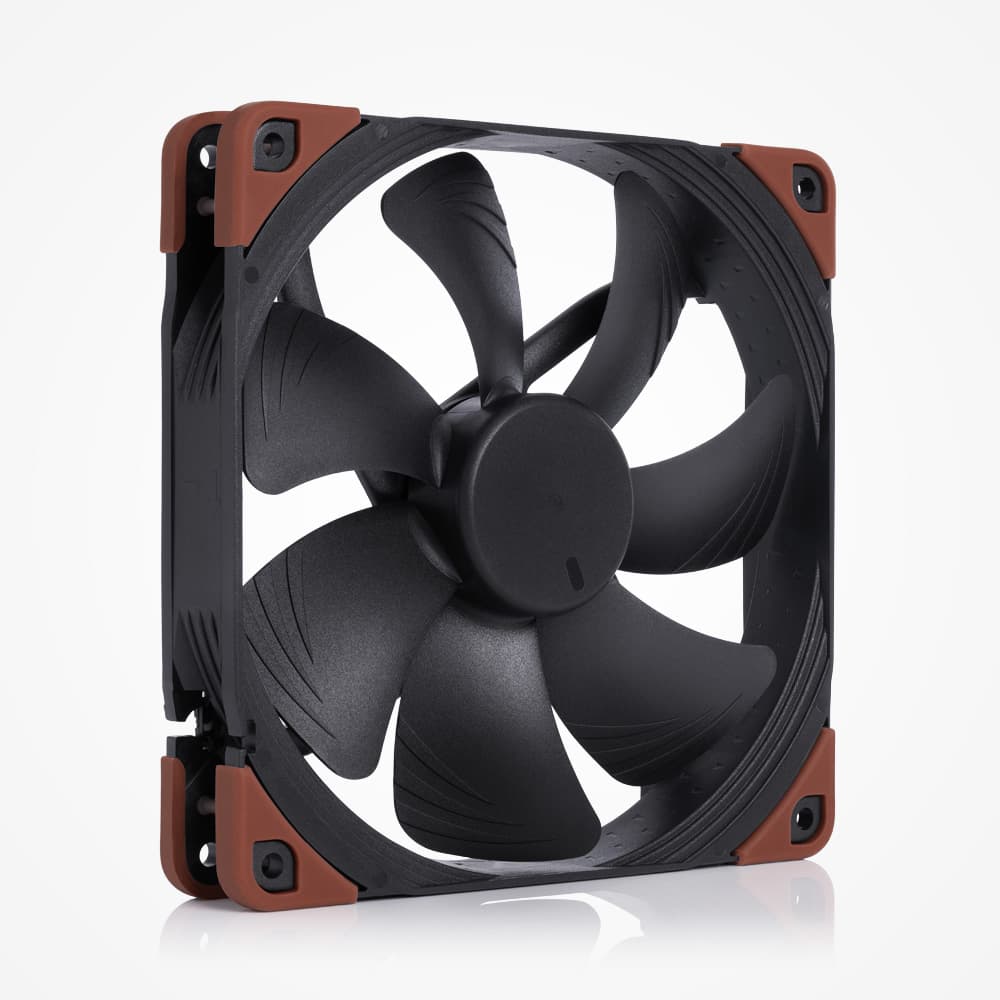

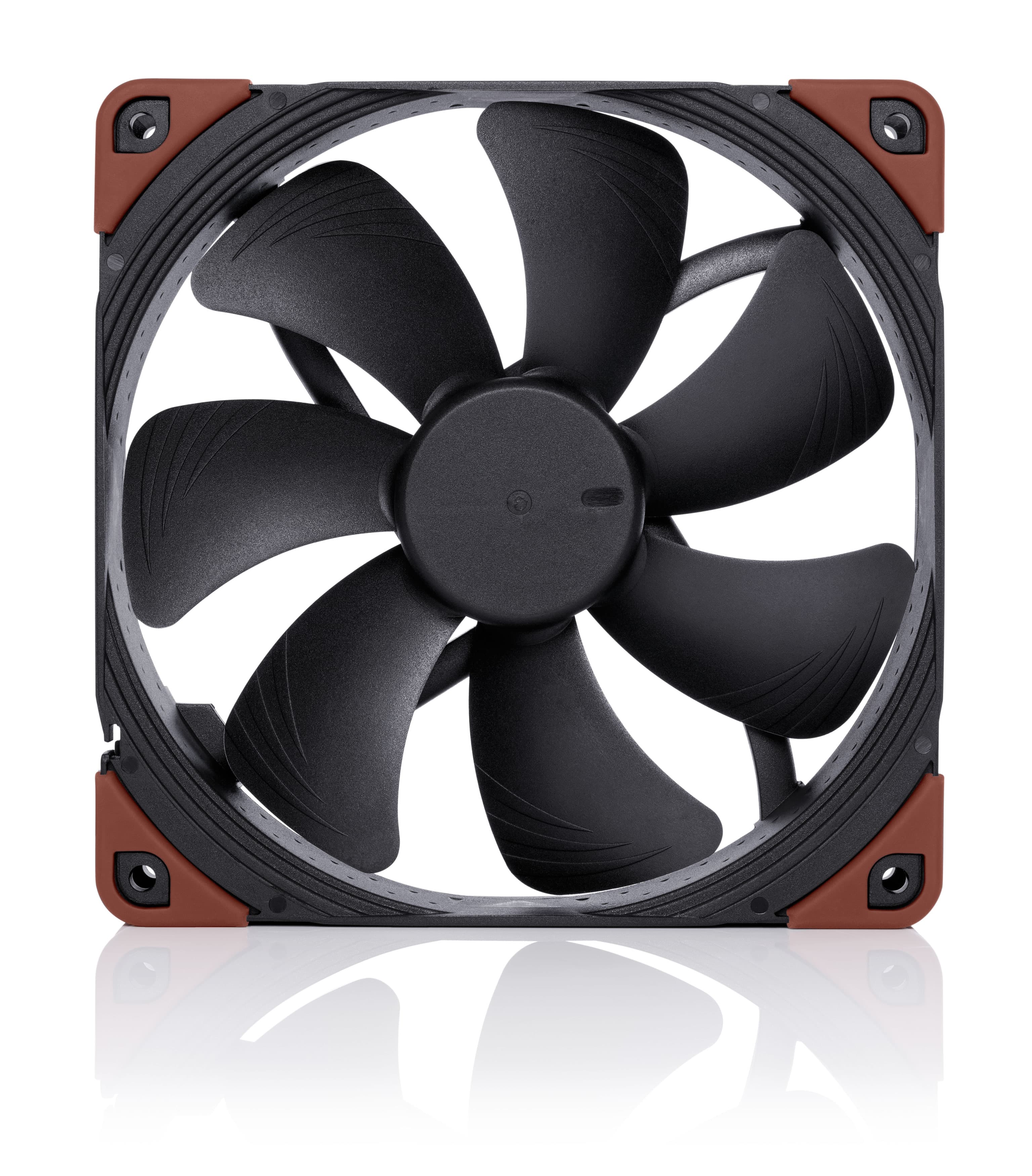

NF-A14 industrialPPC-2000 IP67 PWM

Heavy-duty 140mm industrial fan

Award-winning 140mm design

With proven AAO frame for superior cooling efficiency

2000rpm industrialPPC version

Fibre-glass reinforced polyamide construction for heavy-duty use

4-pin PWM version

With IP67 certified water and dust protection

Variant:

20002000 PWM2000 IP67 PWM3000 PWM24V-2000 SP IP67 PWM24V-3000 SP IP67 PWM
High-speed fan for industrial applications. Unsuitable for low-noise PC builds.
Overview
Specifications
Features
Reviews
Downloads
Buy

Conceived for industrial heavy duty applications that require enhanced cooling performance and advanced ingress protection, the NF-A14 industrialPPC (Protected Performance Cooling) is a ruggedised high-speed version of the award-winning retail model. Thanks to the outstanding aerodynamic efficiency of the NF-A14 design and the use of a novel three-phase motor, the industrialPPC version provides superior airflow and pressure capacity while keeping noise levels and power consumption moderate as against comparable high-speed fans. While its fibre-glass reinforced polyamide construction and certified water and dust protection make the NF-A14 industrialPPC suitable for operation in challenging environments, the renowned SSO2 bearing technology guarantees an MTTF of over 150,000hrs. Topped off with Noctua’s trusted reliability and 6 years manufacturer’s warranty, the NF-A14 industrialPPC is an ideal choice for highly demanding applications that require superior flow rates and ultimate dependability.

Hardware.Info logo

Hardware.Info•Farzin Parham

“The most efficient and thus "best" 140mm fans are the Noctua NF-A14 industrialPPC-2000 140mm IP67 PWM and the Noiseblocker NB-eLoop 140mm 1200rpm PWM. Both deserve an Ultimate award.”

DDWorld.cz logo

DDWorld.cz•Jan Stach

“Obě nové řady jsou velmi vítaným zpestřením nabídky ventilátorů.”

Hardware-360 logo

Hardware-360•Ron Perillo

“Both the NF-F12 and NF-A14 IndustrialPPC fans from Noctua receive the Hardware 360 Editor’s Choice award.”

FunkyKit.com logo

FunkyKit.com•Chris McCart

“The new colors offered by Noctua are fantastic. The Redux models are premium quality, quiet and priced competitively. The industrialPPC models are heavy duty models that will meet the demands of the most extreme conditions.”

OverclockersClub.com logo

OverclockersClub.com•Allen Woo

“All of these fans are great, even if it is their second unveiling. I think that with the release of the industrialPPC and the redux, Noctua has every base covered. Easy to please base users who don't have much need for insane power or quiet, sound en...”

modding.fr logo

modding.fr•Bertrand Curras

“Du coté de la série Industrial PPC, on tape un cran au-dessus avec déjà des ventilateurs qui sont dans le haut de gamme de Noctua! avec du coup une orientation refroidissement radiateur (aircooling ou watercooling)Tout est renforcé!!! la structure av...”

Vortez.net logo

Vortez.net•Ed Hume

“Noctua has taken their game to a whole new level by introducing a superb product which is packed full of value. After our findings we are pleased to hand out our Elite Award.”

Conseil Config logo

Conseil Config•Christian Marchini

“Conçue pour la performance et la solidité avant tout, cette gamme s'oriente vers une utilisation dans un cadre industriel ou pour les fanas de performance. Si vous cherchez des ventilateurs pour refroidir votre processeur, que seul les performances c...”

PureOverclock.com logo

PureOverclock.com•Josh Jackson

“These are great quality fans for those who prefer elegance over flashy appearance and don't mind spending a premium for them.”

Key features

2000rpm industrialPPC version

Thanks to its elevated 2000rpm top speed, the NF-A14 industrialPPC-2000 provides a significant performance boost over the 1500rpm retail version. Combined with the industrialPPC series' robust polyamide construction and advanced protection features, this makes the fan ideal for challenging industrial applications.

Three-phase motor design

While most axial fans use single-phase motors with 4 slots, Noctua's industrialPPC fans feature a three-phase design with 6 slots, which provides smoother transitions between the slots and thus allows for even higher running smoothness, further reduced vibrations and unprecedented energy efficiency.

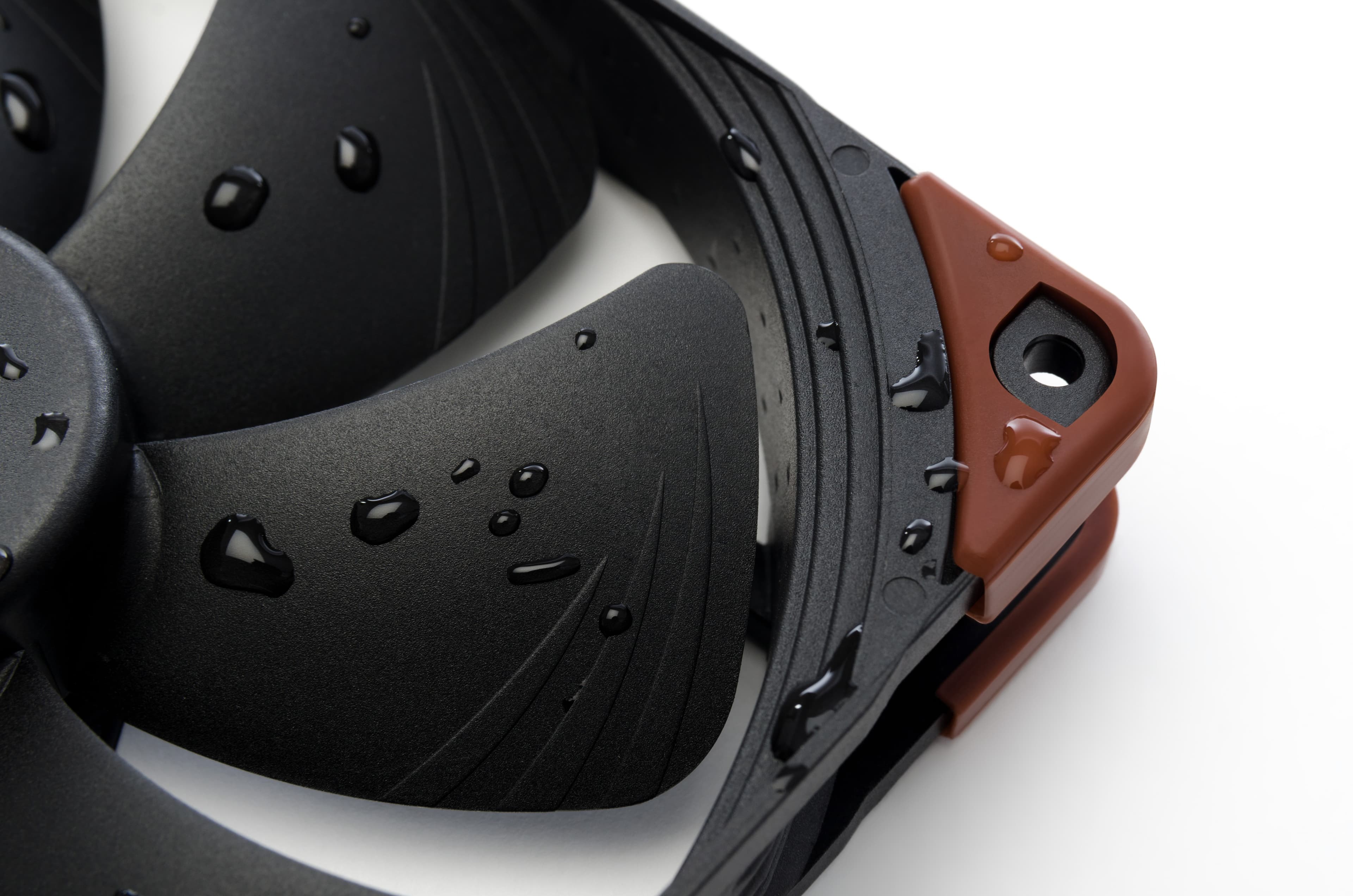

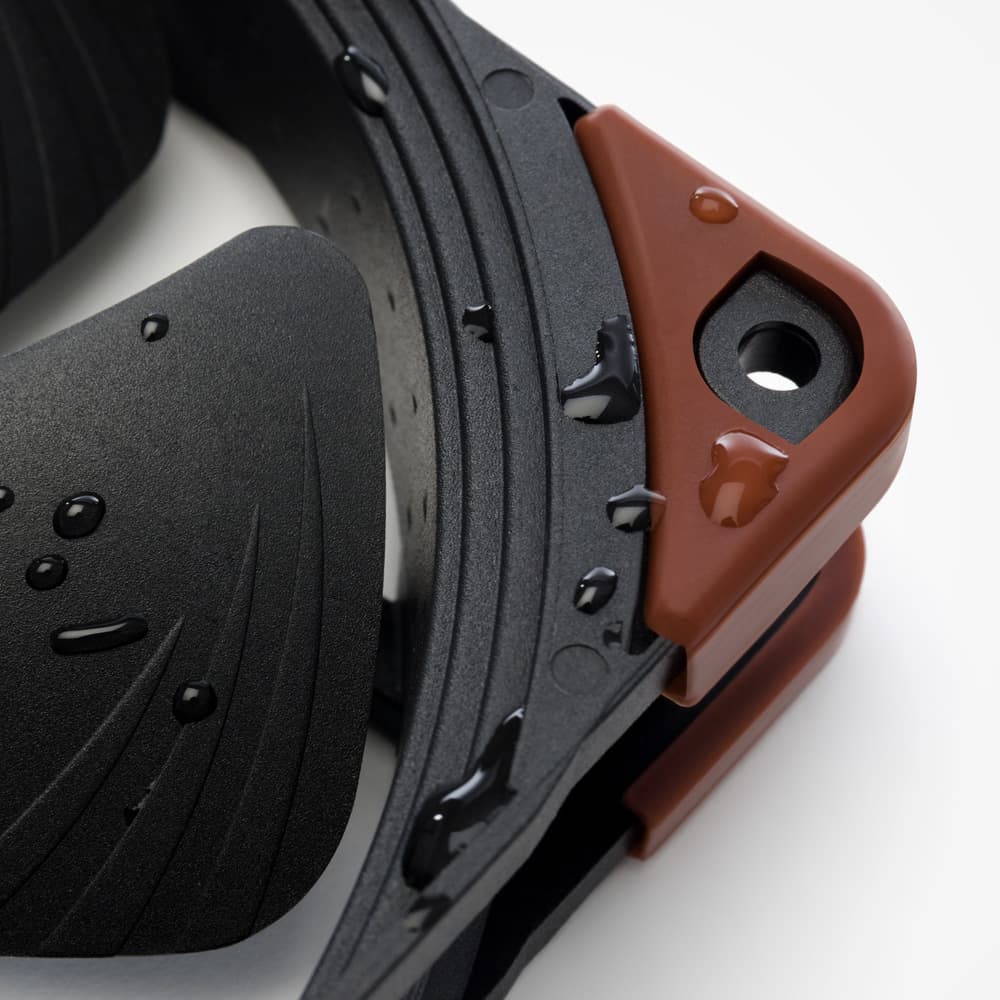

Certified IP67 water- and dust protection

The motor and PCB of the IP67 version are completely cast in a special, highly heat conductive resin that combines thoroughgoing protection and effective motor heat dissipation. Complying with the ingress protection rating IP67, this fan is not only fully dust tight but also completely waterproof up to 1m water depth.

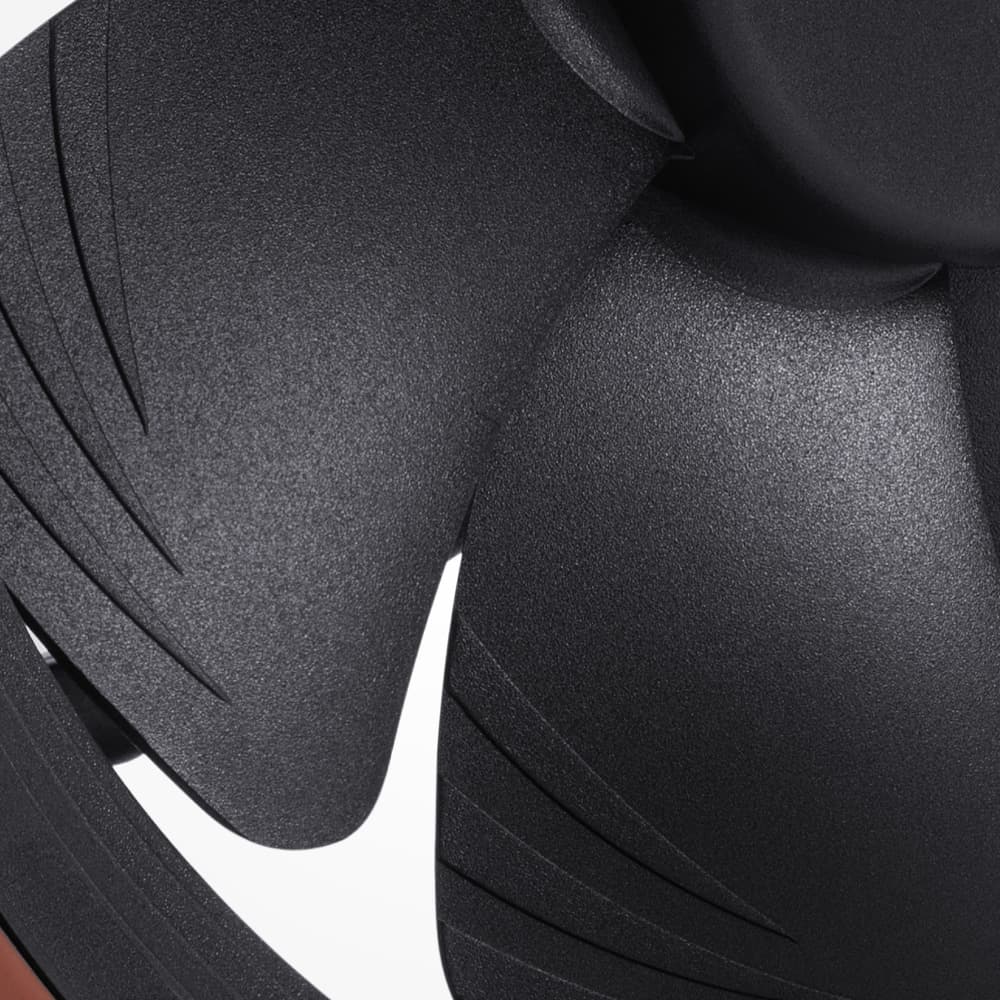

Fibre-glass reinforced polyamide construction

Both the impeller and the frame of Noctua’s industrialPPC fans are made entirely from fibre-glass reinforced polyamide. This material can withstand temperatures up to 140°C and makes the fans even more robust and break-proof than Noctua’s standard fibre-glass reinforced PBT fans.

FAQs

All FAQs

Accessories

Explore recommended accessories for this product.

NA-FC1

Compact PWM-controller for up to 3 fans, for completely manual control or in combination with a mainboard.

NA-FH1

8 channel PWM fan hub: allows up to 8 12V PWM fans to be run and controlled via a single motherboard fan header

NV-SPH1

Powered fan hub set, ideal for powering up to 8 12V PC fans off the mains.

NA-SEC1

30cm, 4-Pin extension cables: provide ample reach for installing 3-pin or 4-pin fans in larger enclosures.

NA-SEC3

Extra-long 60cm, 4-pin extension cables, can be daisy-chained for up to 1.8m total length.

NA-SYC1

4-pin Y-Cables: allows two 4-pin PWM fans to be controlled simultaneously via one PWM fan header.

NA-SC1 Sx2

3-way fan splitter cables: power and control up to three fans through one fan header.

NA-FG1-14 Sx2

Premium-grade matte-black grills for 140mm fans. Set of 2.

NA-FG1-14 Sx5

Premium-grade matte-black grills for 140mm fans. Set of 5.

NA-SAVP1 chromax.black

Set of 16 black NA-AVP1 anti-vibration pads for 120/140mm fans.

NA-SAVP1 chromax.blue

Set of 16 blue NA-AVP1 anti-vibration pads for 120/140mm fans.

NA-SAVP1 chromax.green

Set of 16 green NA-AVP1 anti-vibration pads for 120/140mm fans.

NA-SAVP1 chromax.grey

Set of 16 grey NA-AVP1 anti-vibration pads for 120/140mm fans.

NA-SAVP1 chromax.red

Set of 16 red NA-AVP1 anti-vibration pads for 120/140mm fans.

NA-SAVP1 chromax.white

Set of 16 white NA-AVP1 anti-vibration pads for 120/140mm fans.

NA-SAVP1 chromax.yellow

Set of 16 yellow NA-AVP1 anti-vibration pads for 120/140mm fans.

NA-SAV2

Set of 20 brown anti-vibration mounts: double-side design provides better accessibility!

NA-SAV2 chromax.black

Set of 20 black anti-vibration mounts: double-side design provides better accessibility!

NA-SAV2 chromax.red

Set of 20 red anti-vibration mounts: double-side design provides better accessibility!

NA-SAV2 chromax.blue

Set of 20 blue anti-vibration mounts: double-side design provides better accessibility!

NA-SAV2 chromax.green

Set of 20 green anti-vibration mounts: double-side design provides better accessibility!

NA-SAV2 chromax.white

Set of 20 white anti-vibration mounts: double-side design provides better accessibility!

NA-SAV2 chromax.yellow

Set of 20 yellow anti-vibration mounts: double-side design provides better accessibility!

NA-SAV4

Anti-vibration mounts with five defined, numbered pawls: a flat case-side end provides a clean exterior look.
