Key specifications
Socket compatibility | AM5, AM4, LGA1700, LGA1851, LGA1156, LGA1155, LGA1150, LGA1151, LGA1200 |
Total height | 158 mm |
Fan configuration | 1x 120x120x25mm (square) |
NSPR | 129 |
Colour | Grey |
Warranty | 6 years |
Scope of delivery

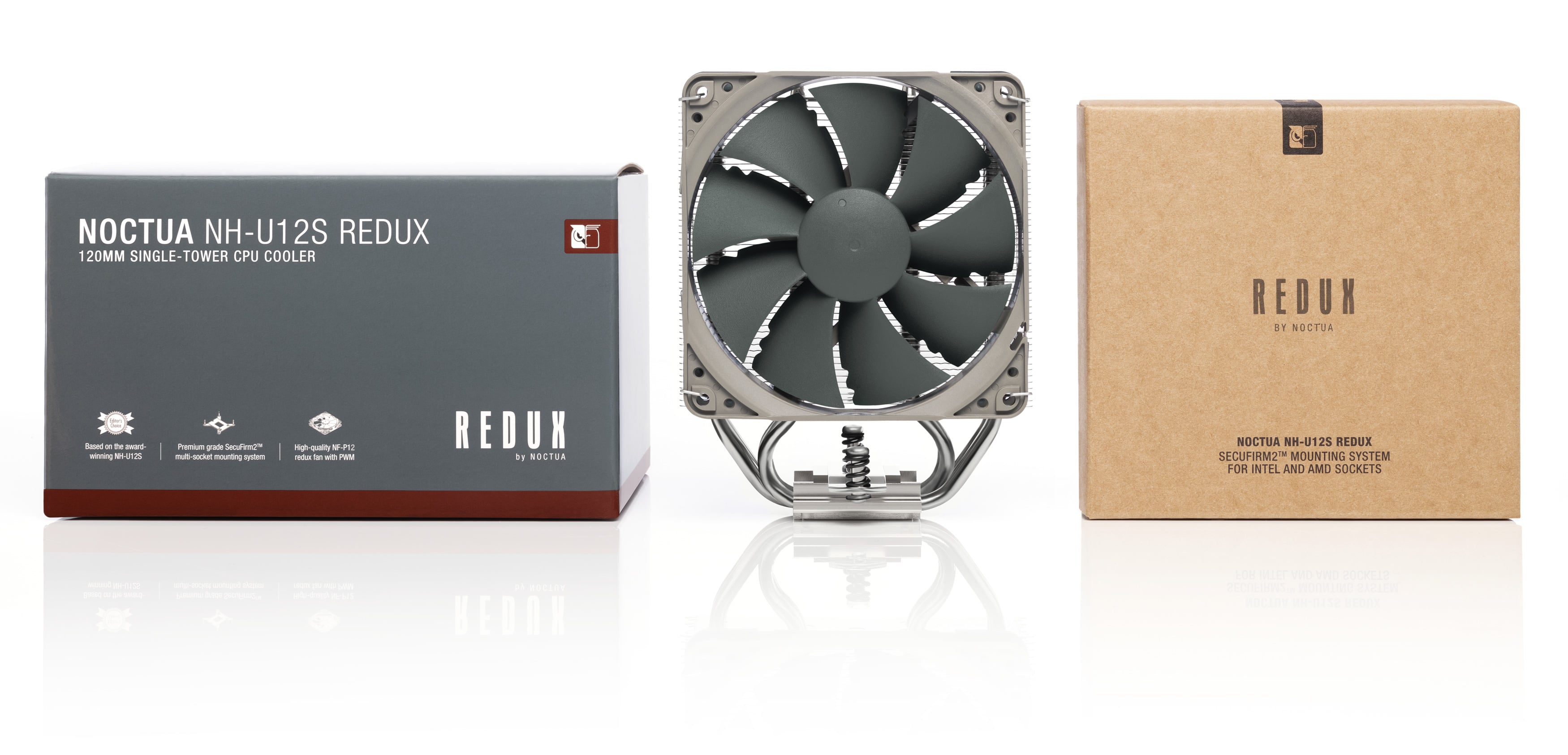

- NH-U12S redux heatsink
- NF-P12 redux-1700 PWM fan
- 4x NA-AVP1 grey anti-vibration pads
- Fan mounting clips (one pair)
- NT-H1 high-grade thermal compound (pre-applied)
- SecuFirm2™ mounting kit
Extended specifications
Size (Form factor) | 120 x 120 x 25 mm (square) |
Speed range | 0 – 1700 rpm |
Airflow (max.) | 120.2 m³/h (70.75 CFM) |
Acoustical noise (max.) | 25.1 dB(A) |
Static pressure (max.) | 2.83 mm H₂O |
Rated voltage | 12 V |
Input power (typical) | 0.95 W |
Connector | 4-pin |
Colour | Grey |
Warranty | 6 years |
Mechanical specifications
Height with fan(s) | 158 mm |
Height without fan(s) | 158 mm |
Width with fan(s) | 125 mm |
Width without fan(s) | 125 mm |
Depth with fan(s) | 71 mm |
Depth without fan(s) | 45 mm |
Weight with fan(s) | 710 g |
Weight without fan(s) | 550 g |
Material: heatsink base | Copper, nickel plated |
Material: heatsink fins | Aluminium, nickel plated |
Material: heatpipes | Copper, nickel plated |
Interface heatpipes/heatsink fins | Press-fit |
Colour | Grey |
Number of heatpipes | 4 |
Heatpipe diameter | 6 mm |
Fin count | 50 |
Mounting hole pitch | 78 mm |
Rack unit compatibility | 5U |
Base size | 38 x 40 mm |
Performance specifications
NSPR | 129 |
Logistical specifications
Packaging dimensions | 118 x 202 x 163 mm |
Packaging weight (including product) | 1150 g |
EAN | 9010018000207 |
UPC | 841501100208 |
Packaging unit | 12 pcs |
Packaging unit dimensions | 388 x 421 x 345 mm |
Packaging unit weight | 14.7 kg |
