Key specifications
Socket compatibility | AM5, AM4, LGA1700, LGA1851, LGA1156, LGA1155, LGA1150, LGA1151, LGA1200 |
Total height | 158 mm |
Fan configuration | 1x 120x120x25mm (square) |
NSPR | 129 |
Colour | Brown |
Warranty | 6 years |

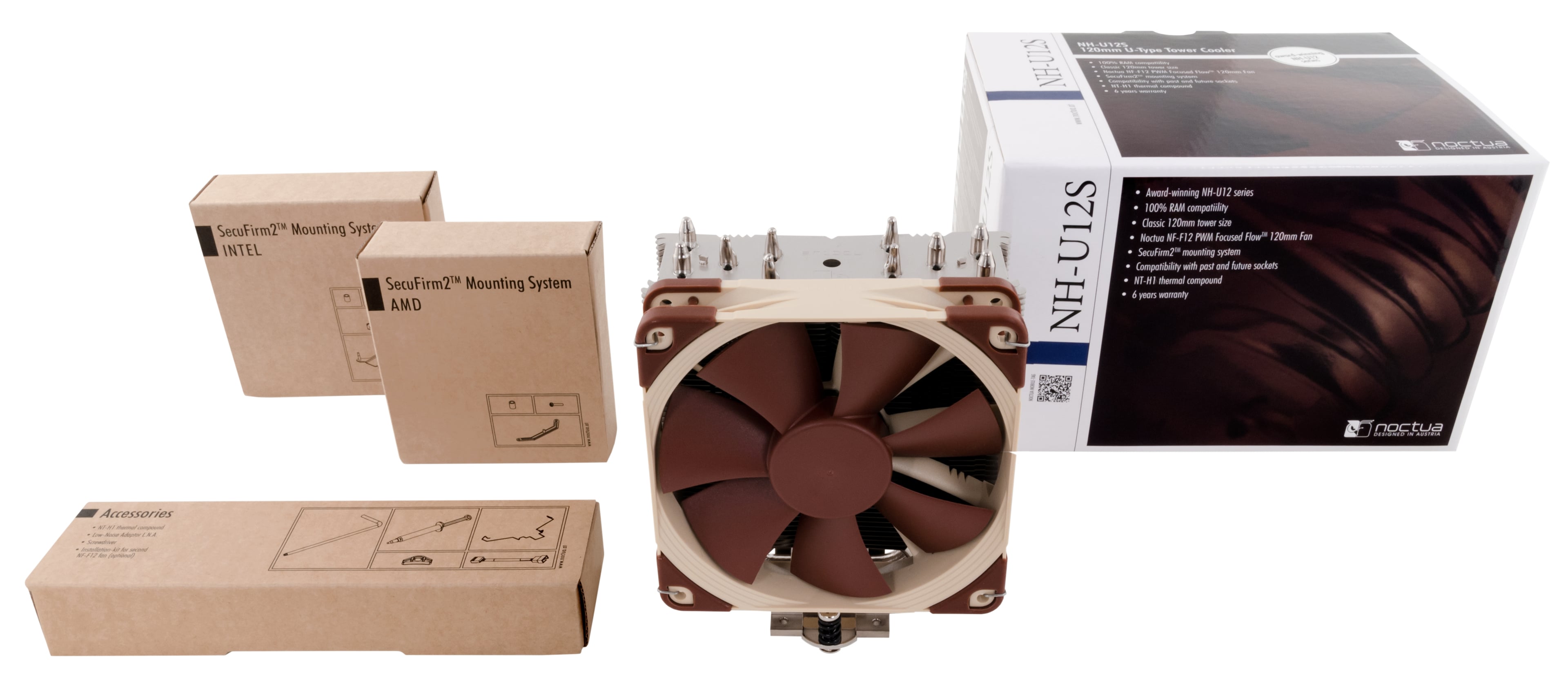

Scope of delivery
- NF-F12 PWM premium fan
- NA-RC6 Low-Noise Adaptor (L.N.A.)
- NT-H1 high-grade thermal compound
- SecuFirm2™ mounting kit
- Anti-vibration pads and fan-clips for second NF-F12
- Noctua metal case-badge
Extended specifications
Fan: NF-F12 PWM
Size (Form factor) | 120 x 120 x 25 mm (square) |
Speed range | 0 – 1500 rpm |
Airflow (max.) | 93.4 m³/h (54.97 CFM) |
Acoustical noise (max.) | 22.4 dB(A) |
Static pressure (max.) | 2.61 mm H₂O |
Rated voltage | 12 V |
Input power (typical) | 0.4 W |
Connector | 4-pin |
Colour | Brown |
Warranty | 6 years |
Mechanical specifications
Height with fan(s) | 158 mm |
Height without fan(s) | 158 mm |
Width with fan(s) | 125 mm |
Width without fan(s) | 125 mm |
Depth with fan(s) | 71 mm |
Depth without fan(s) | 45 mm |
Weight with fan(s) | 755 g |
Weight without fan(s) | 580 g |
Material: heatsink base | Copper, nickel plated |
Material: heatsink fins | Aluminium, nickel plated |
Material: heatpipes | Copper, nickel plated |
Interface heatpipes/heatsink fins | Soldered |
Colour | Brown |
Number of heatpipes | 5 |
Heatpipe diameter | 6 mm |
Fin count | 50 |
Mounting hole pitch | 78 mm |
Rack unit compatibility | 5U |
Base size | 38 x 40 mm |
Performance specifications
NSPR | 129 |
Logistical specifications
Packaging dimensions | 142 x 212 x 169 mm |
Packaging weight (including product) | 1300 g |
EAN | 4716123314943 |
UPC | 842431014306 |
Packaging unit | 12 pcs |
Packaging unit dimensions | 460 x 440 x 355 mm |
Packaging unit weight | 16.6 kg |
