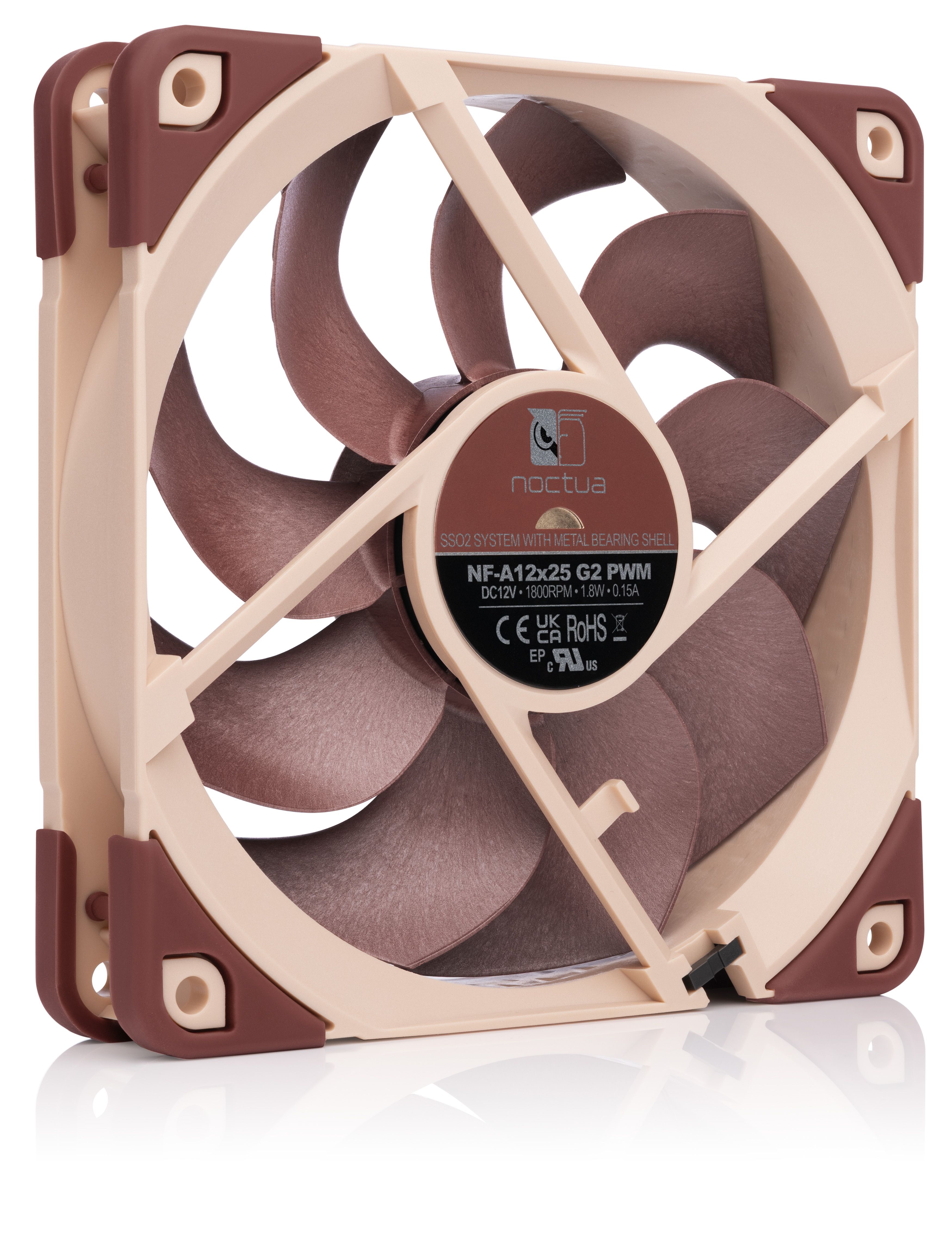

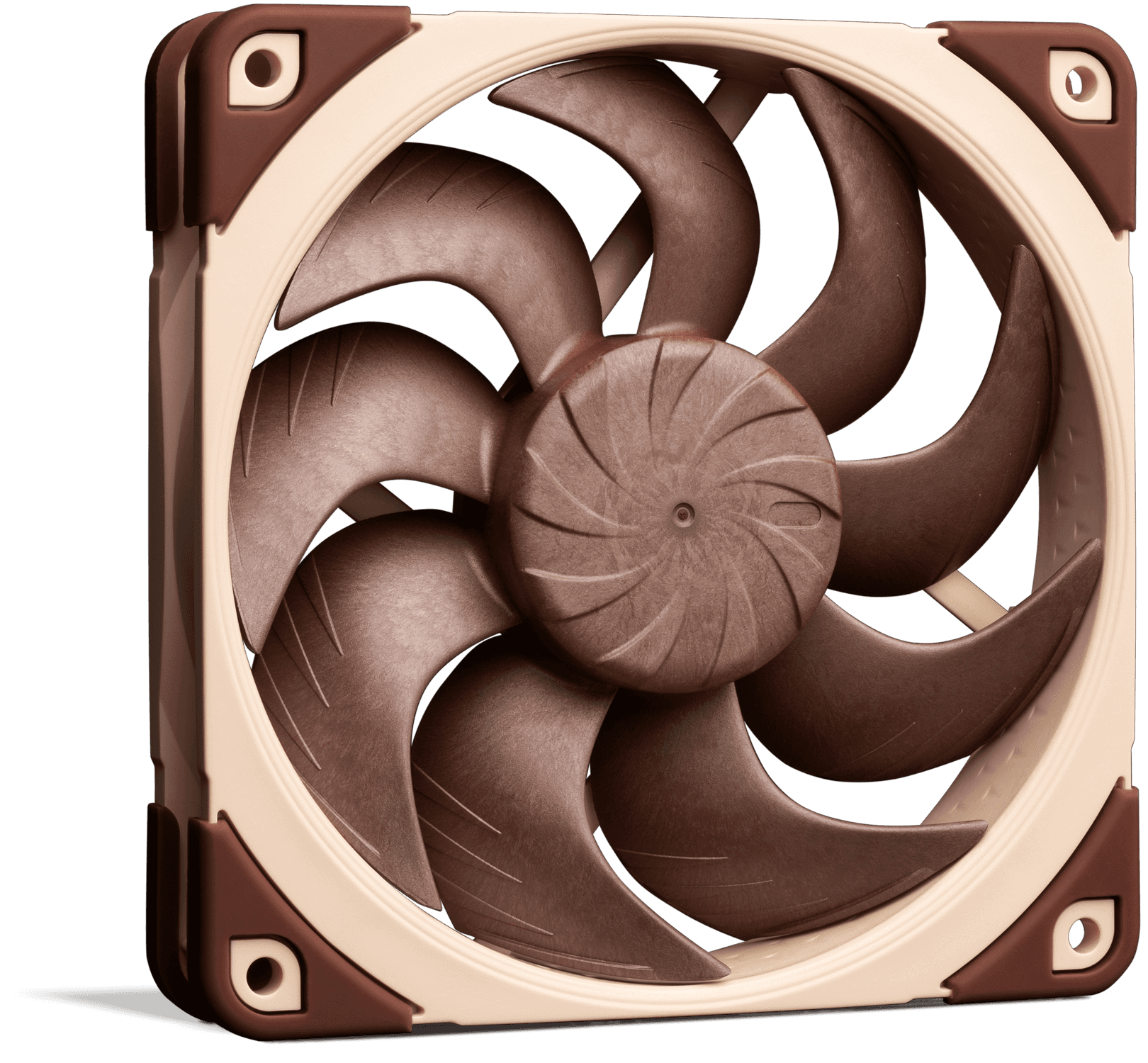

NF-A12x25 G2 PWM

Next-gen 120mm fan

Next-gen 12cm design

For unprecedented quiet cooling performance

State-of-the-art engineering

Progressive Bend impeller, Sterrox® LCP material & ultra tight tip clearance

Highly optimised P/Q curve

For outstanding performance in all applications

Variant:

PWM LS-PWM PWM Sx2-PP

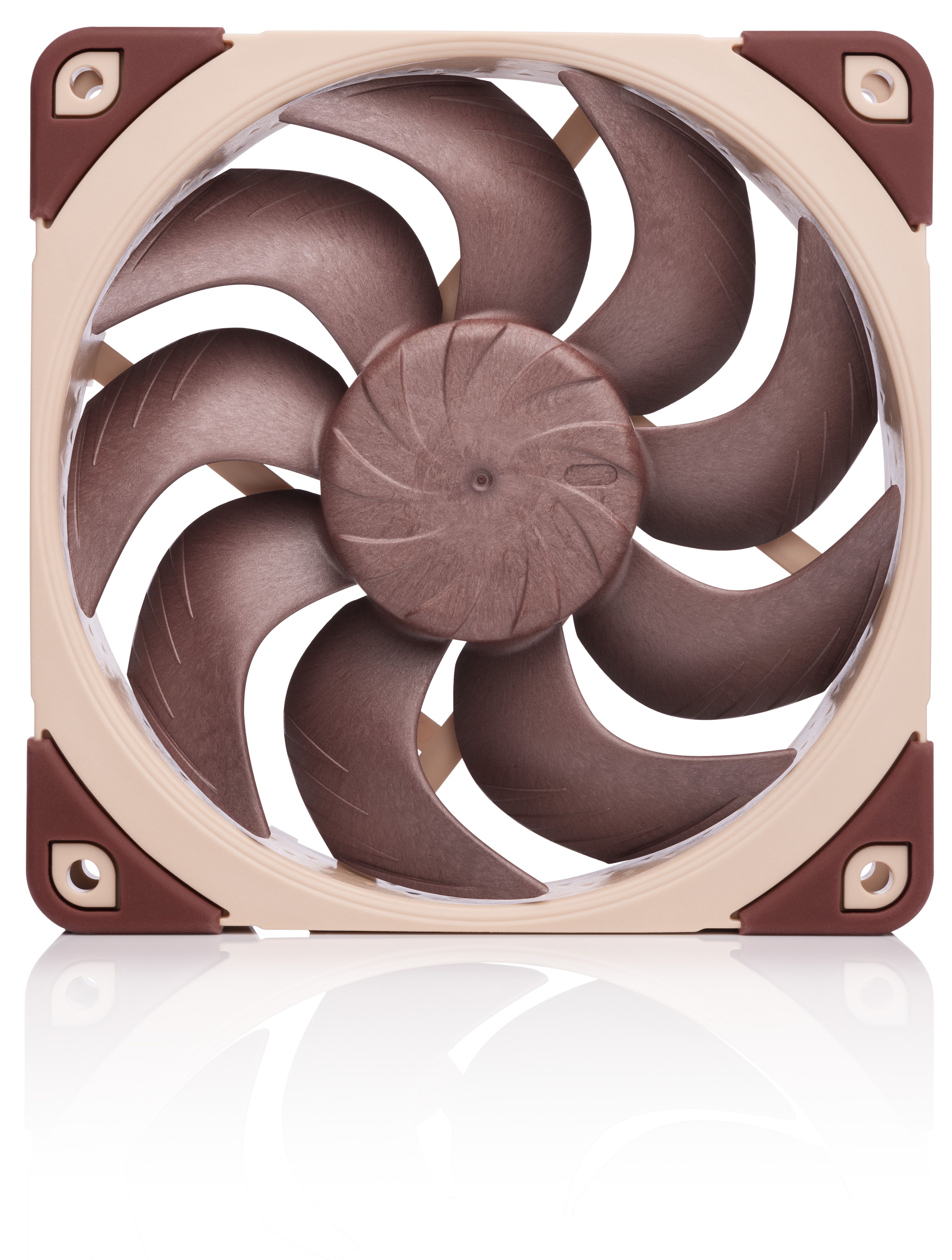

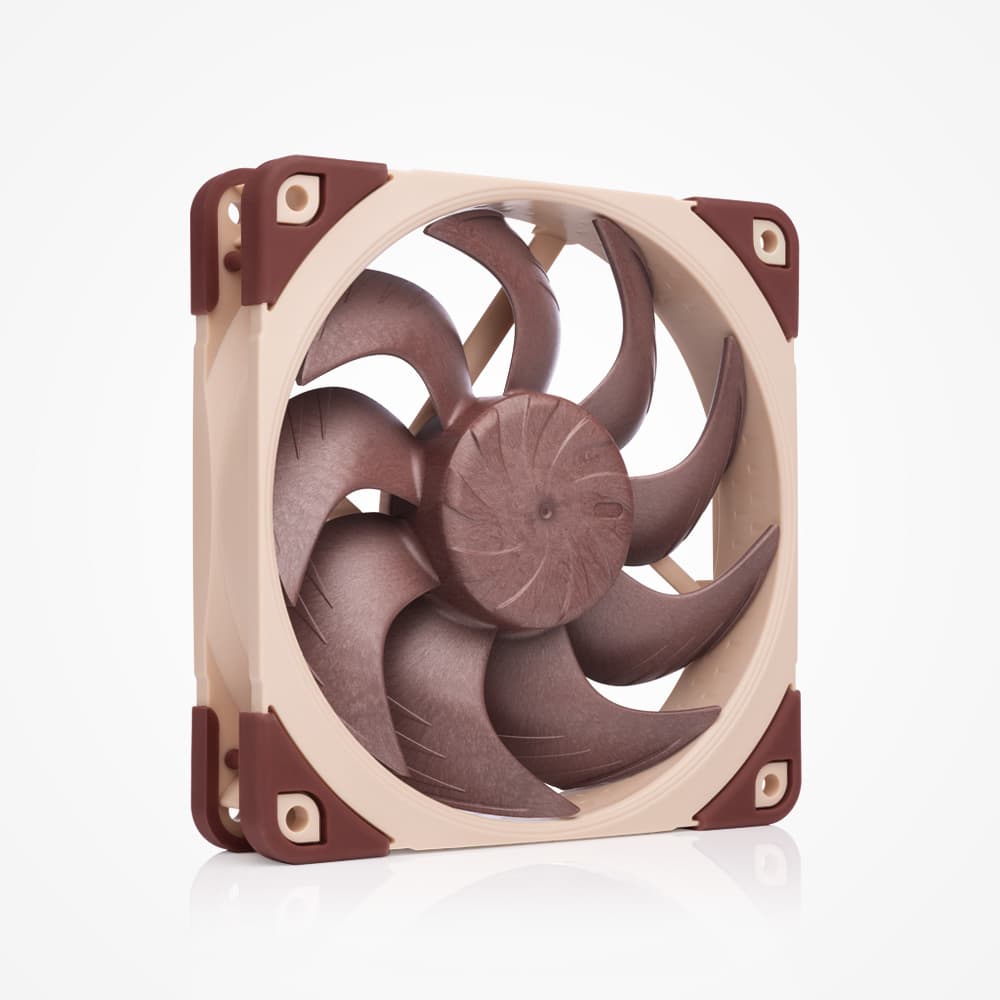

The NF-A12x25 G2 is the second-generation, further improved successor to the groundbreaking NF-A12x25 and 120mm sister model to the award-winning 140mm NF-A14x25 G2: Like its much-acclaimed predecessor, it is made from Sterrox® LCP and features an extremely tight tip-clearance of only 0.5mm. At the same time, its further optimised Progressive-Bend impeller with winglets, Flow Acceleration Channels and the new Centrifugal Turbulator Hub enable the G2 version to surpass the original NF-A12x25’s performance, making it Noctua’s undisputed new flagship in the 120mm range.

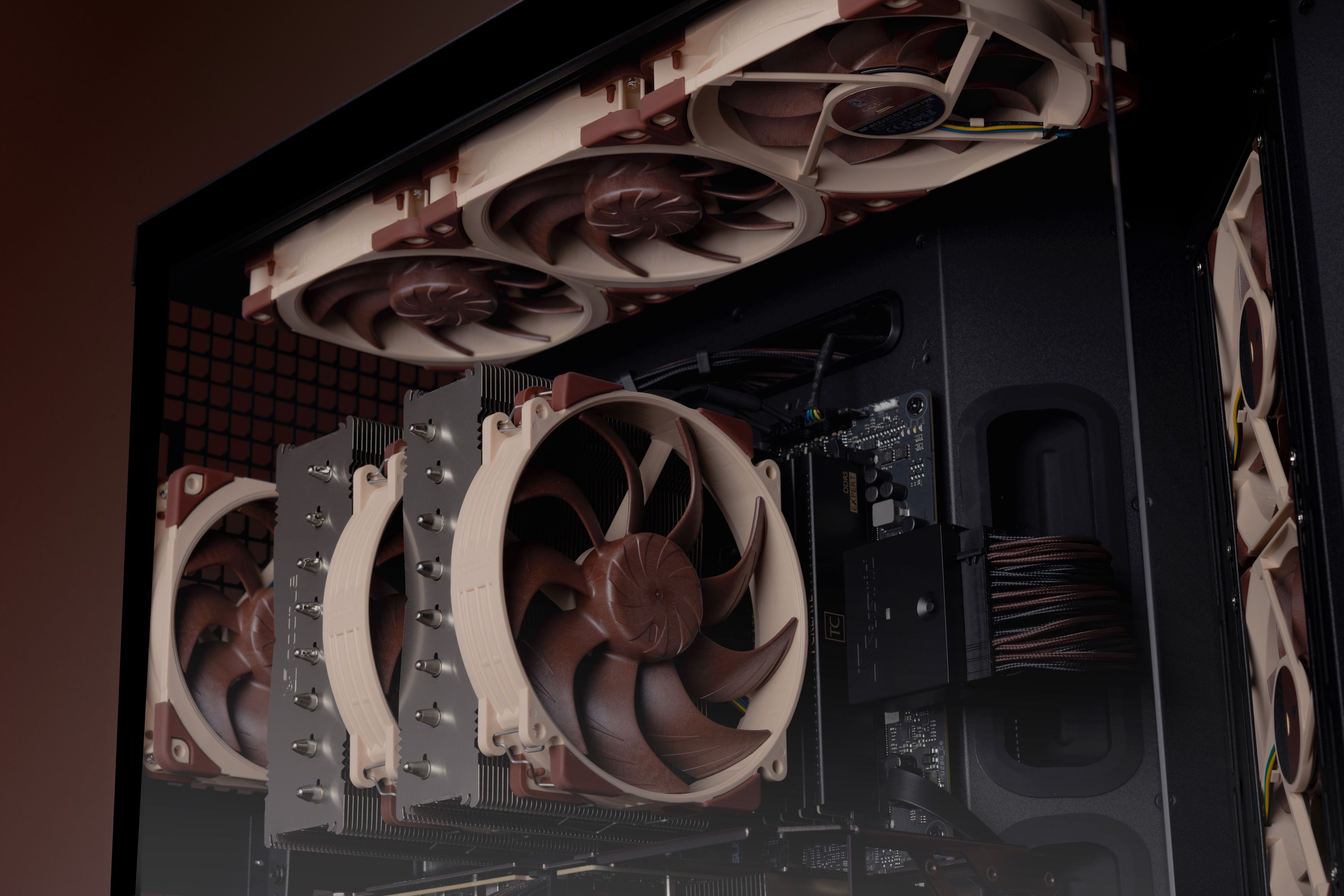

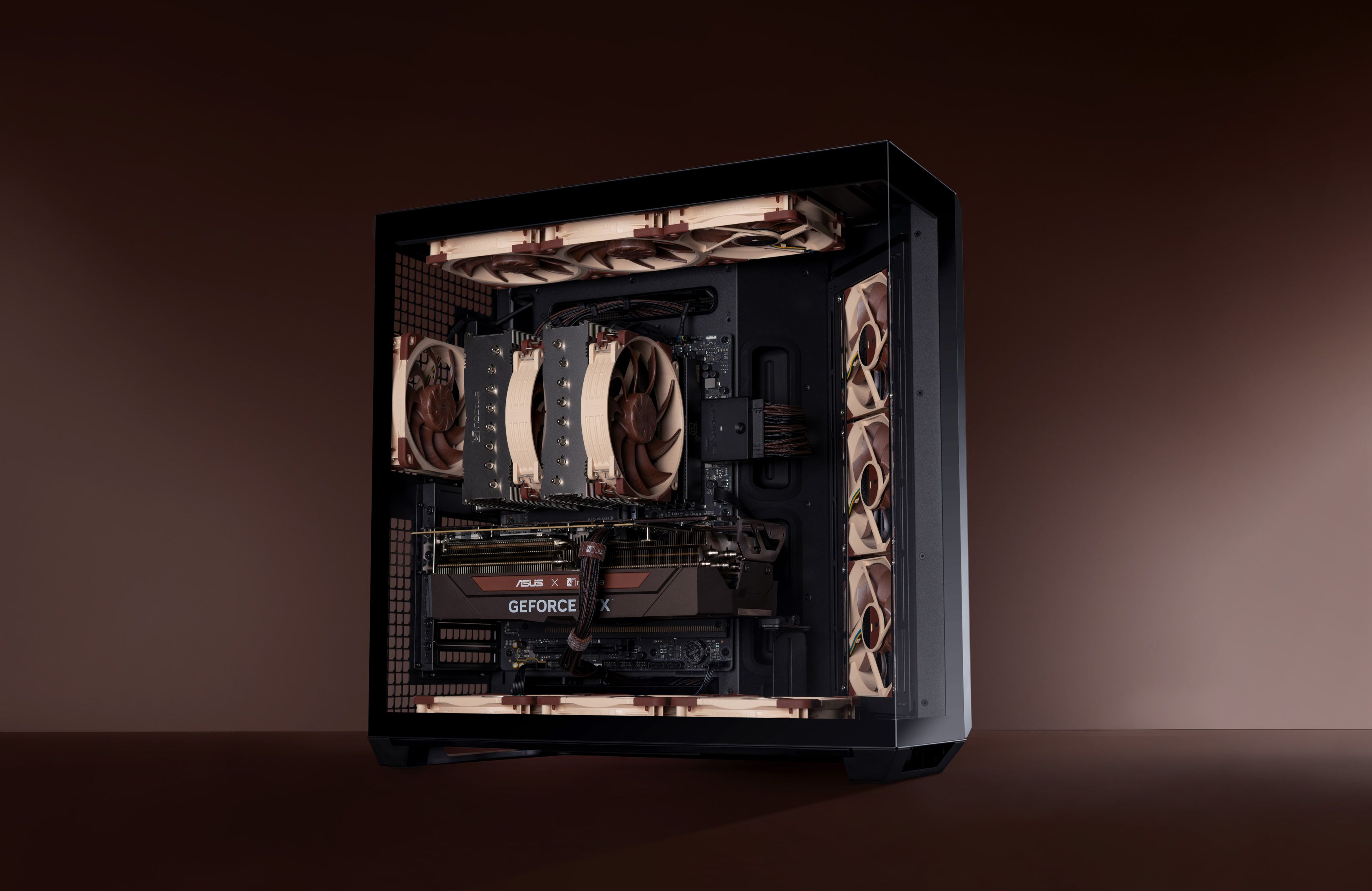

Just like its predecessor and the 140mm version, the NF-A12x25 G2 is a true all-rounder that yields superb results in all types of usage, regardless of whether it’s in low-impedance, airflow-oriented applications such as case cooling, or high-impedance, static pressure demanding scenarios such as on heatsinks and water cooling radiators. For application-specific optimisation, the NF-A12x25 G2’s AAO (Advanced Acoustic Optimisation) frame can be combined with the included NA-AVG1 anti-vibration gasket for a tighter seal on radiators or the optional NA-IS1-12 inlet side spacer frame, which can help to achieve superior suction acoustics and flow rates in challenging “pull“ configurations.

The 4-pin PWM version supports fully automatic speed control via PWM fan headers and comes with a Low-Noise Adaptor to reduce the maximum speed from 1800 to 1500rpm. Its ultra-low-loss etaPERF™ motor with Smooth Commutation Drive 2 technology doesn’t only provide unprecedented energy efficiency and running smoothness, but thanks to the new SupraTorque™ feature, it can also leverage extra torque headroom to keep the fan at its desired speed when working against back pressure, thereby ensuring even better performance on heatsinks and radiators.

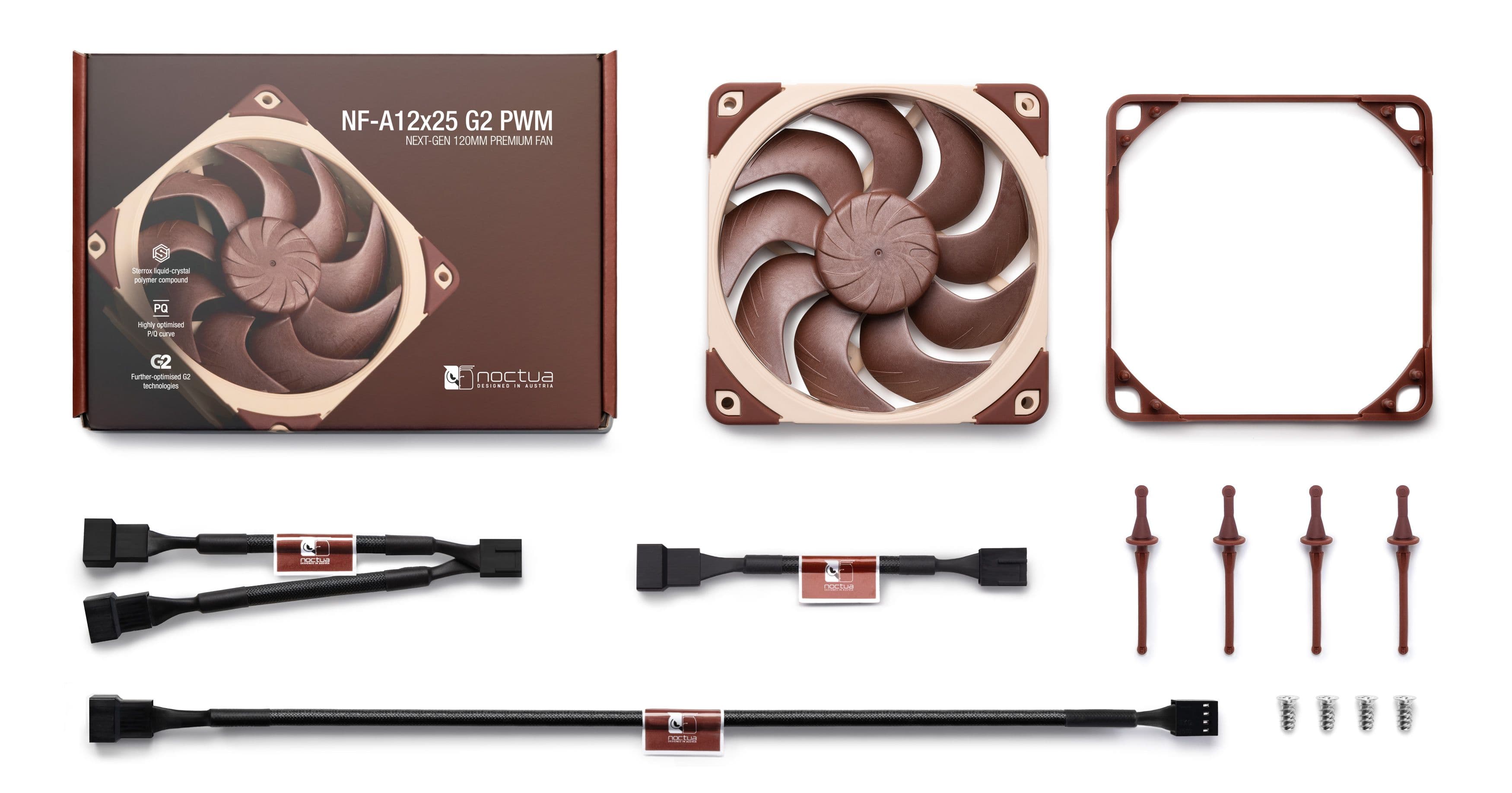

Topped off with Noctua’s reference-class SSO2 bearing, a rich bundle of accessories and 6-year manufacturer’s warranty, the NF-A12x25 G2 is a premium-quality product through and through. Its superior performance, comprehensive feature set, cutting-edge construction and state-of-the-art materials set a new standard within Noctua’s portfolio and make it an elite choice for the most discerning demands.

techPowerUp.com•VSG

“Incredible performance across the board, quieter than the competition.”

PC Gamer•Jacob Ridley

“The best overall: The NF-A12x25 G2 excels in testing. At 1200, 800, and 450 RPM, it outperformed all other fans we tested. There are faster fans, but few others can compete on as many metrics as this one.”

FunkyKit.com•Bartosz Waluk

“The new fans are definitely the best you can buy in stores. They’re not cheap, but if you plan on building a PC and forget about the fans for long years, then Noctua is the answer. I won’t hide that we have reviewed and used Noctua fans for over ten ...”

HWCooling.net•Ľubomír Samák

“The Noctua NF-A12x25 G2 (PWM) is the most efficient fan we’ve ever tested. It clearly outperforms its predecessor (NF-A12x25 “G1”), as well as the Phanteks T30 and all competing 120 mm fans in the extensive database we’ve built so far. The NF-A12x25 ...”

PC Games Hardware•Jan Hauck

“Noctuas neuer NF-A12x25 G2 kann sich im Test als neue Evolutionsstufe beweisen. Wie das größere 140-mm-Modell macht auch der kleine Bruder einen deutlichen Leistungssprung und überzeugt auf ganzer Linie. Lediglich die geringe maximale Drehzahl schrän...”

Hardwareluxx.de•Philipp Moosdorf

“Noctua hat beim NF-A12x25 G2 wirksame Optimierungsmaßnahmen umgesetzt und so tatsächlich einen Fortschritt gegenüber dem Vorgänger erzielt. Wer einen vielseitig nutzbaren Premiumlüfter mit überschaubarer Maximaldrehzahl sucht, ist entsprechend gut be...”

HardwareAsylum.com•Dennis Garcia

“This is a second-generation release of the NF-A12x25 that we reviewed back in 2018 and is by far one of the best fans I have ever used. The G2 takes things to the next level with only a few minor tweaks to the design.”

QWERTY Articles•Justin Vendette

“A meticulously engineered fan that delivers top-tier cooling with whisper-quiet operation, the NF-A12x25 G2 sets a new gold standard for 120 mm PC fans.”

CowcotLand.com•Sébastien Vandeborre

“Après une longue attente, Noctua frappe fort sur le segment haut de gamme. Avec son NF-A12x25 G2, la marque propose un ventilateur bon à tout faire qui fonctionne particulièrement bien, et ce malgré une vitesse de rotation faible sur le papier si on ...”

Key features

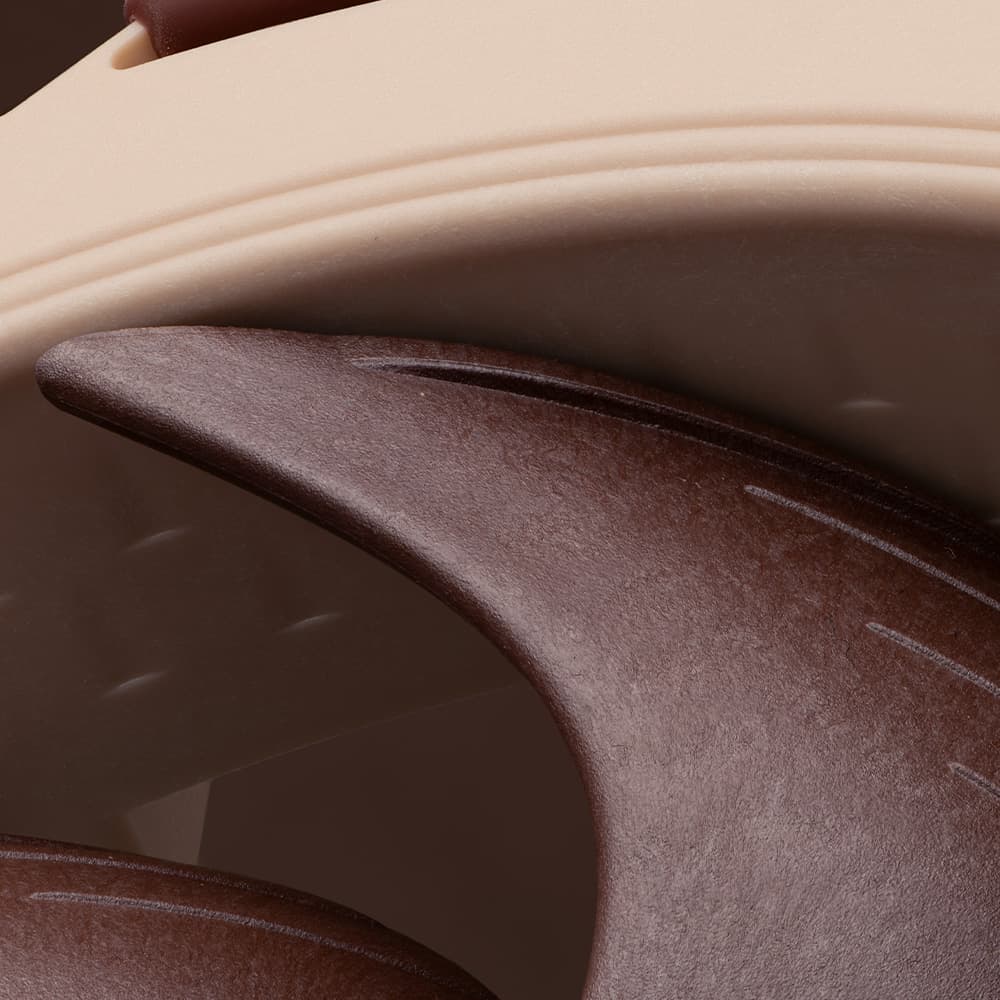

Progressive-Bend impeller

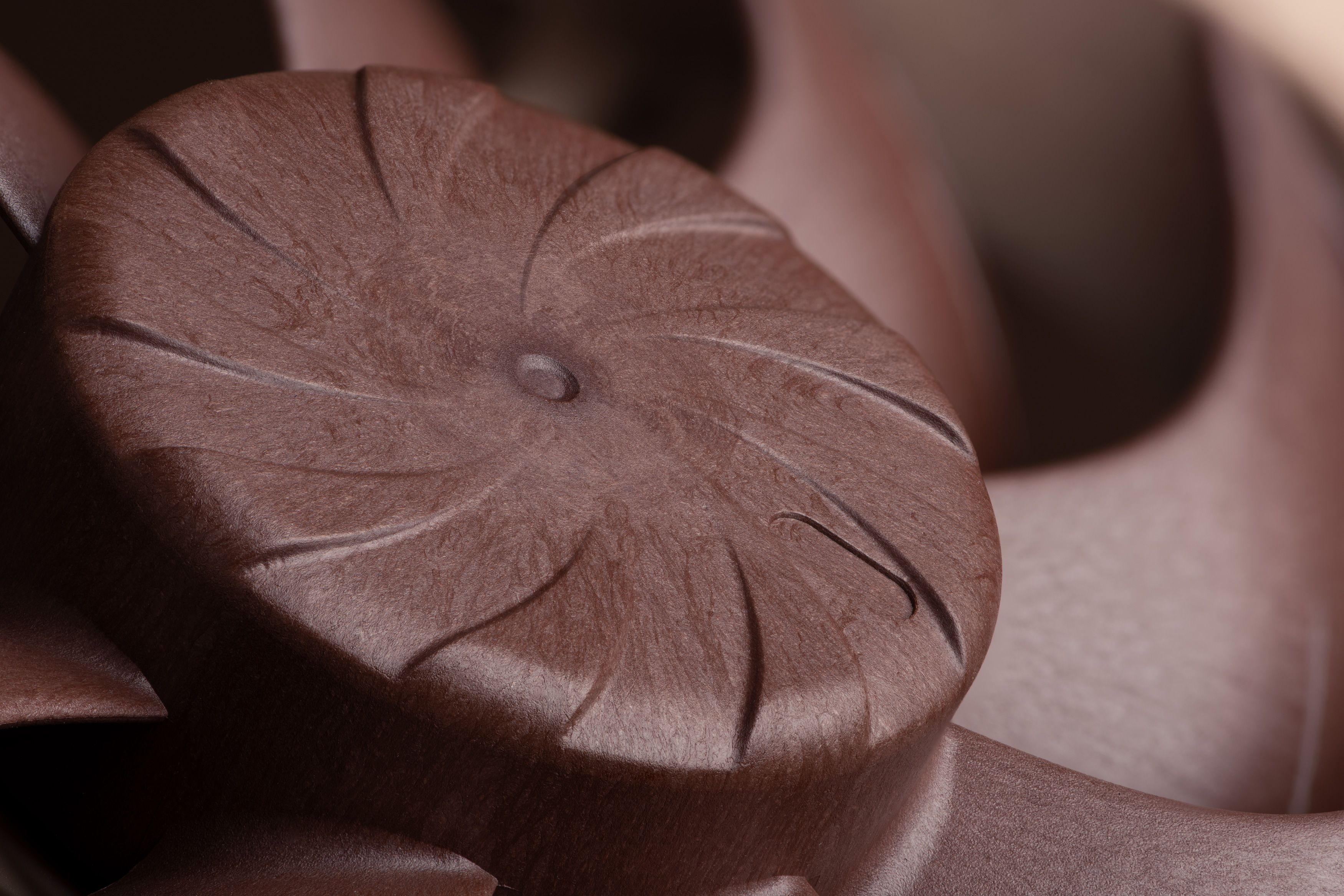

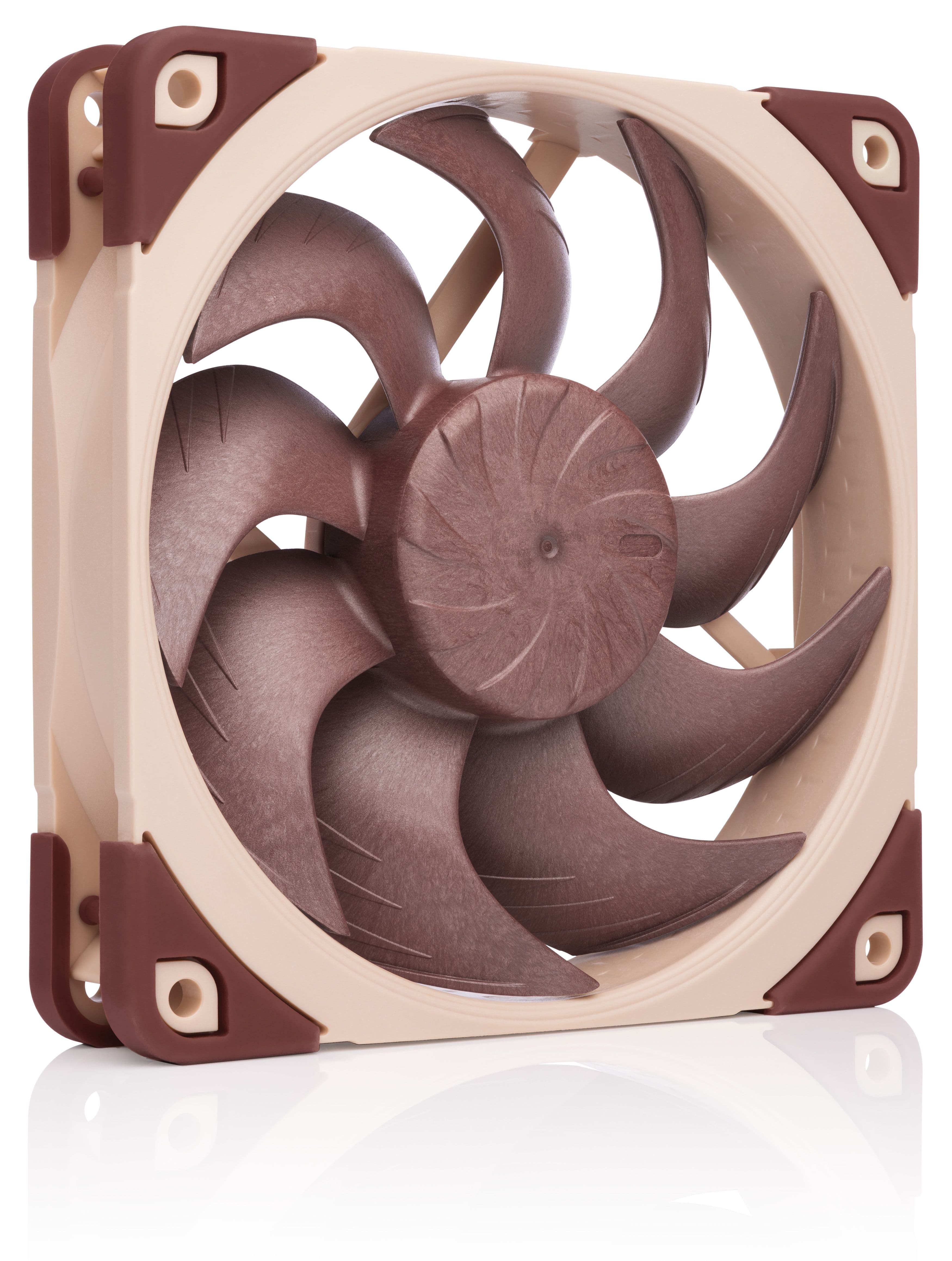

The NF-A12x25 G2 features a unique Progressive-Bend impeller with Flow Acceleration Channels and winglets. Its nine blades are swept backwards close to the hub and progressively bent forward further out. Working in tandem with the Centrifugal Turbulator hub, this design not only helps to push more air towards the outer blade areas where efficiency is higher but also assures maximum lift and near uniform loading across the entire blade span.

Diagram of Noctua's SSO2 fan bearing. Blue arrows show magnetic self-stabilization, green dashed lines indicate magnetic field.

SSO2 bearing

The NF-A12x25 G2 features the further optimised second generation of Noctua's renowned, time-tested SSO bearing. With SSO2, the rear magnet is placed closer to the axis to provide even better stabilisation, precision and durability.

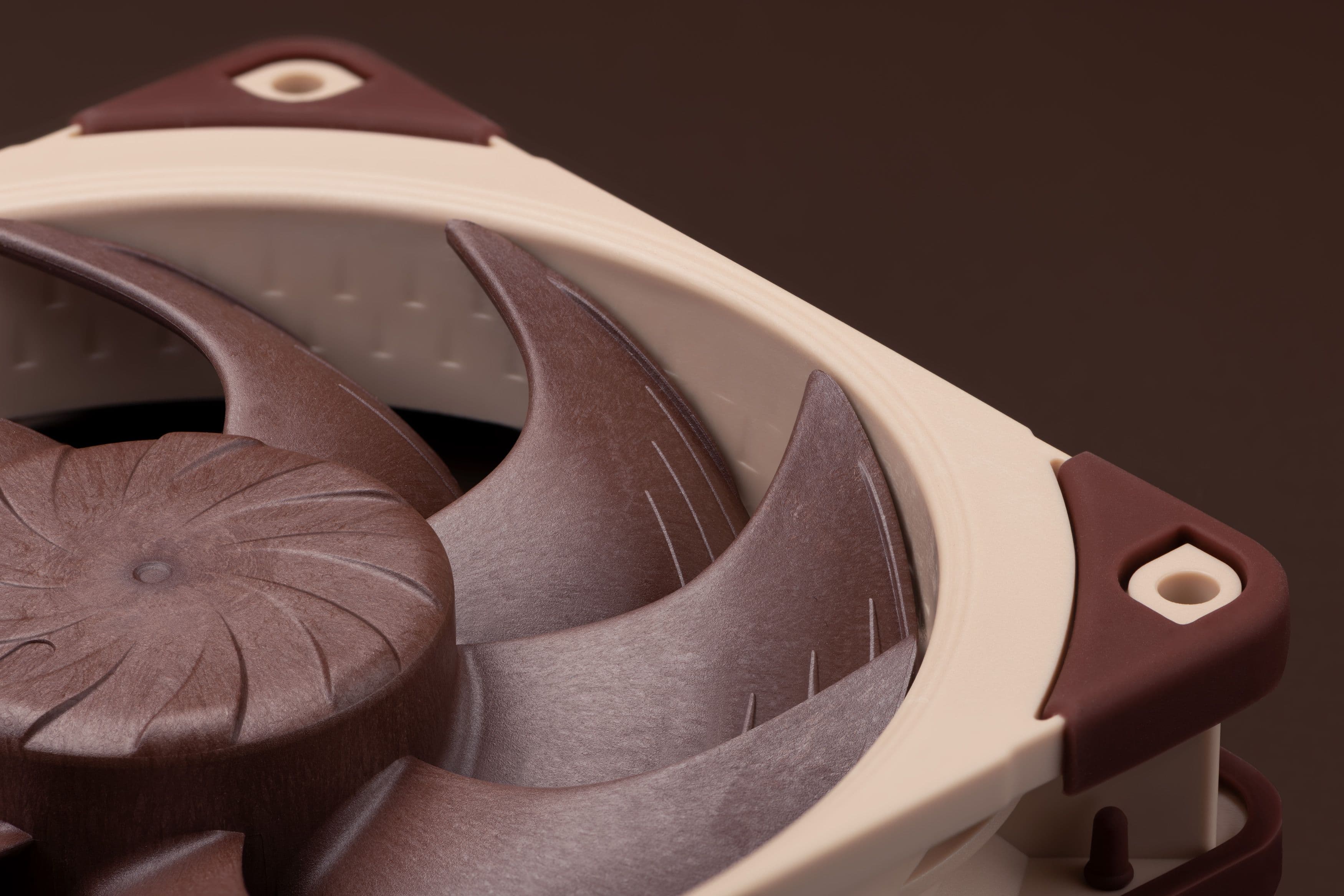

Ultra-tight tip clearance

The NF-A12x25 G2 has an extremely tight tip clearance (distance between the blade tips and the inside of the frame) of only 0.5mm. This highly ambitious design helps the NF-A12x25 G2 to work more efficiently against back pressure, such as on heatsinks or radiators, by reducing leak flows through the gap between impeller and frame.

Highly optimised P/Q curve for all applications

The NF-A12x25 G2’s sophisticated aerodynamic design allows for a pressure to airflow (P/Q) curve that is extremely strong in the critical mid-section. This means that the NF-A12x25 G2 is a true jack-of-all-trades with excellent performance in both static pressure demanding and airflow demanding applications.
