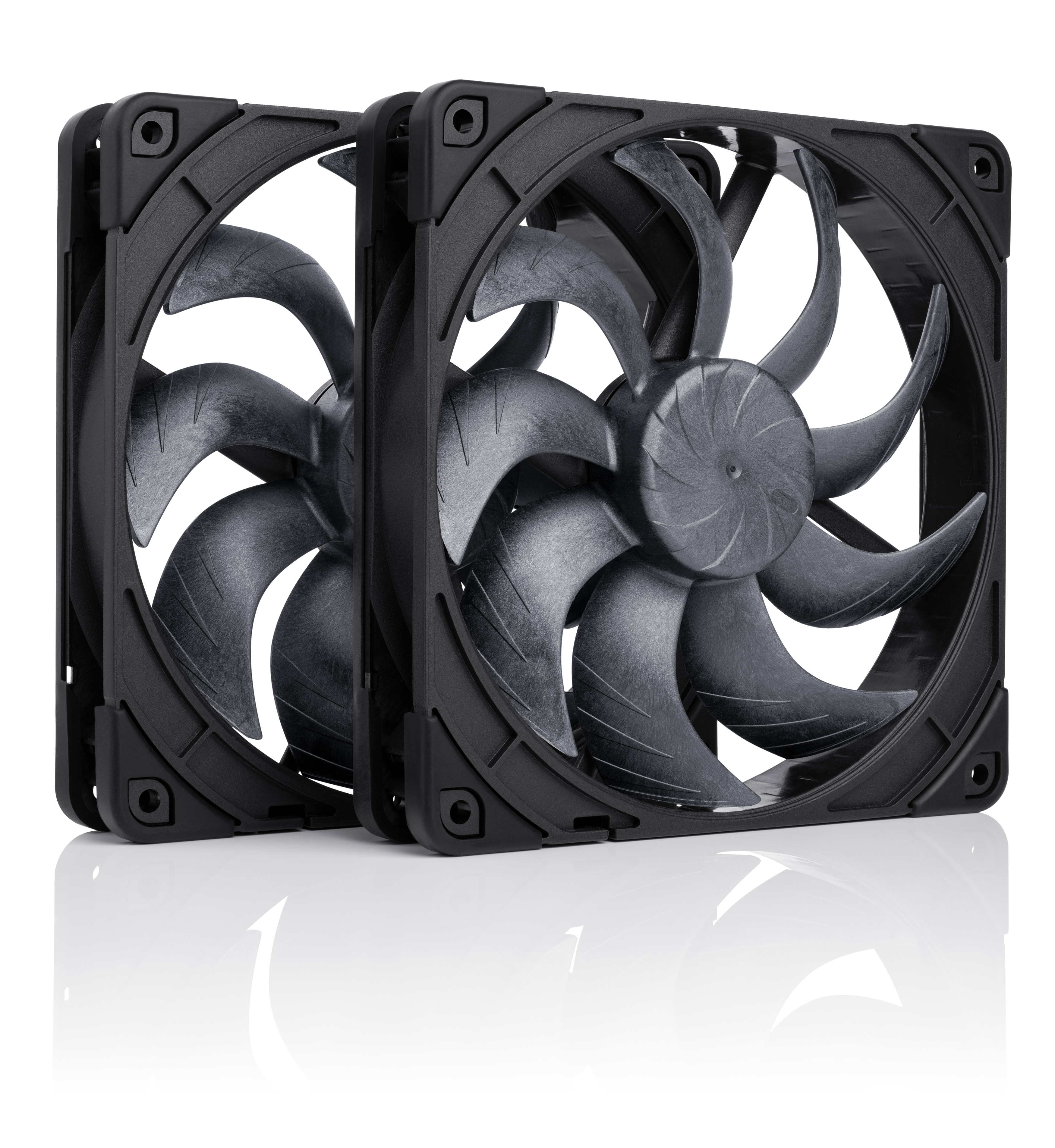

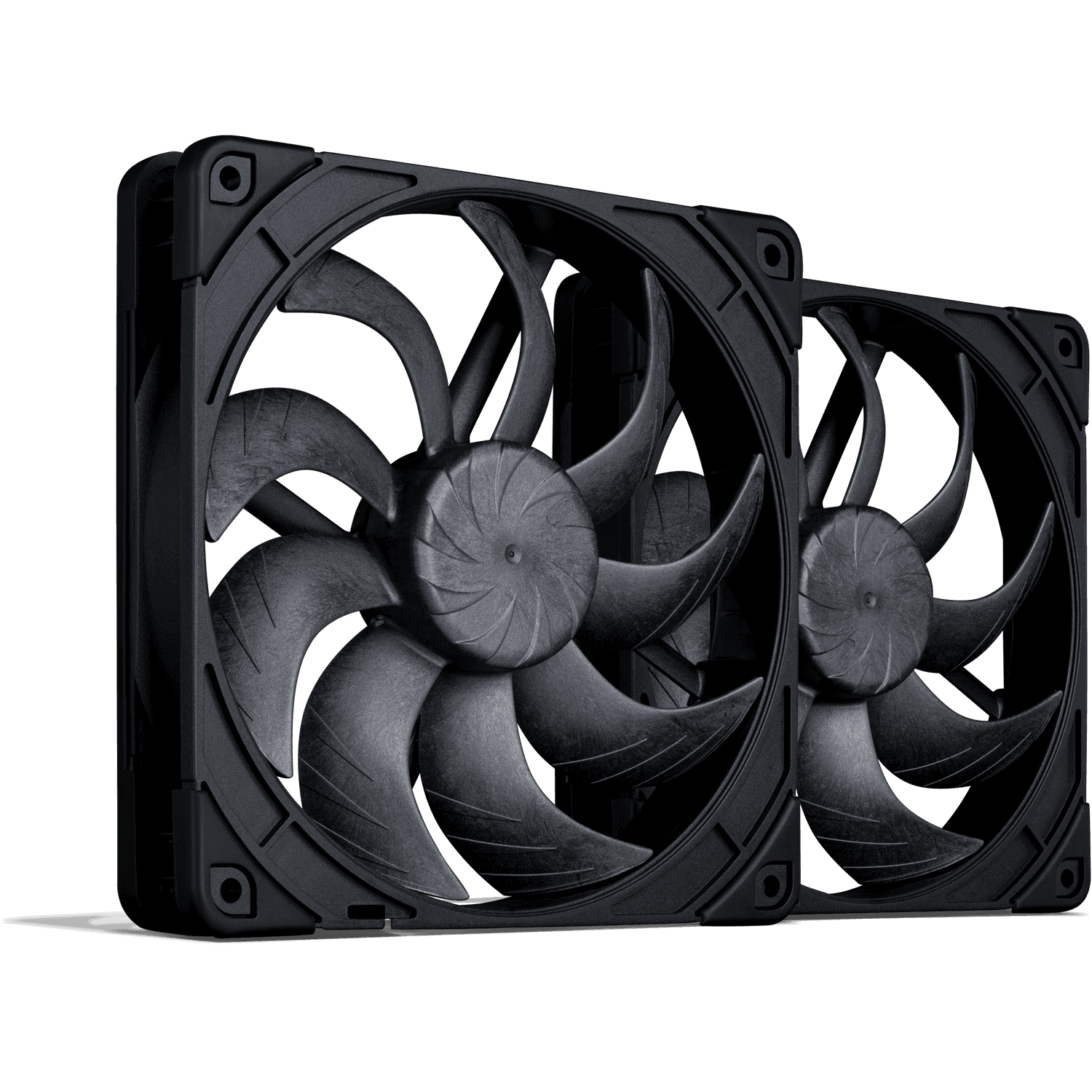

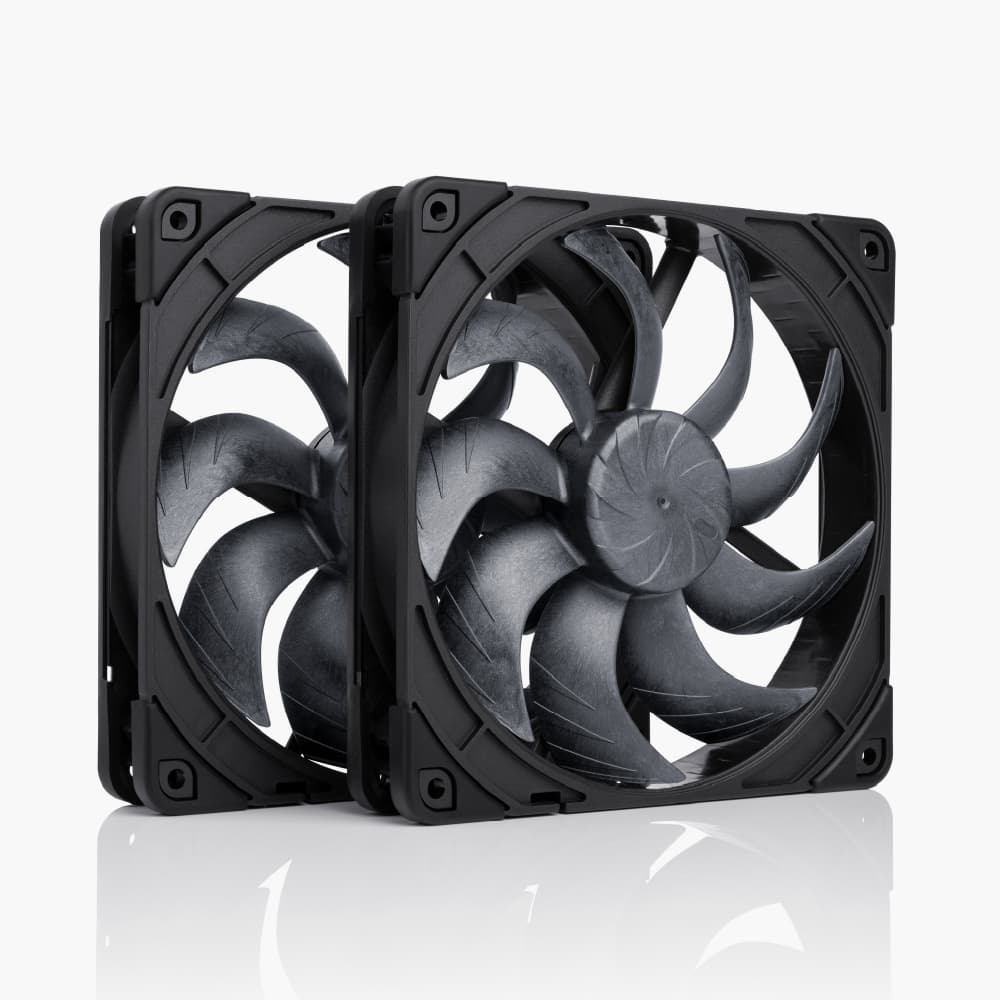

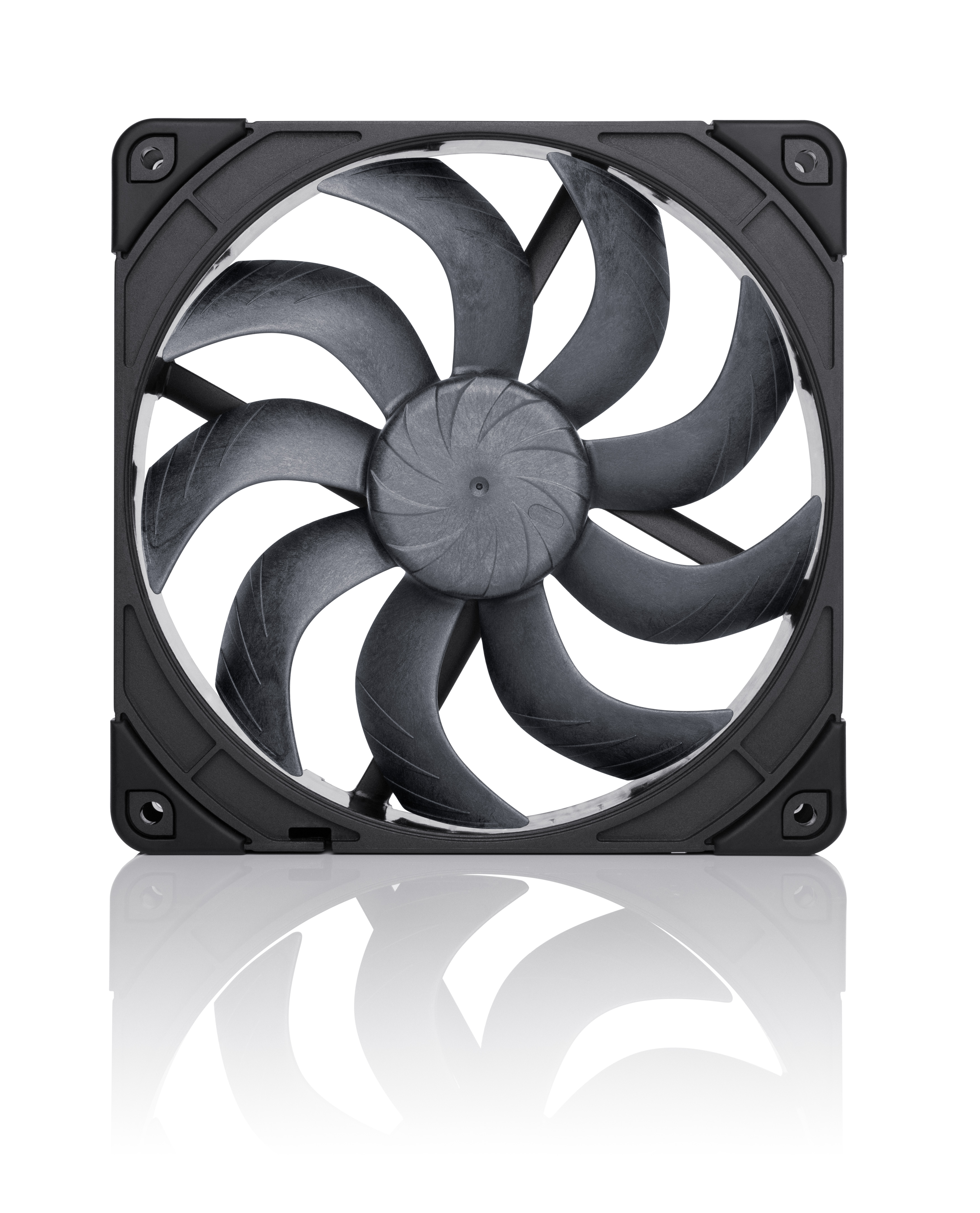

NF-A14x25 G2 PWM Sx2-PP chromax.black

Next-gen black 140mm dual fan set

Next-gen 14cm design

Dual fan set

chromax.black edition

NF-A14x25 G2 PWM Sx2-PP chromax.black

Next-gen black 140mm dual fan set

Next-gen 14cm design

For unprecedented quiet cooling performance

Dual fan set

For push-pull and side-by-side usage

chromax.black edition

All-black design, customisable with optional anti-vibration pads

Variant:

PWM LS-PWM PWM Sx2-PP

Product line:

State-of-the-art quiet cooling performance for PC cases and water cooling radiators in a sleek all-black design: The chromax.black dual set of the award-winning NF-A14x25 G2 140mm fan.

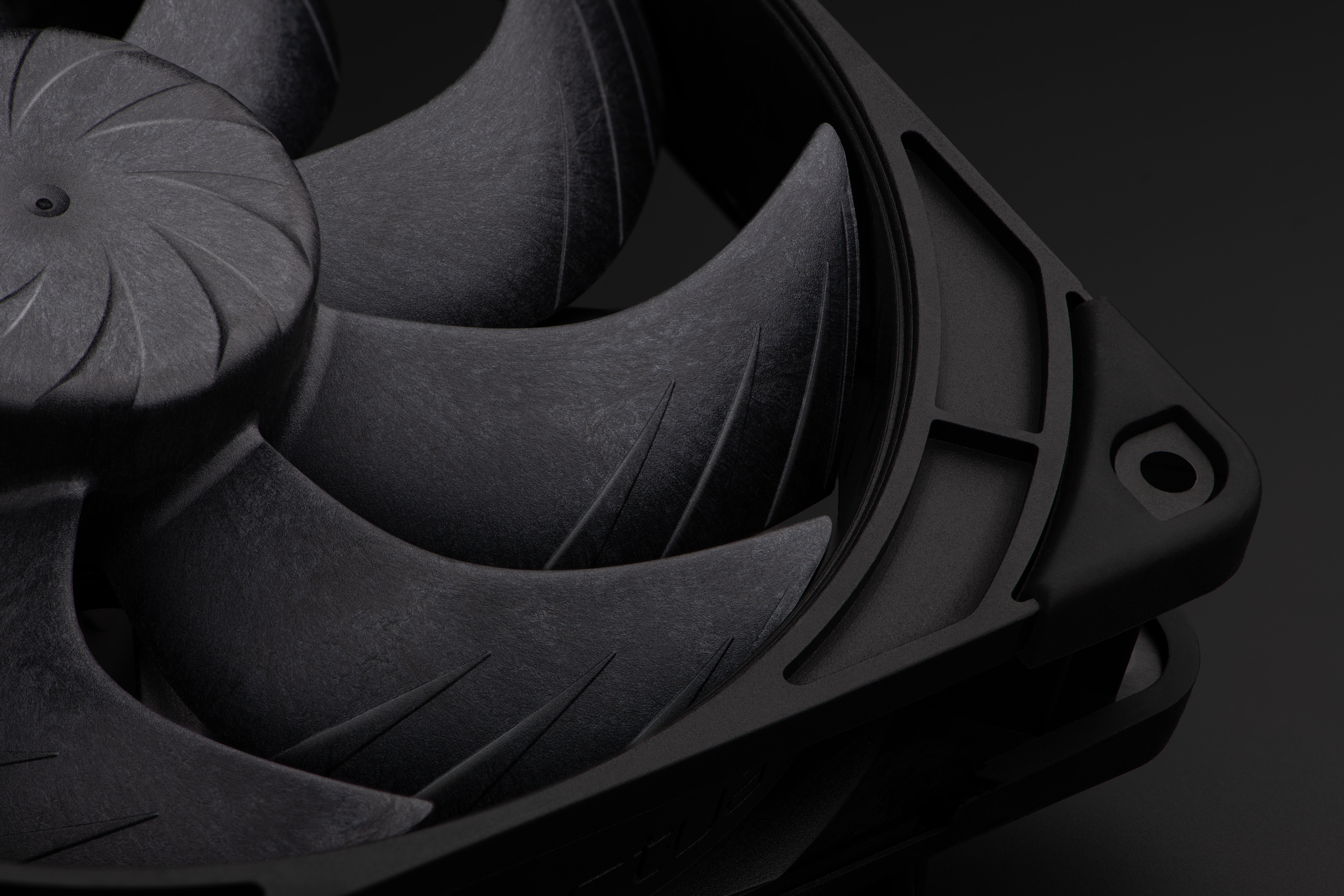

Succeeding the iconic NF-A14, the NF-A14x25 G2 has quickly established itself as a new benchmark for premium quality quiet 140x25mm fans. Its advanced aerodynamic engineering featuring a novel Progressive Bend impeller design with Centrifugal Turbulator hub, winglets and a record tight tip clearance of only 0.7mm enables the G2 model to provide a significant boost in performance-to-noise efficiency over its renowned predecessor.

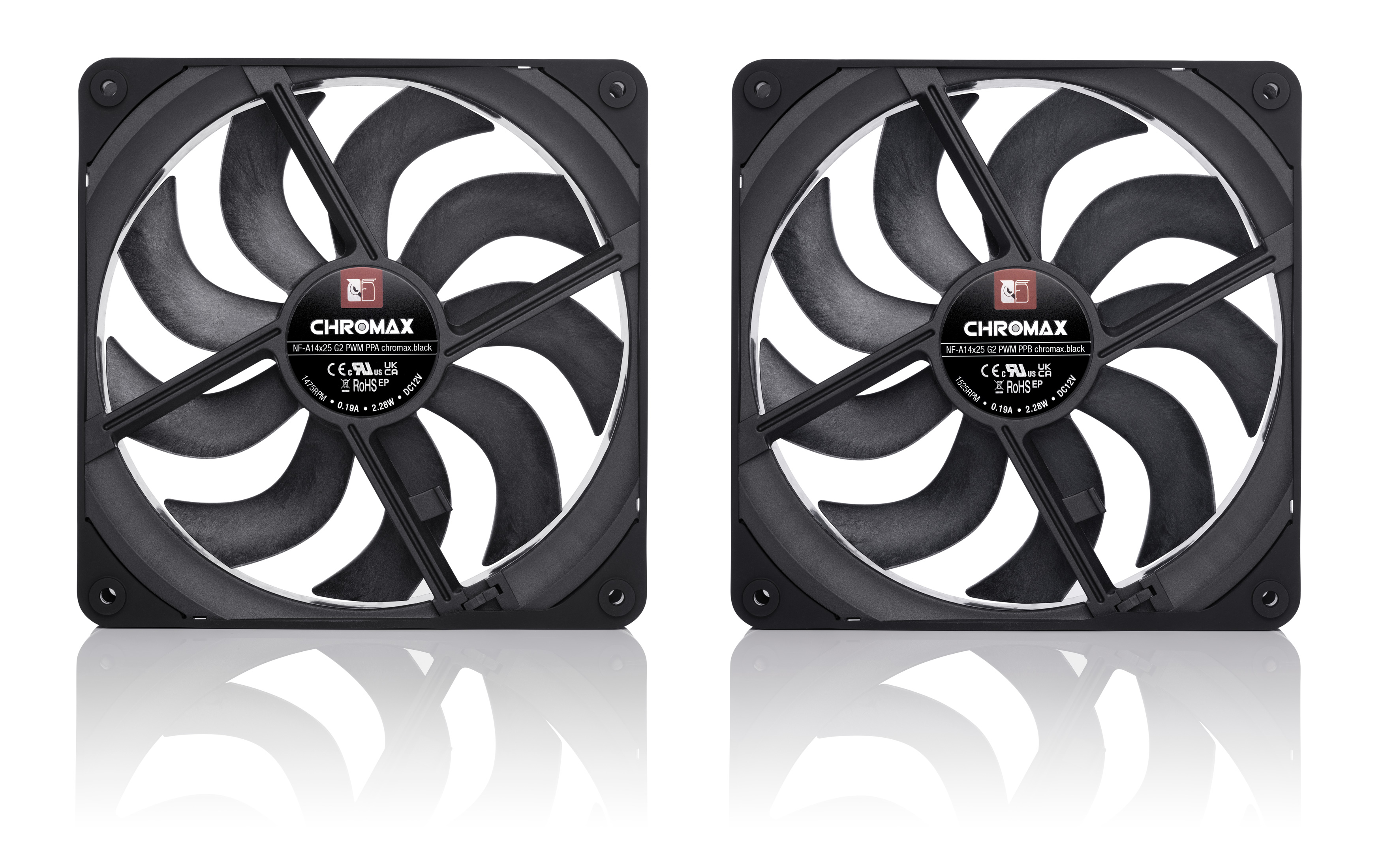

The Sx2-PP set contains two fans that are slightly offset in speed (+/- ~25rpm) in order to avoid undesirable harmonic phenomena such as beat frequencies, which can be heard as intermittent vibrations or periodic humming due to interference. This makes it ideal for both push-pull applications and situations where two or more fans are running side by side such as in typical case fan configurations as well as on 280 or 420mm water cooling radiators.

Topped off with Noctua’s trusted premium-grade SSO2 bearing, more than 150,000 hours MTTF and a 6-year manufacturer’s warranty, the NF-A14x25 G2 PWM Sx2-PP chromax.black is the perfect choice for users who are looking for a dual 140mm fan set that combines cutting-edge quality, quietness and performance in an all-black style.

Enostech.com•Nauman Siddique

“In terms of performance, the Noctua fans have a marginal lead of 0.9°C over be quiet! fans but win here comes from the fact that Noctua fans spin at around 1500 RPM to deliver this result, compared to 2000 RPM on be quiet! fans for the result. ”

El Chapuzas Informático•Iván Martínez

“Ya los usemos para un disipador o para un sistema de refrigeración líquida, conseguiremos un excelente flujo de aire a una sonoridad ridícula.”

DataHolic.de•Marcel Bauschke

“Er ist nicht der Lüfter, den man „noch schnell mitbestellt“, weil er im Warenkorb auftaucht. Er ist der Lüfter, um den herum man bewusst plant – sei es das Silent-Build, die Workstation oder die hochwertige Luftkühlung, die möglichst lange halten sol...”

AndroidPC.es•Joaquin Prida Trujillo

“Estos nuevos ventiladores Noctua NF-A14x25 G2 y Noctua NF-A14x25r G2 nos ofrecen una calidad elevada y alto rendimiento. Unos productos que nos darán siempre buen resultado durante muchos años.”

mod-your-case.de•Patrick Seus

“Wie wir es auch von den ursprünglichen NF-A14x25 G2 Modellen her kennen, können auch die neuen chromax.black Modelle der NF-A14x25 G2 Lüfterserie durch die stetige Weiterentwicklung besonders beim Einsatz auf Kühlern bzw. Radiatoren mit einem geringe...”

Key features

Award-winning NF-A14x25 G2 design

Providing a significant performance boost over the renowned first-generation NF-A14, the NF-A14x25 G2 has become a new favourite among quiet cooling enthusiasts. With rave reviews and dozens of awards from hardware media around the world, the G2 model is a proven premium choice for the highest demands.

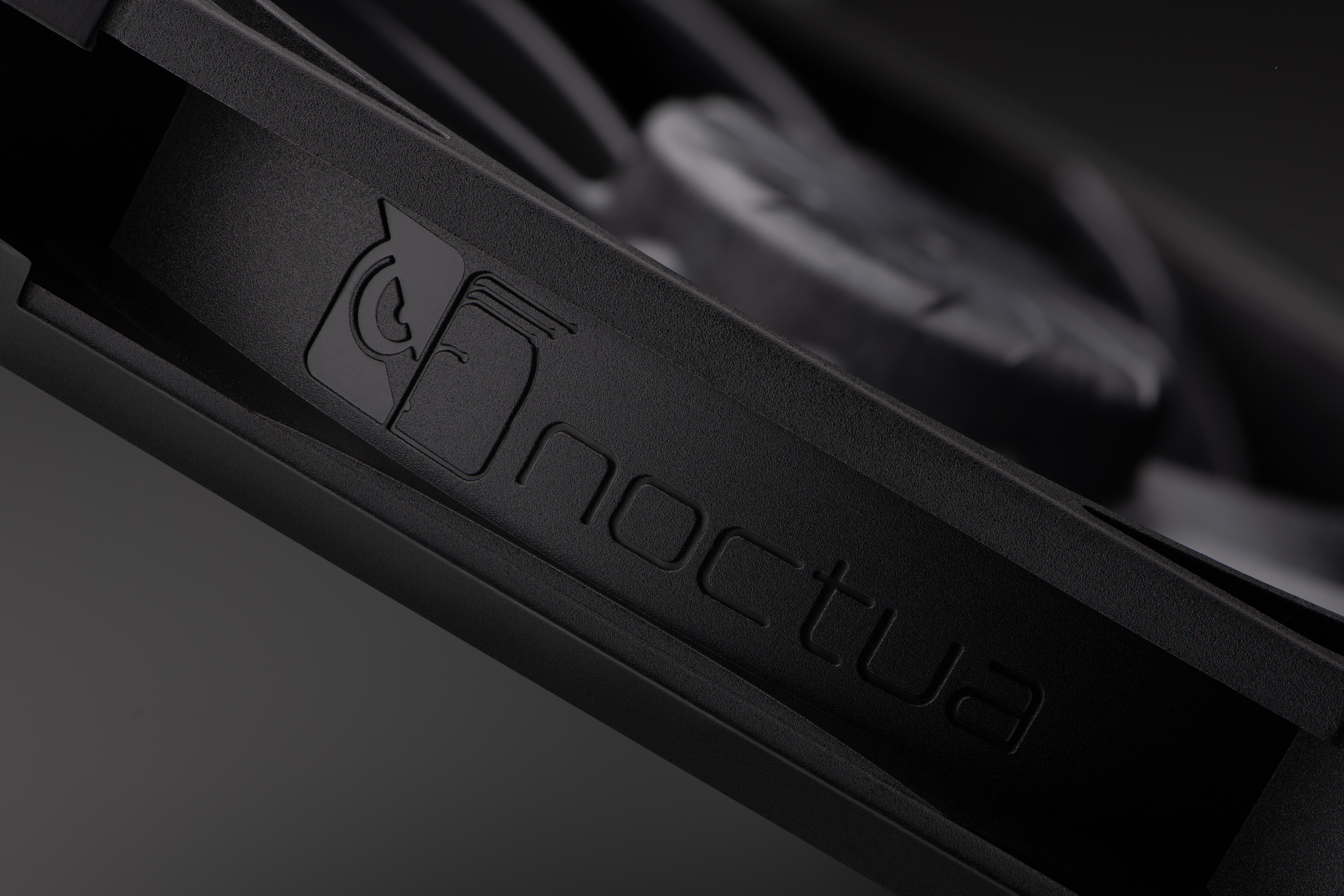

chromax.black edition

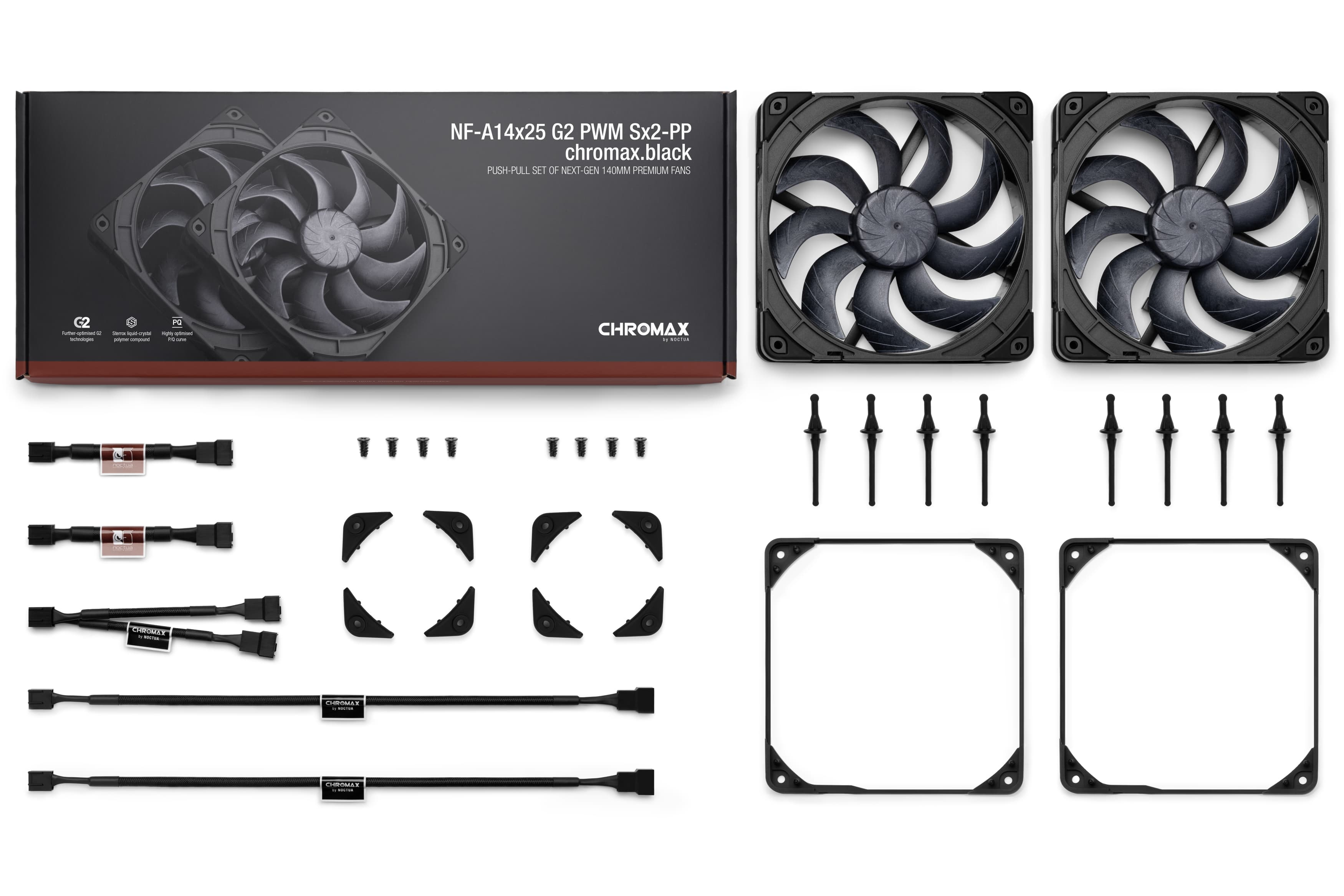

From the impeller and fan frame to the anti-vibration pads, anti-vibration gasket, anti-vibration mounts, screws and cables, the chromax.black edition is black from head to toe, making it easy to integrate into all-black PC builds and various other environments.

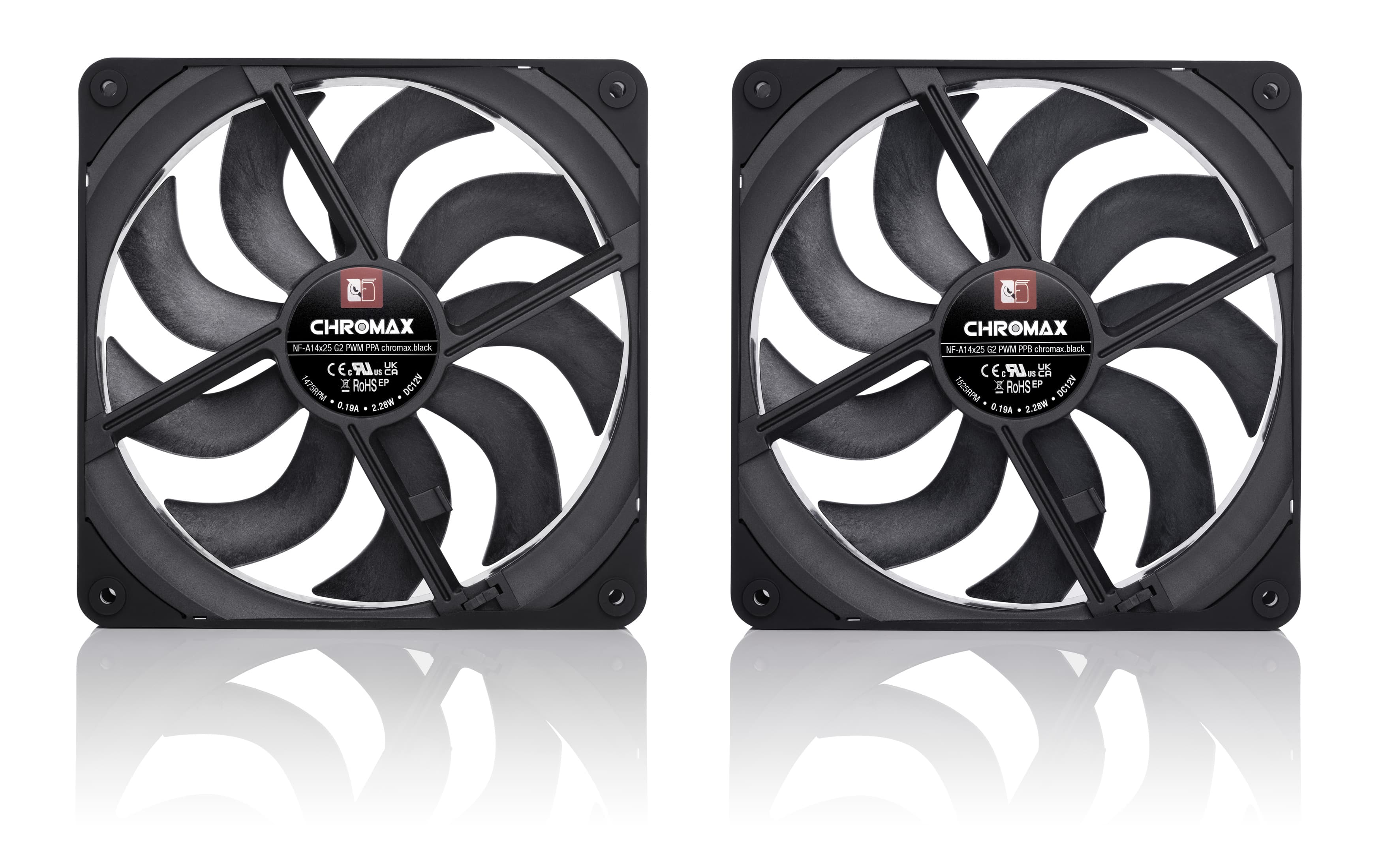

Dual fan set for push-pull and side-by-side usage

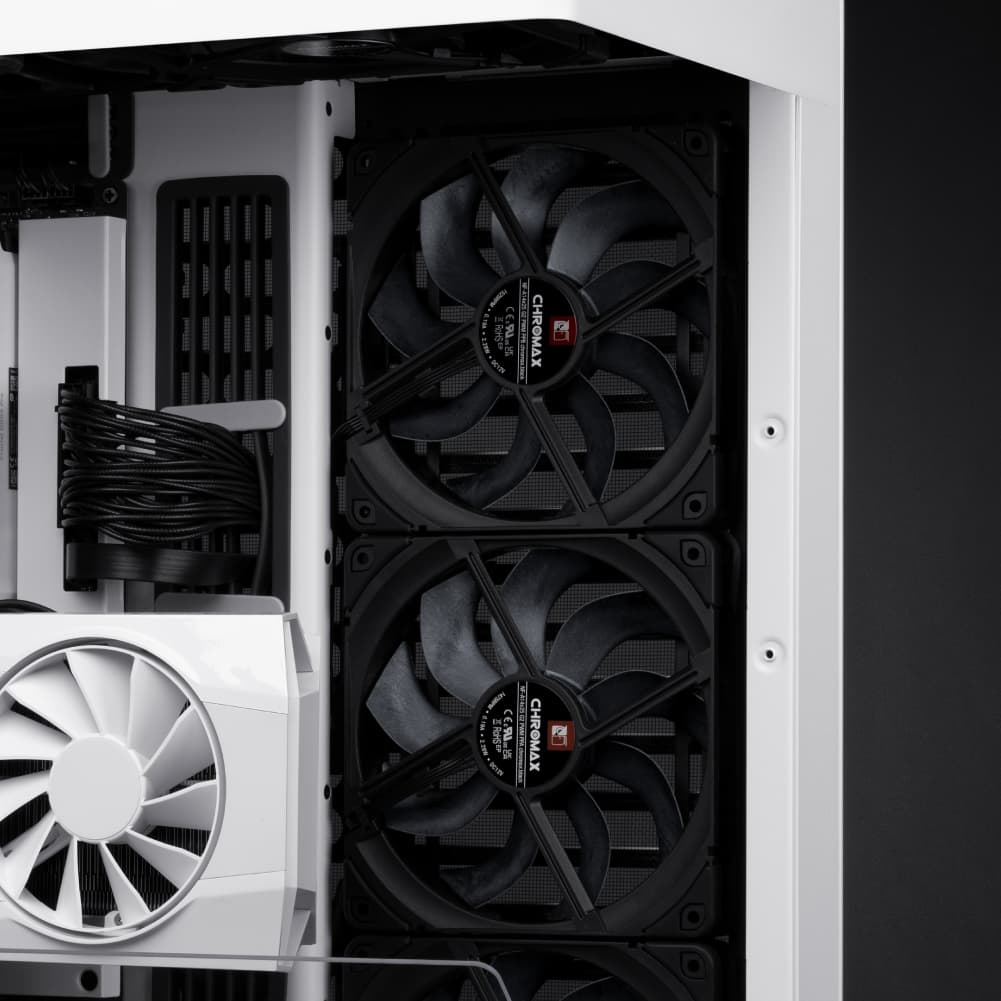

Bundling two NF-A14x25 G2 PWM fans that are speed-offset by +/- ~25rpm in order to avoid undesired acoustic interaction phenomena, the Sx2-PP set is the ideal choice for push-pull configurations as well as situations where two fans or more are operating side by side such as on 280mm radiators or in typical case cooling applications.

SupraTorque™

Most fans become slightly slower when working against back pressure such as on heatsinks and radiators, which results in reduced performance. Enabled by the new NA-FD6 driver IC, Noctua’s SupraTorque™ technology allows the fan to leverage additional torque headroom when required in order to keep its RPM speed at the desired level no matter the airflow resistance, ensuring consistent performance even in the most demanding conditions.
