What is the difference between LGA20xx Narrow ILM and LGA20xx Square ILM?

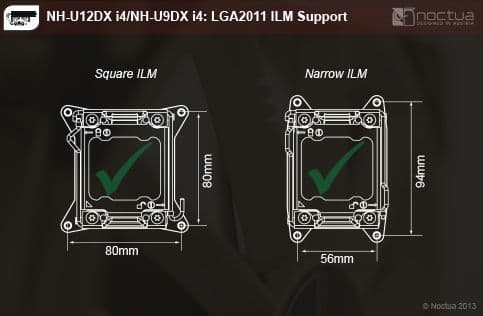

There are two different types of ILM (Independent Loading Mechanism) for Intel’s LGA20xx based Xeon CPUs: Square ILM with 80x80mm hole spacing and Narrow ILM with 56x94mm hole spacing.
The mounting system of the NH-U12DX i4/NH-D9DX i4 3U/NH-U9DX i4 is fully compatible with both types out of the box.
Can I make my cooler compatible with LGA20xx Narrow ILM?
These coolers can be made compatible with LGA20xx Narrow ILM with additional mounting parts:
The additional mounting parts needed can be requested free-of-charge via this order form on our website.
You've sent me additional mounting parts, how do I install my cooler on Narrow ILM?
For installation guidance, you can refer to the steps for Narrow ILM in the manual of the NH-U12DX i4.
